Summary of Contents for Exmark Lazer Z HP 465

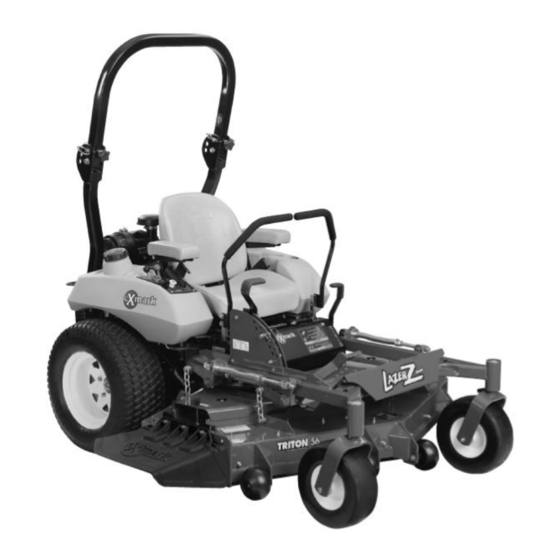

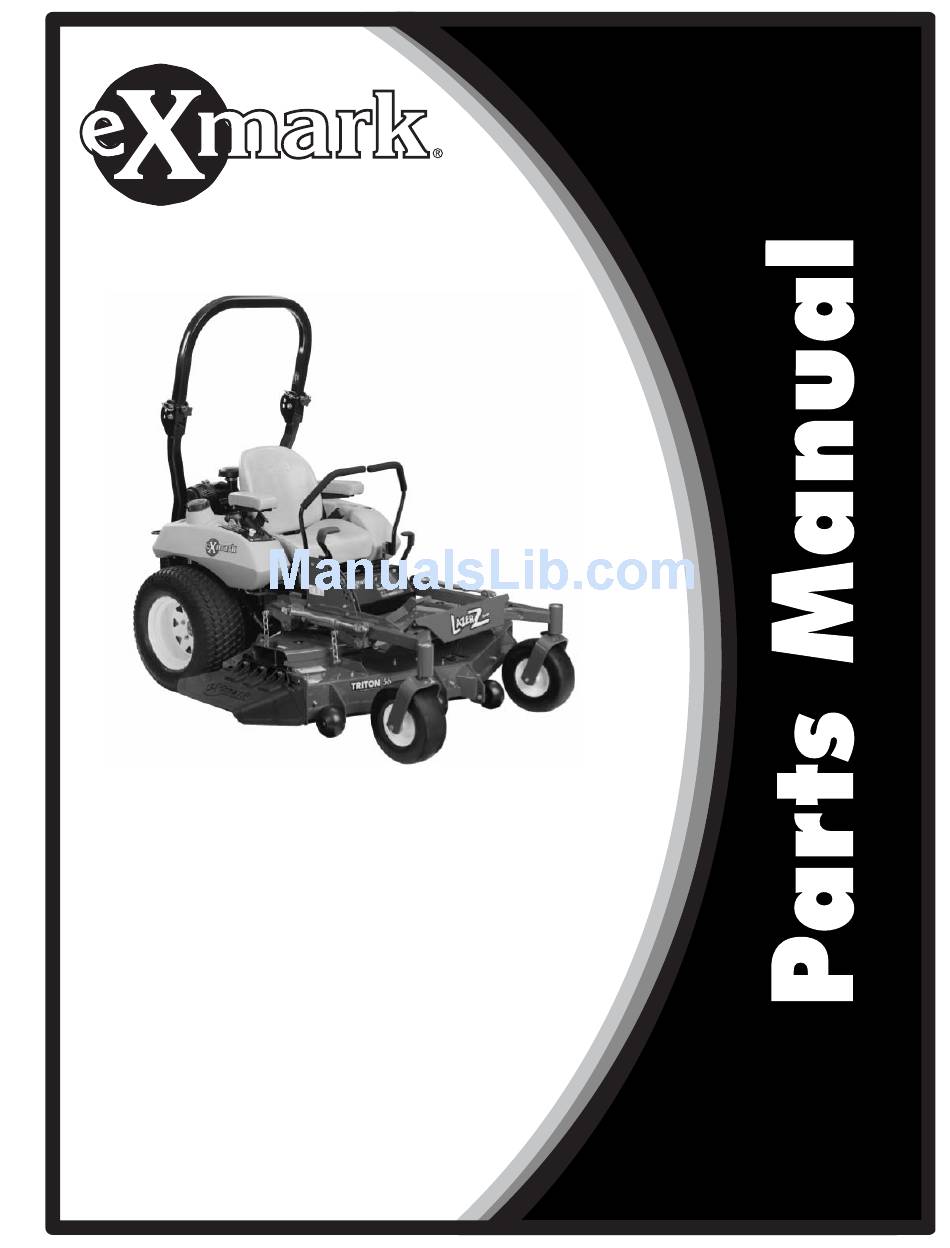

- Page 1 LAZER Z ® 465, 505, 565 MODELS For Serial Nos. 720,000 & Higher Part No. 4500-252 Rev. B...
-
Page 3: Table Of Contents
READ OPERATOR’S MANUAL BEFORE OPERATING OR SERVICING EXMARK EQUIPMENT. TABLE OF CONTENTS Description Page Decal Group ...21-22 Deck Group ...3-5 Electrical Diagram(s) ...23-24 Electrical Group ...19-20 Electrical Logic Schematic(s)...25-26 Engine Group ...17-18 Front Frame Group ...7-8 Fuel Group...11 Hydraulic Group ...15-16 Main Frame Group...9-10... -
Page 4: Deck Group
109-0096 Belt 56” ...1 Exmark red touch up paint (spray paint - P/N 1-850337 - .6 oz liquid bottle - P/N 103-9140). Complete deck assembly includes all items from pages 3 – 6. Kit also includes items #10 & #37. - Page 5 DECK GROUP - 4 -...
- Page 6 Chute, Discharge LHP ...1 109-0938-01 Hinge, Grass Discharge ...1 109-1181 Wld, Deck Strut-Std ...2 Exmark red touch up paint (spray paint - P/N 1-850337 - .6 oz liquid bottle - P/N 103-9140). DECK GROUP (cont.) Item Part No. Qty. 302-19...
-
Page 7: Spindle Assembly
109-5958 Screw, Hex Flange 1/2-20...3 Exmark red touch up paint (spray paint - P/N 1-850337 - .6 oz liquid bottle - P/N 103-9140). Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK465 (46”), MK505 (50”), and MK565 (56”). -
Page 8: Front Frame Group
1-653009 Spring, Deck Support...2 Exmark red touch up paint (spray paint - P/N 1-850337 - .6 oz liquid bottle - P/N 103-9140). Exmark black touch up spray paint – gloss black. Use Pro-Lock, Nut Type (P/N 1-840022, .5 ml tube) on spacer nut. - Page 9 FRONT FRAME GROUP - 8 -...
-
Page 10: Mainframe Group
Kit, Rops LHP...1 322-3 Screw, 5/16 –18 x 3/4...3 Exmark black touch up spray paint – gloss black. Not Illustrated. Includes ROPS fold pin plus hairpin item #40. Rollover protection frame is serviced as a complete assembly only. Includes complete ROPS frame, mounting hardware, fold pivot and locking hardware, seat frame assembly item #24, catch item #7, and seat belt assembly item #35. - Page 11 MAINFRAME GROUP - 10 -...
-
Page 12: Fuel Group
Item Part No. Description 1-303077 Clamp, Fuel Line...12 Part No. 2405010 Fuel Filter ...1 Kohler Part No. 49019-7001 Fuel Filter ...1 Kawasaki 109-2225 Hose, Fuel Line 20 1/2”...2 109-0275 Hose, Fuel Line 32”...1 1-603770 Valve, Fuel...1 109-0346 Cap, Fuel Tank ...2 103-2605 Fitting, Fuel Bulkhead W/Strainer ...2 103-2784... -
Page 13: Motion Control Group
Nut, 5/16-24 (LH) ...3 103-3066 Link, Pump Control ...2 3290-357 Nut, Whizlock 3/8-16...8 Exmark black touch up spray paint – gloss black. Not Illustrated. Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on setscrews. MOTION CONTROL GROUP Qty. Item Part No. -
Page 14: Park Brake Group
103-0374 Retainer, Brake Band...2 103-0384 Spacer ...6 322-9 Screw, 5/16-18 x 1 3/4 ...6 32151-48 Ring, Retaining ...1 Exmark black touch up spray paint – gloss black. Not Illustrated. PARK BRAKE GROUP Qty. Item Part No. 1-633144 3256-4 1-633454 323-4... - Page 15 PARK BRAKE GROUP - 14 -...
-
Page 16: Hydraulic Group
Key 5 x 5 x 25mm ...2 103-1802 Elbow, 90° ...2 1-603921 Boss O-Ring ...1 Exmark black touch up spray paint – gloss black. Use only for operation below 32°F (0°C). Use Pro-Lock, Nut Type (P/N 1-840022). HYDRAULIC GROUP Qty. - Page 17 HYDRAULIC GROUP - 16 -...
-
Page 18: Engine Group
Nut, Hex M6-1 (KOH)...2 1-603610 Washer, Disc Spring 7/16 ...2 Exmark black touch up spray paint – gloss black. Use a Teflon Pipe Sealant or equivalent on threads. Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on clutch bolt. Kohler Replacement Parts List (Refer to Engine Owner’s Manual) - Page 19 ENGINE GROUP - 18 -...
-
Page 20: Electrical Group
Plate ...4 1-816001 Fuse-20 Amp ...2 103-9260 Harness, Wiring ...1 1-303287 Plastic Tie, Small ...2 Exmark black touch up spray paint – gloss black. Use dielectric grease on all wiring harness connectors. KAWASAKI ELECTRICAL GROUP Qty. Item Part No. 1-543393 1-643275... - Page 21 Switch, Seat...1 1-633181 Plate ...4 1-816001 Fuse-20 Amp ...2 103-9259 Harness, Wiring ...1 Exmark black touch up spray paint – gloss black. Use dielectric grease on all wiring harness connectors. KOHLER ELECTRICAL GROUP Qty. Item Part No. 1-303287 1-543393 1-643275...
-
Page 22: Decal Group
103-2644 Decal, Exhaust System... 1 103-3142 Decal, LHP Model... 1 103-6340 Decal, Check Service ... 1 103-2882 Decal, Exmark Logo ... 1 109-2109 Decal, Triton 50” ... 1 109-2110 Decal, Triton 56” ... 1 109-1196 Decal, Ignition/PTO ... 1 103-4930 Decal, Choke ... -
Page 23: Decal Group
DECAL GROUP - 22 -... -
Page 24: Electrical Diagram(S)
KAWASAKI ELECTRICAL DIAGRAM - 23 -... -
Page 25: Electrical Diagram(S)
KOHLER ELECTRICAL DIAGRAM - 24 -... -
Page 26: Electrical Logic Schematic(S)
KAWASAKI ELECTRICAL LOGIC SCHEMATIC - 25 -... -
Page 27: Electrical Logic Schematic(S)
KOHLER ELECTRICAL LOGIC SCHEMATIC -26-... - Page 28 © 1997—2008 Exmark Mfg. Co., Inc. Industrial Park Box 808 Beatrice, NE 68310 All Rights Reserved Part No. 4500-252 Rev. B (402) 223-6300 Fax (402) 223-5489 Printed In USA.
