Page 1: Oven Parts

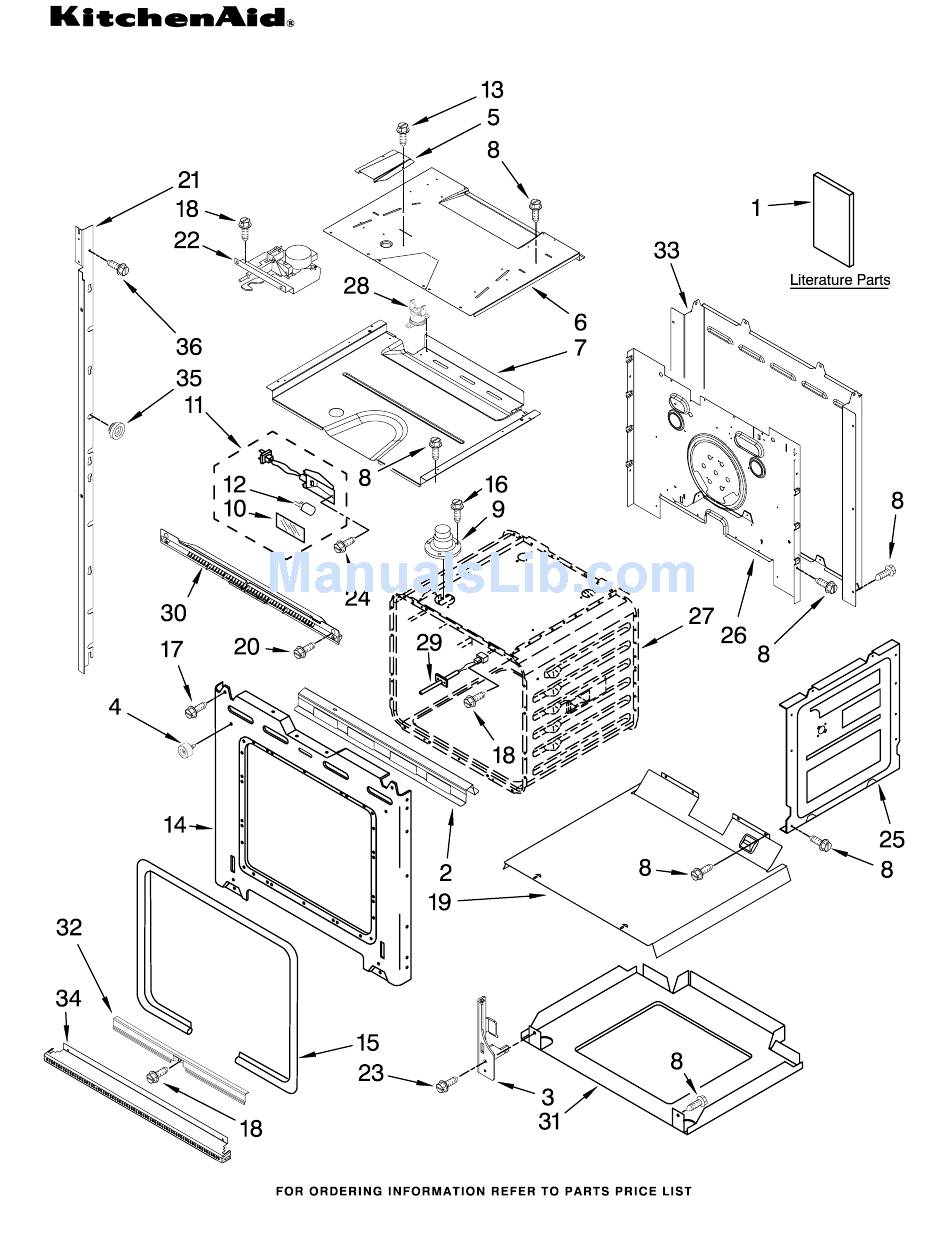

OVEN PARTS 27" BUILT−IN ELECTRIC DOUBLE OVEN For Models:KEBK276SBL00, KEBK276SWH00, KEBK276SSS00 (Black) (White) (Stainless) 3−07 Litho in U.S.A. (amd) Part No. W10129034 Rev. A... - Page 2 OVEN PARTS For Models:KEBK276SBL00, KEBK276SWH00, KEBK276SSS00 (Black) (White) (Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 8304304 Back, Chassis 4448972 Oven Light Literature Parts Liner, Oven Assembly 8304336 Installation (Not serviceable) 4452164 Bulb, Light Instructions 8304452 Thermal Fuse 105C 3400832 Screw (2) 8304323 Use &...
-
Page 3: Control Panel Parts
CONTROL PANEL PARTS For Models:KEBK276SBL00, KEBK276SWH00, KEBK276SSS00 (Black) (White) (Stainless) Illus. Part DESCRIPTION Panel, Control 8303717BL Black 8303717WH White 8303717SS Stainless 8303687 Support, Appliance Manager 8303797 Bracket, Control Panel 8304333 Keyboard, Glass Touch 5 W10118696 User Inferface 8303720 Backer, Control 8303887 Bracket, Enclosure (2) 4449154 Screw... -
Page 4: Oven Door Parts
OVEN DOOR PARTS For Models:KEBK276SBL00, KEBK276SWH00, KEBK276SSS00 (Black) (White) (Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 8304522 Bumper, Door Door Handle 8304361BL Bracket, Handle 8303990 Hinge, Door (2) 8303775BL Black Door Glass, 3196183 Screw 8303775WH White Assembly 8304580BL Vent, Door Top 8303775SS Stainless Lower Includes #17... - Page 5 INTERNAL OVEN PARTS For Models:KEBK276SBL00, KEBK276SWH00, KEBK276SSS00 (Black) (White) (Stainless) Illus. Part DESCRIPTION 8304586 Element, Broil Shield 9760774 Element, Broil 4449154 Screw 4448715 Rack, Oven 9760768 Element, Bake 4455036 Tray, Bake 4450039 Cover, Bake Tray 4449809 Screw W10129034...
- Page 6 TOP VENTING PARTS For Models:KEBK276SBL00, KEBK276SWH00, KEBK276SSS00 (Black) (White) (Stainless) Illus. Part DESCRIPTION 9752759 Relay (2) 8303514 Duct, Air Outlet 4449809 Screw 8303972 Blower, 60mm 9762052 Transformer, Lights 8285593 Connector, Cover 9760212 Transformr,Control 4450118 Nut 4449868 Block, Terminal 3400080 Screw 8303722 Vent, Control Panel Side, Control Top...
- Page 7 OPTIONAL PARTS (NOT INCLUDED) For Models:KEBK276SBL00, KEBK276SWH00, KEBK276SSS00 (Black) (White) (Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION PAINT, TOUCH−UP (1/2oz.) SPLICING WIRES−−25FT. WIRING HARNESS PARTS LENGTH 72017 White 8304102 Harness, Wire 261869 Cord Brown (Latch) 242828 Wire (12 Ga. 72032 Black 9762781 Harness,(Keyboard) 150 c Black)
