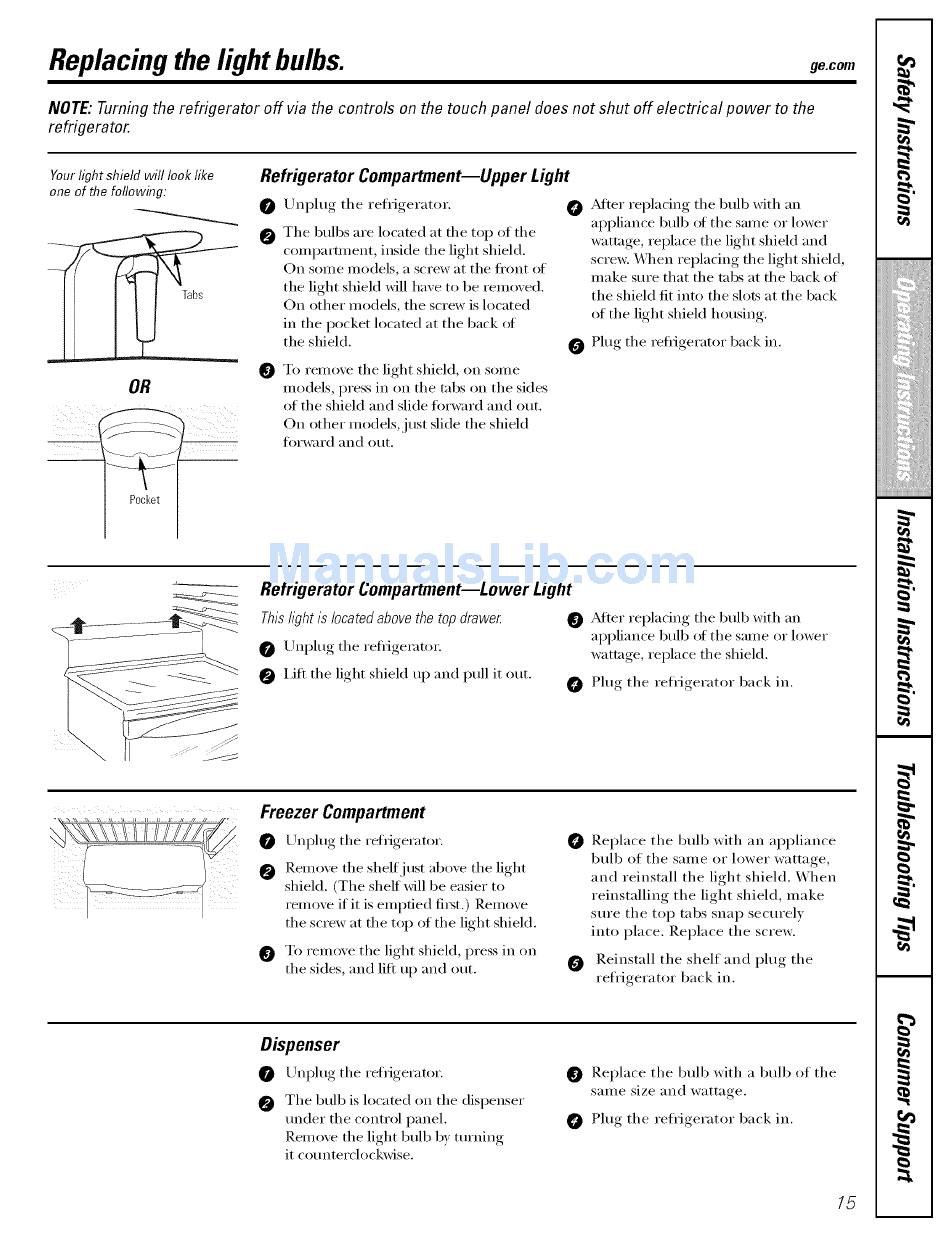

Replacing the light bulbs, gecom
NOTE: Turning the refrigerator off via the controls on the touch panel does not shut off electrical power to the
refrigerator.
Yourlight shield will look like
one of the following.
OR
i ii f .............. _ i
Pocket
Refrigerator Compartment--Upper Light
Unplug the refrigerator.
The bulbs are located at the top of the
compartn_ent, inside the light shield.
On some models, a screw at the fl'ont of
the light shield will have to be removed.
On other models, the screw is located
in the pocket located at the back ot
the shield.
@
To remove the light shield, on some
models, press in on the tabs on the sides
of the shield and slide fi)rward and out.
On other models,just slide the shield
fi)rward and out.
0
_Mter replacing the bulb with an
appliance bull) ot the same or lower
wattage, replace the light shieM and
screw. X,\]_en repladng the light shield,
make sure that the tabs at the back of
the shield fit into the slots at the back
of the light shield housing.
Plug the mfl'igerator back in.
Refrigerator Compartment--Lower Light
This hght is iocated above the top drawe_
Unplug the refiigemt(n:
i,ifl the light shiekl up and pull it out.
Mter replacing the bulb Mth an
appliance bulb of the Salne or lower
watta{m_, replace the shield.
Plug the refrigerator back in.
Freezer Compartment
Unplug the retiigerator.
Remove the shelf just above the light
shield. (The shelf will be easier to
remove if it is emptied fi_t.) Remove
the screw at the top of the light shield,
To remove the light shield, press in on
the sides, and lift up and out.
l_ Replace the bulb with an appliance
bulb of the same or lower wattage,
and reinstall the light shield. X,\'hen
reinstalling the light shield, make
sure the top tabs snap securelv
into place. Replace the screw.
Reinstall the shelf and plug the
refl'igerator back in.
Dispenser
Unplug the reti_igeratox:
The bulb is located on the dispenser
trader the control panel.
Remove the light bulb by turning
it cotmterclockwise.
Replace the bulb with a bulb of the
same size and wattage.
Plug the refrigerator back in.
