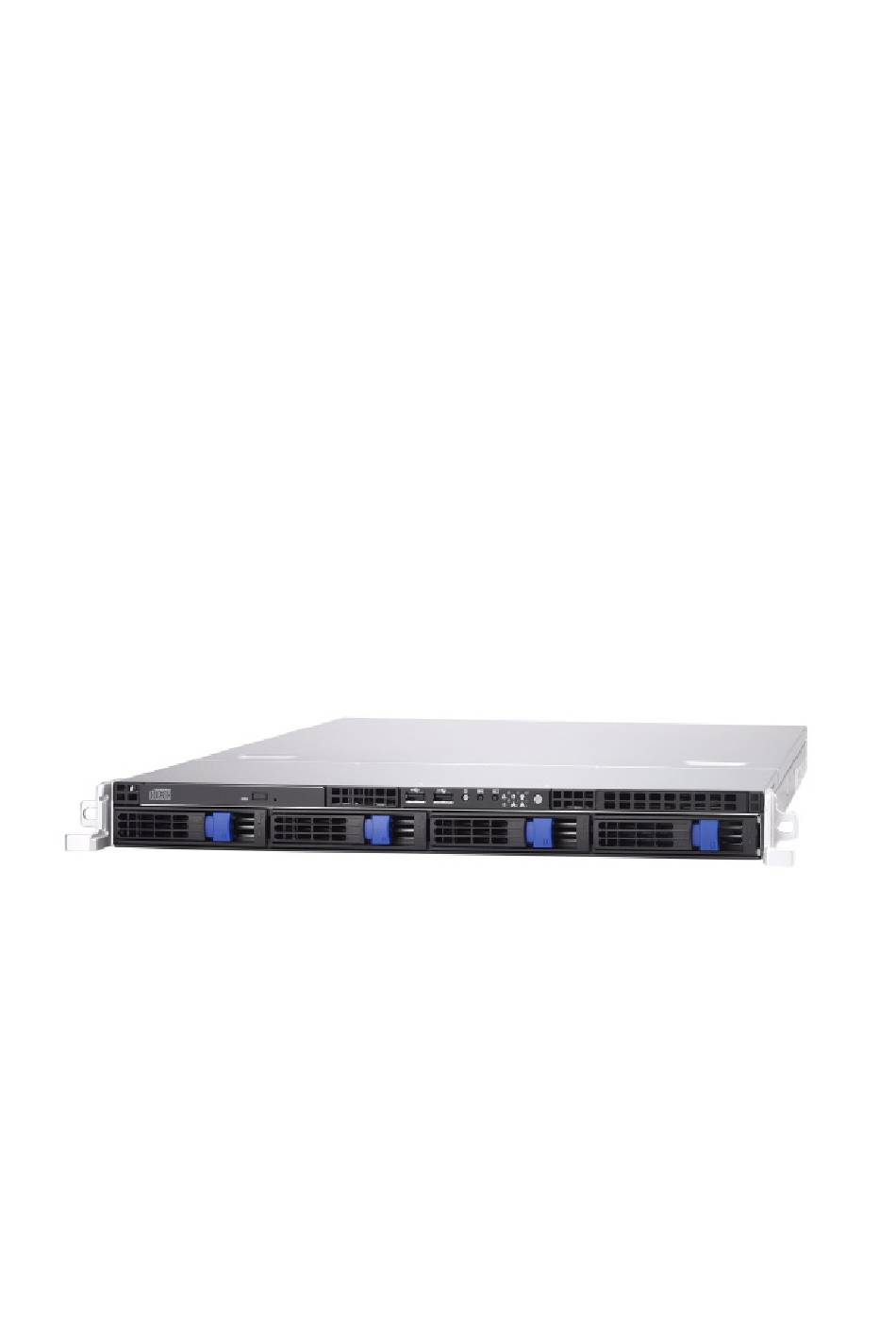

Tank GT20
B5211
Service Engineer's Manual

Advertisement

Table of Contents
loading

Related Manuals for TYAN Tank GT20 (B5211

Summary of Contents for TYAN Tank GT20 (B5211

  • Page 1 Tank GT20 B5211 Service Engineer’s Manual...

  • Page 3: Table Of Contents

    Table of Contents Chapter 1: Overview 1.1 About the Tank GT20 B5211…………………….……...…………… 1 1.2 Product Models…………………..……………………….………..1 1.3 Features……………………………………………………………….. 2 1.4 Standard Parts List……………….…….……..………......4 1.4.1 Box Contents……………………...……………………………. 4 1.4.2 Accessories…………………………………………………….. 5 1.5 Optional Parts………………………………………………………… 7 1.6 About the Product……….………………………..……....... 8 1.6.1 System Front View…………………………..………………….
  • Page 4 3.2 Disassembly Flowchart…………………………..…………………… 3.3 Removing the Cover……………………………..…….……………... 3.4 Replacing Motherboard Components……………..………………….. 3.4.1 Disconnecting All Motherboard Cables…………………... 3.4.2 Removing the Motherboard…………………………………….. 3.5 Replacing the Slim DVD-ROM……..…………………....... 3.6 Replacing the LED Control Board..…………………………………... 3.6.1 M1003 LED Control Board Features…………………....3.6.2 M1003 LED Control Board Connector Pin Definition..……..3.7 Replacing the M1012 Adapter Board…………………………....
  • Page 5 TYAN retains the right to make changes to product descriptions and/or specifications at any time, without notice. In no event will TYAN be held liable for any direct or indirect, incidental or consequential damage, loss of use, loss of data or other malady resulting from errors or inaccuracies of information contained in this document.
  • Page 6 Federal Communication Commission (FCC) Notice for the USA Compliance Information Statement (Declaration of Conformity Procedure) DoC FCC Part 15: This device complies with part 15 of the FCC Rules Operation is subject to the following conditions: This device may not cause harmful interference; This device must accept any interference received including interference that may cause undesired operation.
  • Page 7 About this Manual This manual provides you with instructions on installing your Tank GT20. This Manual is intended for experienced users and integrators with hardware knowledge of personal computers. This manual consists of the following parts: Chapter1: Provides an introduction to the GT20 B5211 barebones, packing list, describes the external components, gives a table of key component, and provides block diagrams of the system.
  • Page 8 SAFETY INFORMATION Before installing and using the Tank GT20, take note of the following precautions: – Read all instructions carefully. – Do not place the unit on an unstable surface, cart, or stand. – Do not block the slots and opening on the unit, which are provided for ventilation.

  • Page 9: Chapter 1: Overview

    IT environment but also offers a smooth path for future application usage. TYAN is also proud to deliver the Tank GT20 B5211 in SATAII flavor while supporting up to four hot-swappable SASA HDD, one slim DVD-ROM. The Tank GT20 B5211 uses TYAN’s latest tooling-made chassis featuring a robust...

  • Page 10: Features

    • Stacked PS/2 mouse & keyboard ports Motherboard • Stacked (2) USB 2.0 ports and • TYAN Toledo i3200R S5211 (RJ45 port for OPMA system board • (1) 15-pin VGA port • ATX footprint (12” x 9.6”) (305 • (1) 9-pin COM port x244m) •...
  • Page 11 • CE (Declaration of Conformity) • Chassis intrusion header • Temperature, voltage, and fan Environment Temperature monitoring • Operating temperature: 5°C ~ • Tyan SMDC M3295-2, M3296 IPMI 35°C v2.0 compliant Remote sever • Non-operating temperature: management kit (option ) -40°C ~ 70°C...

  • Page 12: Standard Parts List

    1.4.1 Box Contents Component Description TYAN S5211G2NR-1U Motherboard GT20 1U chassis, (4) hot-swap HDD bays 400W Single Power (2) System fans (40mm x 40mm x 56mm) (2) System fans (40mm x 40mm x 28mm) 1 x Air Duct...

  • Page 13: Accessories

    If any items are missing or appear damaged, contract your retailer or browse to TYAN’s website for service：http://www.tyan.com The Web site also provides information on other TYAN products, plus FAQs, compatibility lists, BIOS settings, and more. 1 x Tyan Motherboard Drive CD...
  • Page 14 Rail Kit Rear Front Sliding Brackets 4 x Mounting Bracket 2 x Front L-Bracket 2 x Rear L-Bracket Screws Kit 2 x Sliding Rails Chapter 1: Overview...

  • Page 15: Optional Parts

    Optional Parts Model Item Picture Quantity Description Number LCD Module Kit for CLCM-0040 Series Module Chassis SMDC IPMI M3295-2 Card SMDC IPMI Card M3296 SMDC IPMI M2 Card TF-PCI-E M2061 M2061 PCI-X Riser Card Riser Card Chassis Front Bezel for GT CFBZ-0070 Front Bezel Series 1U Chassis...

  • Page 16: About The Product

    About the product The following views show you the product. 1.6.1 System Front View 1.6.2 System Rear View Power Supply Socket PS/2 Mouse/ Keyboard Ports PCI-E Slot LAN Port (NIC3) ID LED LAN Port (NIC1) USB Port x 2 LAN Port (NIC2) Serial Port VGA Port Chapter 1: Overview...

  • Page 17: Led Definitions

    1.6.3 LED Definitions Front Panel Color State Description Green Power Power OFF Amber Blinking HDD/DVD access activity HDD Activity No disk activity Green Linked to LAN LAN1/LAN2 Linkage Green Blinking Accessing LAN No LAN link Fan failure & system intrusion Warning Normal Blue...
  • Page 18 Rear I/O LED Color State Description Green Linked to LAN RJ45 NIC1 Linkage Green Blinking Accessing LAN (Left Side) No LAN link Yellow Gigabit mode RJ45 NIC1 Mode Green 100M mode (Right Side) 10M mode Green Linked to LAN RJ45 NIC2 Linkage Green Blinking Accessing LAN...

  • Page 19: Motherboard Layout

    1.6.4 Motherboard Layout Chapter 1: Overview...

  • Page 20: Jumpers & Connectors

    1.6.5 Jumpers & Connectors Jumper/Connector Function COM2 (J19) COM2 Header FAN1/2/3/4/5/6 4-pin Fan Connector USB1 (JP7) / USB2 USB Front Panel Connector (JP2) TYFP1 (JP9) 18-pin Front Panel Connecto 12-pin Front Panel Connector TYFP2 (J22) (reserved for OEM only) LCM Connector (reserved for OEM only) IPMB (J4) IPMB Connector...

  • Page 21: System Block Diagram

    1.6.6 System Block Diagram Chapter 1: Overview...

  • Page 22: Internal View

    1.6.7 Internal View 1. Power Supply 5. System Fans 2. PCI-E slot 6. M1210 3. Memory Slots 7. Four SATA/SAS HDD Bays 4. CPU Sockets 8. M2083 (under the Air Duct) Chapter 1: Overview...

  • Page 23: Chapter 2: Setting Up

    Chapter 2: Setting Up 2.0.1 Before you Begin This chapter explains how to install the CPU, CPU heatsink, memory modules, and hard drives. Instructions on inserting a PCI-E card are also given. Take note of the precautions mentioned in this section when installing your system.

  • Page 24: Precautions

    2.0.4 Precautions Components and electronic circuit boards can be damaged by discharges of static electricity. Working on a system that is connected to a power supply can be extremely dangerous. Follow the guidelines below to avoid damage to the Tank GT20 B5211 or injury to yourself.

  • Page 25: Installing Motherboard Components

    Installing Motherboard Components This section describes how to install components on to the motherboard, including CPU, memory modules, and Epansion card. 2.1.1 Removing the Chassis Cover Follow these instructions to remove the Tank GT20 chassis cover. Remove the screw on the back side as shown in the small diagram.

  • Page 26: Installing The Cpu, Heatsink And Air Duct

    2.1.2 Installing the CPU, Heatsink, and Air Duct Follow these instructions on install CPU, CPU heatsink，and the air duck. Release the pre-installed air duct. Locate the CPU socket. Remove the cover on the CPU socket cap. Locate the lever of CPU socket. Chapter 2: Setting Up...
  • Page 27 Press and pull the lever in the direction as illustrated. 5. Open the socket in the direction as illustrated. 6. Place CPU on the socket, ensuring that the edge with tri- angle mark aims at the edge of socket with triangle mark. Chapter 2: Setting Up...
  • Page 28 7. Close the cover and secure the CPU socket in the direc- tion shown. Secure the heatsink with 4 screws. NOTE: Remember to install the washer and nut while installing the screws. Secure the air duct with 2 screws. Chapter 2: Setting Up...

  • Page 29: Installing The Memory

    Installing the Memory 2.1.3 Follow these instructions to install the memory modules on the motherboard. Locate the memory slots on the motherboard. Press the memory slot locking levers in the direction of the arrows as shown in the following illustration. Align the memory module with the slot.

  • Page 30: Installing The Expansion Card

    Installing the Expansion Card 2.1.4 Follow these instructions to install a expansion card. Push the tab of PCI-E slot on the rear panel in the direction as shown to release the bracket. Move the bracket to right as shown and then take off the bracket (A).

  • Page 31: Installing The Hard Drive

    2.1.5 Installing the Hard Drive The Tank GT20 barebone system supports Serial ATA hard drives. Follow these instructions to install a SATA hard drive. Press the locking lever latch in the direction of arrow (A) and then pull the locking lever open (B). Slide the drive tray out.
  • Page 32 Place a hard drive into the drive tray. Use 6 HDD screws to secure the HDD. Reinsert the drive tray into the chassis (A), ensuring that the drive tray is completely inserted into the chassis (B). Press the locking lever to secure the hard drive tray. Chapter 2: Setting Up...

  • Page 33: Rack Mounting

    Rack Mounting After installing the necessary components, the Tank GT20 can be mounted in a rack using the supplied rack mounting kit. Rack mounting kit Sliding Rails x 2 Sliding Bracket x 4 (Front x 2, Rear x 2) Mounting Ears(including screws) x 2 Screws Kit x 1 Mounting Brackets x 4 2.2.1...
  • Page 34 2.2.1.1 Installing the inner Rails to the Chassis Screw the mounting ear to each side of Tank GT20 as shown using 2 screws from the supplied screws kit. Draw out the inner rails from rail assembly. Install inner rails to left and right sides of chassis using 1 M4-4L (A) screw for each side.
  • Page 35 2.2.1.2 Installing the Outer Rails to the Rack Measure the distance between inner side of the front and rear mounting brackets in the rack. Locate the front and rear brackets. Rear Bracket x 2 Front Bracket x 2 Secure the front bracket to outer rail with 2 M4-4L(A) screws. Chapter 2: Setting Up...
  • Page 36 Reserve the distance same as in Step 1 on rear bracket. Secure the rear bracket to outer rail with 2 M4-4L (A) screws. Secure the outer rail to the rack using 2 brackets and 4 M5-8L (B) screws for each side. Secure the mounting brackets from inside, not outside, of the rack.

  • Page 37: Rack Mount Instructions

    Rack Mount Instructions 2.2.2 1. Draw out the middle rail to the latch position. 2. Lift the chassis and then insert the inner slide rails into the middle rails. Push the chassis in and press the latch key (A). Then push the whole system into the rack (B).
  • Page 38 Secure the mounting ears of chassis to the rack with 2 M5-15L (C) screws. NOTE: To avoid injury, it is strongly recommended that two people lift the Tank GT20 into the place while a third person screws it to the rack. Chapter 2: Setting Up...

  • Page 39: Chapter 3: Replacing Pre-Installed Components

    Chapter 3: Replacing Pre-Installed Components Introduction This chapter explains how to replace pre installed components including the motherboard, LED control board, HDD, and DVD-ROM drive. Take note of the precautions in this section when installing your system. Work Area 3.1.1 Make sure you have a stable, clean working environment.

  • Page 40: Precautions

    Precautions 3.1.3 Components and electronic circuit boards can be damaged by discharges of static electricity. Working on a system that is connected to a power supply can be extremely dangerous. Follow the guidelines below to avoid damage to the Tank GT20 or injury to yourself.

  • Page 41: Disassembly Flowchart

    Disassembly Flowchart The following flowchart outlines the disassembly procedure. Chapter 3: Replacing Pre-Installed Components...

  • Page 42: Removing The Cover

    Removing the Cover Before replacing any parts you must remove the chassis cover. Follow these instructions to remove the cover of the Tank GT20 chassis cover. Remove the screw on the back side as shown in the small diagram. Then slide the chassis cover in the direction of arrow.

  • Page 43: Replacing Motherboard Components

    Replacing Motherboard Components Follow these instructions to replace motherboard components, including the motherboard. Disconnecting All Motherboard Cables 3.4.1 Before replacing the motherboard or certain components, remove cables connected to the motherboard. Follow these instructions to remove all motherboard cabling. 1. Disconnect all power cables. 2.

  • Page 44: Removing The Motherboard

    Removing the Motherboard 3.4.2 Follow these instructions to remove the motherboard from the when all add-on components have been removed. chassis Release the two screws securing the link bar. move the link bar. Remove the nine screws securing the motherboard to the chassis.

  • Page 45: Replacing The Slim Dvd-Rom

    Replacing the Slim DVD-ROM Follow these instructions to replace the DVD-ROM. Remove power and data cables from the slim DVD-ROM adapter. Press the tab in the directions as shown to release the DVD-ROM drive. Free the DVD-ROM drive from the drive bay after pressing the tab.
  • Page 46 4. Remove the two screws that secure DVD-ROM drive to the bracket. Replace the DVD-ROM drive. Secure DVD-ROM to the bracket using two screws. Then replace the unit into the drive bay and connect the DVD-ROM power and data cables as in step1. Chapter 3: Replacing Pre-Installed Components...

  • Page 47: Replacing The Led Control Board

    Replacing the LED Control Board Follow these instructions to replace the LED control board. Remove the two screws securing the LED control board unit to the chassis. Pull the LED control board free from the chassis and unplug the ribbon and USB cables from the connector. Remove three screws securing LED control board to the bracket.

  • Page 48: M1003 Led Control Board Features

    Lift the LED control board free from the chassis. After replacement, insert and secure the unit to the chassis following the reverse procedures from step 1~3. M1003 LED Control Board Features 3.6.1 Chapter 3: Replacing Pre-Installed Components...

  • Page 49: M1003 Led Control Board Connector Pin Definition

    M1003 LED Control Board Connector Pin Definition 3.6.2 J1 USB Connector Definition Definition VCC5 VCC5 USB1- USB0- USB1+ USB0+ KEY PIN J2 Front Panel Connector Definition Definition HDLED+ HDLED- RESET+ RESET- PW_LED+ PW_LED- WLED+ WLED- OCJ_SMBDAT ICH_SMBCLK EXT_INT VOLTAGE5 V5SB INTRU# PWR_SW+ PWR_SW-...

  • Page 50: Replacing The M1012 Adapter Board

    Replacing the M1012 Adapter Board Before replacing M1012 adapter board, you must discon- nect the four SATA cables connected to the SATA back- plane. After that, disconnect all the cables connected to the M1012 adapter board. Remove the Front Panel, LAN/ID LED and Fan Tach cables.
  • Page 51 Remove one power cable connected to M1012 adapter board and two power cables connected to SATA back- plane. 5. Remove the 6 screws securing the M1012 adapter board. After that, you can release the M1012 adapter board from the chassis. Chapter 3:Replacing Pre-Installed Components...

  • Page 52: M1012 Adapter Board Features

    M1012 Adapter Board Features 3.7.1 Chapter 3: Replacing Pre-Installed Components...

  • Page 53: M1012 Adapter Board Connector Pin Definitions

    M1012 Adapter Board Connector Pin Definitions 3.7.2 J1 TYFP Front Panel Connector Definition Definition HDLED+ PW_LED+ HDLED - PW_LED - RESET - PWR_SW+ RESET+ PWR_SW - VOLTAGE5 WLED+ EXT_INT WLED - V5SB KEY PIN ICH SMBDAT ICH_SMBCLK INTRU# J2 TYFP Front Panel Connector Definition Definition HDLED+...
  • Page 54 J3 LAN/ID LED Connector Definition Definition LAN1_LED+ LAN1_LED- LAN2_LED+ LAN2_LED- LAN3_LED+ LAN3_LED- ID LED+ ID LED- ID SW+ ID SW- KEY PIN FAN Signal Related Connector Pin Definitions NOTE: The FAN signal naming is based on HW circuit design only. It might be different from the system fan naming.
  • Page 55 J13 Fan TACH Connector Definition Definition FAN1_TACH FAN2_TACH FAN3_TACH KEY PIN J14 Fan TACH Connector Definition Definition FAN1_TACH FAN2_TACH FAN3_TACH FAN4_TACH FAN5_TACH FAN6_TACH FAN7_TACH FAN8_TACH FAN9_TACH FAN10_TACH KEY PIN J6 Fan Connector Definition FAN1 12VPWM FAN1_TACH FAN2_TACH FAN2 12VPWM Chapter 3:Replacing Pre-Installed Components...
  • Page 56 J10 Fan Connector Definition FAN3 12VPWM FAN3_TACH FAN4_TACH FAN4 12VPWM J11 Fan Connector Definition FAN5 12VPWM FAN5_TACH FAN6_TACH FAN6 12VPWM J9 Fan Connector Definition FAN7 12VPWM FAN7_TACH FAN8_TACH FAN8 12VPWM J5 Fan Connector Definition FAN9 12VPWM FAN9_TACH FAN10_TACH FAN10 12VPWM Chapter 3: Replacing Pre-Installed Components...
  • Page 57 J15 & J16 LCM Connectors Definition Definition LCM +5V LCM_SIN KEY PIN LCM +5VSB LCM_SOUT JP1 Fan Input Select Connector Definition Pin1 & Pin2 Close Fan PWM signal from J8 Fan PWM signal from J4,J7 Pin2 & Pin3 Close & J14 (Default) JP2 Fan Input Select Connector Definition Pin1 &...

  • Page 58: Replacing The Sata Backplane (M1208-3-Sn)

    Replacing the SATA Backplane (M1208-3-SN) 1. After removing the M1012 adapter board, you can easily grab the two lables to lift the SATA backplane. 2. Remove the ten screws that secure the bracket to the backplane. 3. Release the backplane free from the bracket. Replace the unit to the chassis following the reverse pro- cedures from step 1 to 3 after done.

  • Page 59: Sata Backplane (M1208-3-Sn) Features

    SATA Backplane (M1208-3-SN) Features 3.8.1 Chapter 3:Replacing Pre-Installed Components...
  • Page 60 Chapter 3: Replacing Pre-Installed Components...

  • Page 61: Replacing The System Fan

    Replacing the System FAN Follow these instructions to replace the cooling fans in your system. 1. Locate the fan connector on the motherboard and unplug the fan cable. 2. Take the fan away from the chassis. 3. Replace the fan into the chassis following the reverse procedures from 1 to 2 after done.

  • Page 62: Replacing The Power Supply

    Replacing the Power Supply 3.10 1. Remove the two screws that secure the power supply to the chassis. 2. Remove the screw that secure the fan assembly to the chassis Chapter 3: Replacing Pre-Installed Components...

  • Page 63: Appendix I: Bios Differences

    Appendix I: BIOS Differences The BIOS of B5211 is similar to S5211 while there are some menus different. The following table displays the differences in BIOS between B5211 and S5211. For a complete review of S5211 BIOS, refer to the motherboard manual. S5211 Advanced Hardware Health Information Phoenix BIOS Setup Utility Main...
  • Page 64 B5211 Advanced Hardware Health Information Phoenix BIOS Setup Utility Main Advanced Power Boot Exit Hardware Monitor Item Specific Help Voltage Monitoring System Fan1 System Fan2 System Fan3 System Fan4 System Fan5 System Fan6 CPU Temp. = Ambient1 Temp = Ambient2 Temp = Ambient3 Temp = FAN Fail LED Indicator [Enabled]...

  • Page 65: Appendix Ii: Cable Connection Tables

    Appendix II: Cable Connection Tables SATA Cables Table 1: B5211 Connect to Motherboard HDD 1 → SATA 1 → HDD 2 SATA 2 → HDD 3 SATA 3 → HDD 4 SATA 4 FAN Cables Table 2: System Fan to M1012 Adapter Board Connect to Motherboard Fan 1...
  • Page 66 Power Supply Cables Table 3: Power Supply to Motherboard Power Supply Connect to Motherboard → P1 24-pin power supply PW1 24-pin connector → P2 8-pin power supply PW2 8-pin connector M1208-3-SN SATA → P5 4-pin power supply backplane 4-pin connector M1012 adapter board 4-pin →...
  • Page 67 Appendix III: Installing the SMDC Card The following illustrations provide you with the information on installing SMDC card. You may refer to the following for installing M3295-2 or M3296 on the Motherboard. Two kinds of SMDC Cards (M3295-2 / M3296) M3295-2 M3296 Press the slot locking levers in the direction of the arrows as...
  • Page 68 Press the SMDC card until the slot locking levers lock automatically onto the indentations at the ends of the module.
  • Page 69 Appendix IV: FRU Parts Table GT20-B5211 FRU Parts Item Model Number Part Number Picture Quantity Description S5211G2NR-1U Single Motherboard S5211G2NR-1U Kentsfield/Yorkfield/Conroe/Wolfdale Motherboard Chassis Unit CCHA-0082 432772300001 GT20 1U Chassis for B5211 Chassis Top Cover CCCV-0140 340772300001 GT20 Top Cover Chassis Front Bezel CFBZ-0070 541273910008 Front Bezel for GT20 Series 1U Chassis...
  • Page 70 Item Model Number Part Number Picture Quantity Description M1003-ID-RS 541174620001 Front Control Board M1012-RS Fan Adaptor Board M1208-3-SN SAS/SATA 4-Port Backplane PCBA M2083-RS PCI-E X16 1U Riser Card M2061 TF-PCI-E to PCI-X 1U Riser Card M3295-2 SMDC IPMI Card M2 level M3296 SMDC IPMI Card M3 level CPU Backplane...
  • Page 71 332810000280 A/C Power Cord, US Type, 2440mm CCBL-0300 332810000281 A/C Power Cord, EU Type, 1800mm CCBL-0600 422739100028 LCD Module Cable, 300mm (Note: The table is subject to change without notice. Please visit our Web site at http://www.tyan.com for latest update.)

  • Page 72: Technical Support

    (which can have expensive consequence). If these options are not available for you then TYAN Computer Corporation can help. Besides designing innovative and quality products for over a decade, TYAN has continuously offered customers service beyond their expectations.
  • Page 73 TYAN will pay to have the board shipped back to you. TYAN Tank GT20-B5211 User’s Manual v1.01 Document part No. : D1956 - 101...
