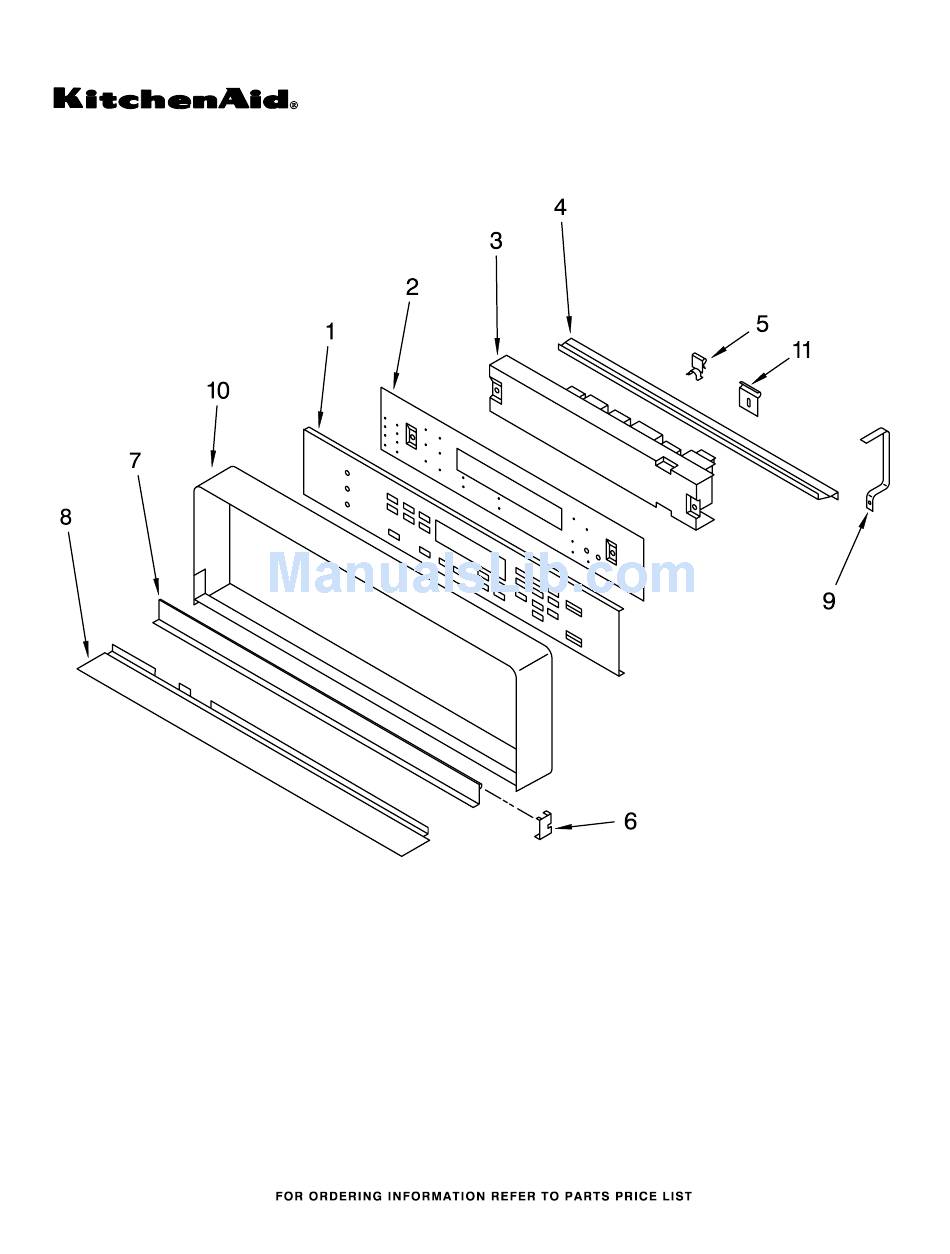

- Page 1 CONTROL PANEL PARTS SUPERBA 27" BUILT−IN ELECTRIC For Models: KEBS277BBL3, KEBS277BAL3, KEBS277BWH3 DOUBLE OVEN Convection Upper (Black) (Almond) (White) Self Clean Lower 1−96 Litho in U.S.A.(rmb) Part No. 885791...
-
Page 2: Control Panel Parts
CONTROL PANEL PARTS For Models: KEBS277BBL3, KEBS277BAL3, KEBS277BWH3 (Black) (Almond) (White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Door, Latch Handle NOTE: The screws and nuts LITERATURE PARTS 3182151 Black required to attach a part are 3182157 Almond listed immediately following LIT3185962 Tech Sheet 3182154 White... - Page 3 UPPER OVEN PARTS For Models: KEBS277BBL3, KEBS277BAL3, KEBS277BWH3 (Black) (Almond) (White) 885791...
- Page 4 UPPER OVEN PARTS For Models: KEBS277BBL3, KEBS277BAL3, KEBS277BWH3 (Black) (Almond) (White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 3179848 Clip, Oven Seal NOTE: The screws and nuts 3179587 Retainer, Seal 3177681 Bracket, Switch required to attach a part are 4159450 Screw (2) 3177923 Insulator, Switch listed immediately following...
- Page 5 LOWER OVEN PARTS For Models: KEBS277BBL3, KEBS277BAL3, KEBS277BWH3 (Black) (Almond) (White) 885791...
- Page 6 LOWER OVEN PARTS For Models: KEBS277BBL3, KEBS277BAL3, KEBS277BWH3 (Black) (Almond) (White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION NOTE: The screws and nuts 3179587 Retainer, Seal 3177433 Bracket, Hinge (2) required to attach a part are 4159450 Screw (2) 3179795 Screw (6) listed immediately following 4168203 Cover, Cap Tube...
- Page 7 UPPER AND LOWER OVEN DOOR PARTS For Models: KEBS277BBL3, KEBS277BAL3, KEBS277BWH3 (Black) (Almond) (White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 3185458 Glass, Reflective 3185438 Plate, Latch NOTE: The screws and nuts Glass, Door Frame, Door required to attach a part are 3187863 Black Model 3187850 Black Model listed immediately following...
- Page 8 INTERNAL OVEN PARTS For Models: KEBS277BBL3, KEBS277BAL3, KEBS277BWH3 (Black) (Almond) (White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 3150144 Meat Probe 3185368 Rack, Oven NOTE: The screws and nuts 3180815 Cover, Fan 661416 Element, Bake required to attach a part are 3185648 Screw (4) 3185648 Screw (2) listed immediately following...
- Page 9 LATCH AND VENT PARTS For Models: KEBS277BBL3, KEBS277BAL3, KEBS277BWH3 (Black) (Almond) (White) 885791...
- Page 10 LATCH AND VENT PARTS For Models: KEBS277BBL3, KEBS277BAL3, KEBS277BWH3 (Black) (Almond) (White) Illus. Part DESCRIPTION NOTE: The screws and nuts required to attach a part are listed immediately following that part. 3183748 Module, Top 258076 Block, Terminal 308043 Screw Switch, Latch 3178668 Upper Oven 3183784 Lower Oven 98106 Screw...
-
Page 11: Wiring Harness Parts
WIRING HARNESS PARTS For Models: KEBS277BBL3, KEBS277BAL3, KEBS277BWH3 (Black) (Almond) (White) Illus. Part DESCRIPTION 3187607 Harness Wire (Door Switch Upper Light) 3183656 Harness Wire (Door Switch Lower Light) 3185950 Harness Wire (Lower Oven) 3185949 Harness Wire (Upper Oven) 3179668 Standoff, Wire 3185647 Screw 112432 Nut, Hex (3) 4159037 Clamp, Wire...
