- Page 1 CABINET PARTS REFRIGERATOR For Models: KSCK25FVWH00, KSCK25FVBL00, KSCK25FVSS00, KSCK25FVMS00 (White) (Black) (Stainless Steel) (Monochromatic Stainless) 4−11 Printed In U.S.A. (jdc) (bay) Part No. W10218231 Rev. A...
-

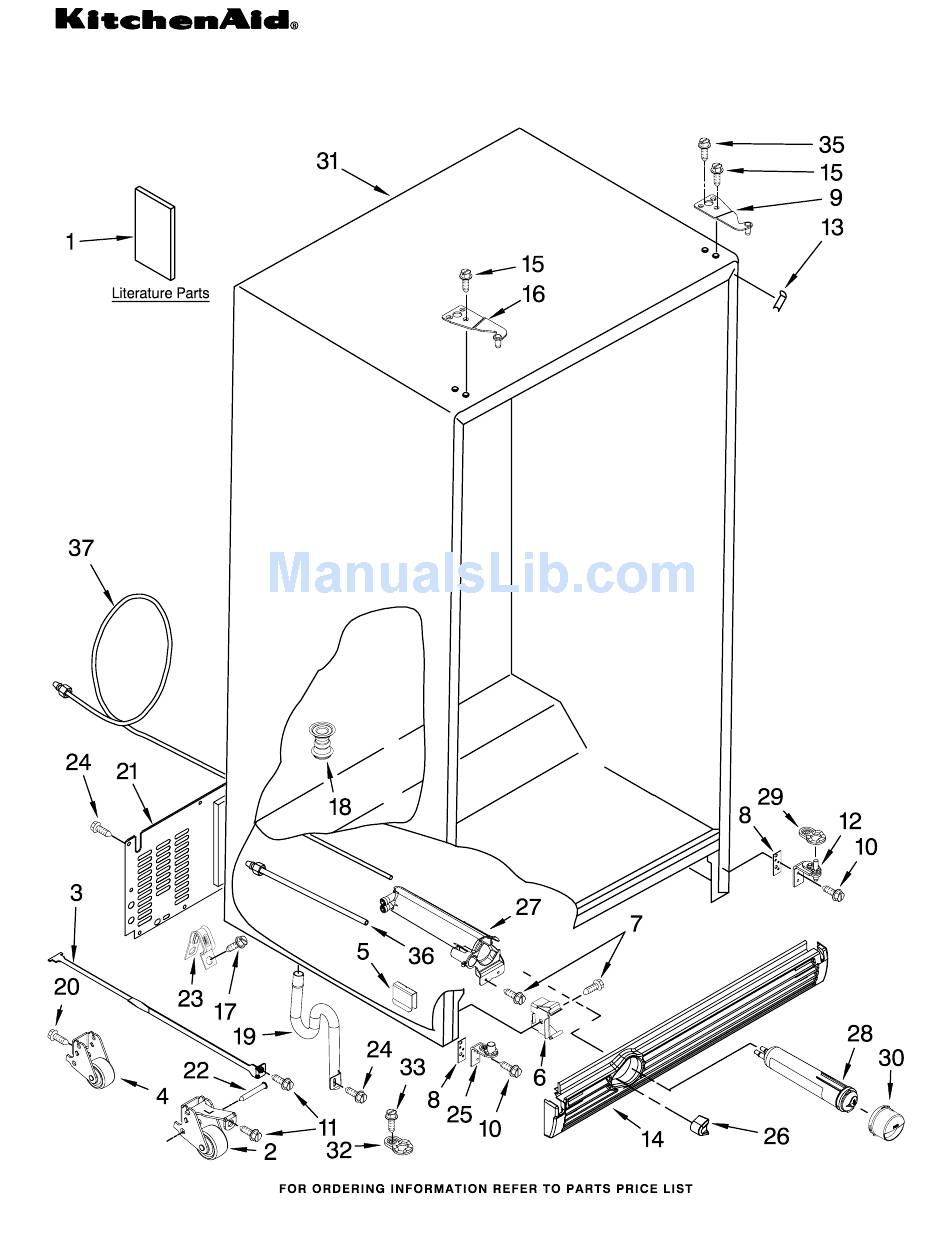

Page 2: Cabinet Parts
CABINET PARTS For Models: KSCK25FVWH00, KSCK25FVBL00, KSCK25FVSS00, KSCK25FVMS00 (White) (Black) (Stainless Steel) (Monochromatic Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 489084 Screw 2307179 Hinge Assembly, Literature Parts 2307152 Hinge Assembly, Bottom−RC W10168296 Use & Care Guide Bottom−FC (Includes #29) W10203129 Service &... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: KSCK25FVWH00, KSCK25FVBL00, KSCK25FVSS00, KSCK25FVMS00 (White) (Black) (Stainless Steel) (Monochromatic Stainless) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2223524 Escutcheon, Meat Pan Control 2223339 Slide, Meat Pan Control 1118894 Switch, Rocker 2188820 Thermistor 2223456 Ladder, Shelf (2) 2301234 Housing, Door Control 489084 Screw... -
Page 4: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSCK25FVWH00, KSCK25FVBL00, KSCK25FVSS00, KSCK25FVMS00 (White) (Black) (Stainless Steel) (Monochromatic Stainless) Illus. Part DESCRIPTION 2224061 Shelf Assembly, Cantilever (2) 2301025 Button, Humidity 2301026 Slide, Humidity 2301117 Gasket, Side (2) 2203027 Cover, Meat Pan (Includes Items 13, 14, 15 & 20) 6 W10165556 Snack Pan Glide Assembly, Crisper Pan... -
Page 5: Freezer Liner Parts
FREEZER LINER PARTS For Models: KSCK25FVWH00, KSCK25FVBL00, KSCK25FVSS00, KSCK25FVMS00 (White) (Black) (Stainless Steel) (Monochromatic Stainless) W10218231... - Page 6 FREEZER LINER PARTS For Models: KSCK25FVWH00, KSCK25FVBL00, KSCK25FVSS00, KSCK25FVMS00 (White) (Black) (Stainless Steel) (Monochromatic Stainless) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 2223777 Spacer, Slide (2) 2196483 Stud Assembly 2223691 Basket, Deep (2) 8281158 Screw 2223500 Shelf Assembly, Cantilever (2) 2224053 Front, Basket Shelf Track 2223787 Right Side...
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: KSCK25FVWH00, KSCK25FVBL00, KSCK25FVSS00, KSCK25FVMS00 (White) (Black) (Stainless Steel) (Monochromatic Stainless) W10218231... - Page 8 MOTOR AND ICE CONTAINER PARTS For Models: KSCK25FVWH00, KSCK25FVBL00, KSCK25FVSS00, KSCK25FVMS00 (White) (Black) (Stainless Steel) (Monochromatic Stainless) Illus. Part DESCRIPTION 2223317 Ice Bin 2317256 Crusher Bin 2317240 Auger 2258220 Washer 1119007 Spacer, Flat (4) 2317248 Cover, Crusher 2257024 Blade, Rotary 1119005 Spacer, Step (2) 2257020 Blade, Fixed 2257023 Blade, Rotary...
-
Page 9: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSCK25FVWH00, KSCK25FVBL00, KSCK25FVSS00, KSCK25FVMS00 (White) (Black) (Stainless Steel) (Monochromatic Stainless) W10218231... - Page 10 REFRIGERATOR DOOR PARTS For Models: KSCK25FVWH00, KSCK25FVBL00, KSCK25FVSS00, KSCK25FVMS00 (White) (Black) (Stainless Steel) (Monochromatic Stainless) Illus. Part DESCRIPTION Refrigerator Door (Includes #7) W10128340 White W10128342 Black 2307198S Stainless Steel 2307198SAP Monochromatic Stainless 2203087K Trim, Shelf 2255421 Dairy Door 2223883 Caddy, Can 2219698 Stud, Handle Door Gasket, Magnetic...
-
Page 11: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSCK25FVWH00, KSCK25FVBL00, KSCK25FVSS00, KSCK25FVMS00 (White) (Black) (Stainless Steel) (Monochromatic Stainless) W10218231... - Page 12 FREEZER DOOR PARTS For Models: KSCK25FVWH00, KSCK25FVBL00, KSCK25FVSS00, KSCK25FVMS00 (White) (Black) (Stainless Steel) (Monochromatic Stainless) Illus. Part DESCRIPTION Freezer Door (Includes #8 And Dispenser Front Parts) W10196041W White W10196041B Black W10196041SB Stainless Steel W10196041S Monochromatic Stainless Handle (Includes #6) 2319727W White 2319727B Black 2319727S Stainless Steel 2219698 Stud, Handle...
-
Page 13: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: KSCK25FVWH00, KSCK25FVBL00, KSCK25FVSS00, KSCK25FVMS00 (White) (Black) (Stainless Steel) (Monochromatic Stainless) W10218231... - Page 14 DISPENSER FRONT PARTS For Models: KSCK25FVWH00, KSCK25FVBL00, KSCK25FVSS00, KSCK25FVMS00 (White) (Black) (Stainless Steel) (Monochromatic Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Lever, Ice Bezel, Disp Housing, Dispenser Dispenser W10136850 White (Not Serviced) 2180259 White W10136851 Black 3196537 Screw 2180261 Black W10139842 Stainless 2194719 Retainer, Levers...
-
Page 15: Air Flow Parts
AIR FLOW PARTS For Models: KSCK25FVWH00, KSCK25FVBL00, KSCK25FVSS00, KSCK25FVMS00 (White) (Black) (Stainless Steel) (Monochromatic Stainless) Illus. Part DESCRIPTION 2182120 Fan Scroll 2223733 Retainer, Fan Motor 2223298 Air Scoop 2223303 Air Duct, Upper 2223297 Air Duct Freezer 2321799 Bi−Metal, Defrost 2259385 Fan Motor 2169142 Fan Blade 2304241 Gasket, Evaporator Cover (2) -
Page 16: Control Parts
CONTROL PARTS For Models: KSCK25FVWH00, KSCK25FVBL00, KSCK25FVSS00, KSCK25FVMS00 (White) (Black) (Stainless Steel) (Monochromatic Stainless) Illus. Part DESCRIPTION 2223882 Heat Shield Asm (Includes #3) 2223506 Light Lens, Control Box 2223857 Light Socket 2326255 Light Bulb W10218231... -
Page 17: Unit Parts
UNIT PARTS For Models: KSCK25FVWH00, KSCK25FVBL00, KSCK25FVSS00, KSCK25FVMS00 (White) (Black) (Stainless Steel) (Monochromatic Stainless) W10218231... - Page 18 UNIT PARTS For Models: KSCK25FVWH00, KSCK25FVBL00, KSCK25FVSS00, KSCK25FVMS00 (White) (Black) (Stainless Steel) (Monochromatic Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2188823 Evaporator 777070 Screw Following Parts Not Illustrated 2161324 Clamp 2 W10139483 Fan, Blade 2188874 Fan, Motor 3 W10131059 Condenser and Optional Parts Not Included 2223398 Tray, Evaporator...
-
Page 19: Icemaker Parts
ICEMAKER PARTS For Models: KSCK25FVWH00, KSCK25FVBL00, KSCK25FVSS00, KSCK25FVMS00 (White) (Black) (Stainless Steel) (Monochromatic Stainless) W10218231... - Page 20 ICEMAKER PARTS For Models: KSCK25FVWH00, KSCK25FVBL00, KSCK25FVSS00, KSCK25FVMS00 (White) (Black) (Stainless Steel) (Monochromatic Stainless) Illus. Part DESCRIPTION 489084 Screw 2303216 Fitting, Water Tube 628379 Clip, Fuse 489478 Screw 2315533 Water Valve Asm 2208136 Tube Clip 2174358 Cover 488649 Screw 9 W10122527 Mold & Heater Assembly (Also Order 542638 2304969 Cup, Water Fill...
- Page 21 OPTIONAL PARTS (NOT INCLUDED) For Models: KSCK25FVWH00, KSCK25FVBL00, KSCK25FVSS00, KSCK25FVMS00 (White) (Black) (Stainless Steel) (Monochromatic Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION PAINT, PRESSURIZED SPRAY PAINT, BULK (1 qt.) ACCESSORIES (12 oz.) Previous Architect 799340 Black Series Handle Kit 350942 Primer, White 799344 White 8201806 Stainless...
