EverFocus EZ350 Operation Instructions Manual

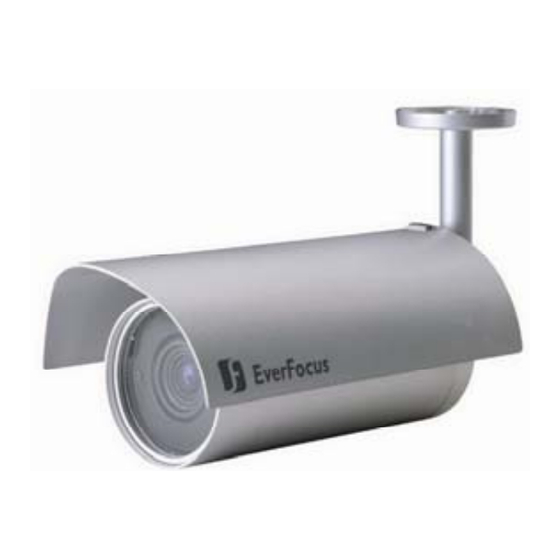

1/3” 560 tvl bullet style weatherproof color camera
Hide thumbs Also See for EZ350:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User's Manual and Operating Instructions
Please read this manual first for correct installation and operation. This manual should be retained
for future reference. The information in this manual was current when published. The
manufacturer reserves the right to revise and improve its products. All specifications are therefore
subject to change without notice.
PRECAUTIONS
1.
Do not install the camera near electric or magnetic fields.
Install the camera away from TV, radio transmitter, magnet, electric motor, transformer,
audio speakers since the magnetic fields generate from above devices will distort the video
images.
2.
Never disassemble the camera nor put impurities in it.
Disassembly or impurities may result in trouble or fire.
3.
Never face the camera toward the sun.
Direct sunlight or severe ray may cause fatal damage to sensor and internal circuit.
4.
Keep the power cord away from water and liquid.
Touching the wet power cord may result in electric shock.
5.
Never install the camera in areas exposed to water, oil or gas.
Water, oil or gas may result in failure, electric shock or fire.
EVERFOCUS
1/3" 560 TVL Bullet Style
Weatherproof Color Camera

Operation Instructions

Model No.
EZ350

Advertisement

Table of Contents
loading

Related Manuals for EverFocus EZ350

Summary of Contents for EverFocus EZ350

  • Page 1: Operation Instructions

    Touching the wet power cord may result in electric shock. Never install the camera in areas exposed to water, oil or gas. Water, oil or gas may result in failure, electric shock or fire. EVERFOCUS 1/3” 560 TVL Bullet Style Weatherproof Color Camera Operation Instructions EZ350 Model No.

  • Page 2: Package Contents

    Cleaning Do not touch the surface of sensor by hand directly. Use a soft cloth to remove the dirt from the camera body. Use lens tissue or a cotton swab and ethanol to clean the sensor and the camera lens. Do not operate the camera beyond the specified temperature, humidity or power source ratings.

  • Page 3: Specifications

    SPECIFICATIONS Pickup Device Video Format Scanning System Picture Elements Horizontal Resolution Sensitivity S/N Ratio Electronic Shutter Lens Type Back Light Comp. Auto Gain Control Flickerless Auto White Balance Gamma Correction Video Output Sync. Mode Heater Weatherproof Power Source Power Consumption Dimensions Weight Operating Temperature...
  • Page 4 DIMENSIONS MAJOR PARTS NAME & THEIR FUNCTIONS Sun Shield Sun Shield Cover Cover IRIS ALC/Level Adjustment IRIS ALC/Level Adjustment Focus Zoom Focus Zoom Lens Lens Heater Heater Back Fixing Plate Back Fixing Plate Swivel Swivel Screw Screw Mounting Mounting Base Base Assembly Assembly...

  • Page 5: Installation

    INSTALLATION 1. Using the supplied screws, mount the bracket base on the desired location. 2. Connect the BNC connector of the camera to a monitor or other video device through a 75 ohm type coaxial cable with BNC female connector at cable extension. 3.
  • Page 6 camera, fix the screw on the front fixing plate. Make sure the wider side of the fixing plate holds the edge of the camera well. 5. Attach the camera onto the mounting bracket. 6. Loosen the swivel screw and point the camera to the desired direction. 7.
  • Page 7 SETTINGS The camera is set up at factory and normally requires no adjustments. However, adjustments may be necessary in some cases. Please refer to the following description for the function details. The IRIS ALC and IRIS Level adjustments are located on the side circuit board, use a screwdriver to adjust if it is necessary.

  • Page 8: Dip Switch

    The 4 DIP switch also locate on the side circuit board, they are Flickerless, Back Light Comp, Auto Gain Control and Line Lock accordingly. Normal Normal FL(Flickerless) ON/OFF When picture flicker fiercely, turn FL on, then the camera will stabilize the speed of electronic shutter at 1/100(NTSC) or 1/120(PAL) automatically, and reduce the flicker immediately.

  • Page 9: Simple Instructions For The Desiccant Pack

    SIMPLE INSTRUCTIONS FOR THE DESICCANT PACK Due to the camera lens blurred from the humidity inside the camera. The desiccant pack is therefore attached to absorb the humidity. Easy instruction is as follow: Adjust all settings first and place the desiccant pack into the gap of the machine and fix it. Install the cover and overlaying gently.
  • Page 10 415 Oser Avenue Unit S Hauppauge, NY 11788 TEL: 631-436-5070 FAX: 631-436-5027 www.everfocus.com Your EverFocus product is designed and manufactured with high quality materials and components which can be recycled and reused. This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste.
