MTD Yard Machines Y765 Replacement Parts

22
2
1
Item Part No. Description
1 753-04511 Air Cleaner Cover Assembly (includes 2 & 22)
2 791-180350B Air Cleaner Filter
3 791-180351 Carburetor Mounting Screws
4 791-180226 Wavey Washer
5 753-04418 Choke Lever Assembly
6 753-04419 Choke Lever & Plate (includes 5)
7 753-04408 Carburetor Assembly (includes 8 & 18)
8 791-610675 Carburetor Gasket
9 791-181860 Carb Mount Screw
10 791-683974B Primer and Hose Assembly
11 753-1196 Carburetor Mount Assembly (includes 9, 12 & 13)
12 791-684451 Reed Assembly
13 753-05487 O-Ring
14 791-612134 Rear Mounting Pad
15 791-182612 Fuel Cap Assembly
16 791-182767 Fuel Tank Assembly (includes 15)
17 791-145308 Front Mounting Pad
18 753-05240 Flywheel Assembly
19 791-610303 Square Nut Drive
PARTS LIST PART NO. 769-04518 P00
4
5
6
3
7
8
9
11
12
31
32
REPLACEMENT PARTS - MODEL Y765
15
14
10
33
17
13
18
34
30
29
Item Part No.
20 791-182405
21 791-181862
22 791-181345
23 753-05023
24 753-06169
25 753-04466
26 753-05056
27 753-05091
28 753-04324
29 791-610311B Spark Plug
30 753-04619
31 753-04620
32 753-05169
33 791-182723
34 753-04182
* 753-1209
* 753-04826
* not shown

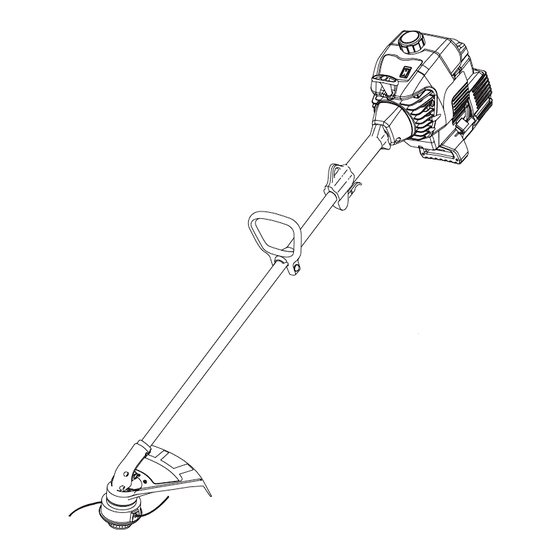

2-CYCLE GAS TRIMMER
16
19
20
23
28
24
22
27
Description
Switch Assembly
Housing Screw
Cover Screw
Wire Lead
Starter Housing Assembly (includes 20-23)
Anti-Rotation Screw
Clamp Assembly (includes 25)
Shroud Extension and Stand (includes 22)
Module Assembly
Exhaust Gasket
Muffler Mounting Bolt Assembly
Muffler Assembly (includes 30 & 31)
Cylinder Bolt
Cylinder Gasket
Piston Ring Set
Short Block Assembly (includes 9, 29, 33 & 34)
PPN 41DD765G900
21
25
26
6/09
