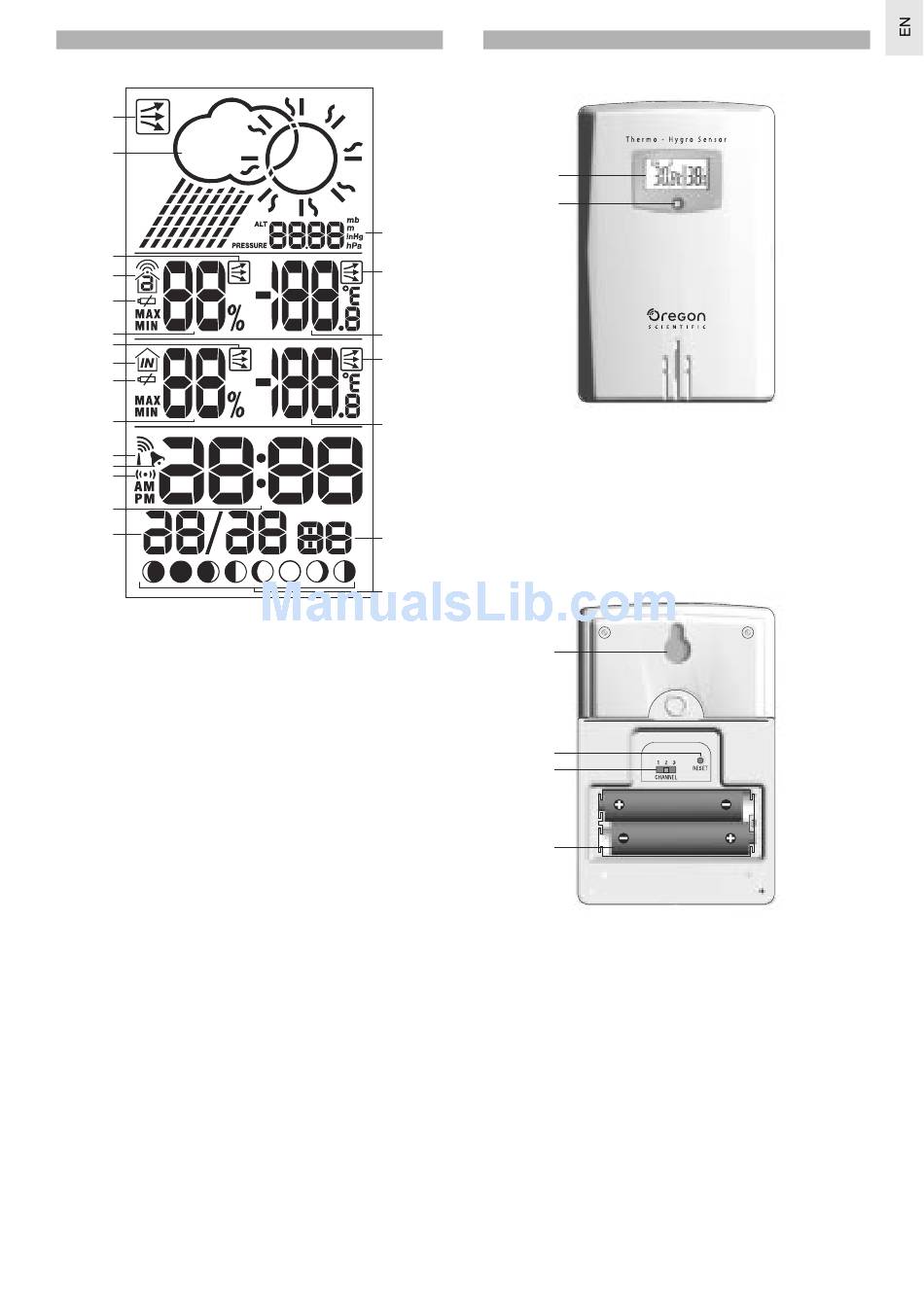

LCD DISPLAY

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1. Pressure trend
2. Weather display
3. Outdoor humidity trend
4. Channel number icon
5. Low battery icon for remote sensor
6. Outdoor humidity
7. Indoor humidity trend
8. Indoor icon
9. Low battery icon for main unit
10. Indoor humidity
11. Radio Frequency (RF) reception icon
12. Alarm activated
13. Alarm setting
14. Time
15. Calendar
16. Pressure reading
17. Outdoor temperature trend
18. Outdoor temperature – °C / °F
19. Indoor temperature trend
20. Indoor temperature
21. Seconds
22. Moon Phase

REMOTE SENSOR (THGR122NX)

1
2
16
17
18
19
20
1. LCD display
2. LED status indicator
21
22
1
2
3
4
1. Wall mount hole
2. RESET hole
3. CHANNEL number (1-3)
4. Battery compartment
(Battery compartment cover not shown)
