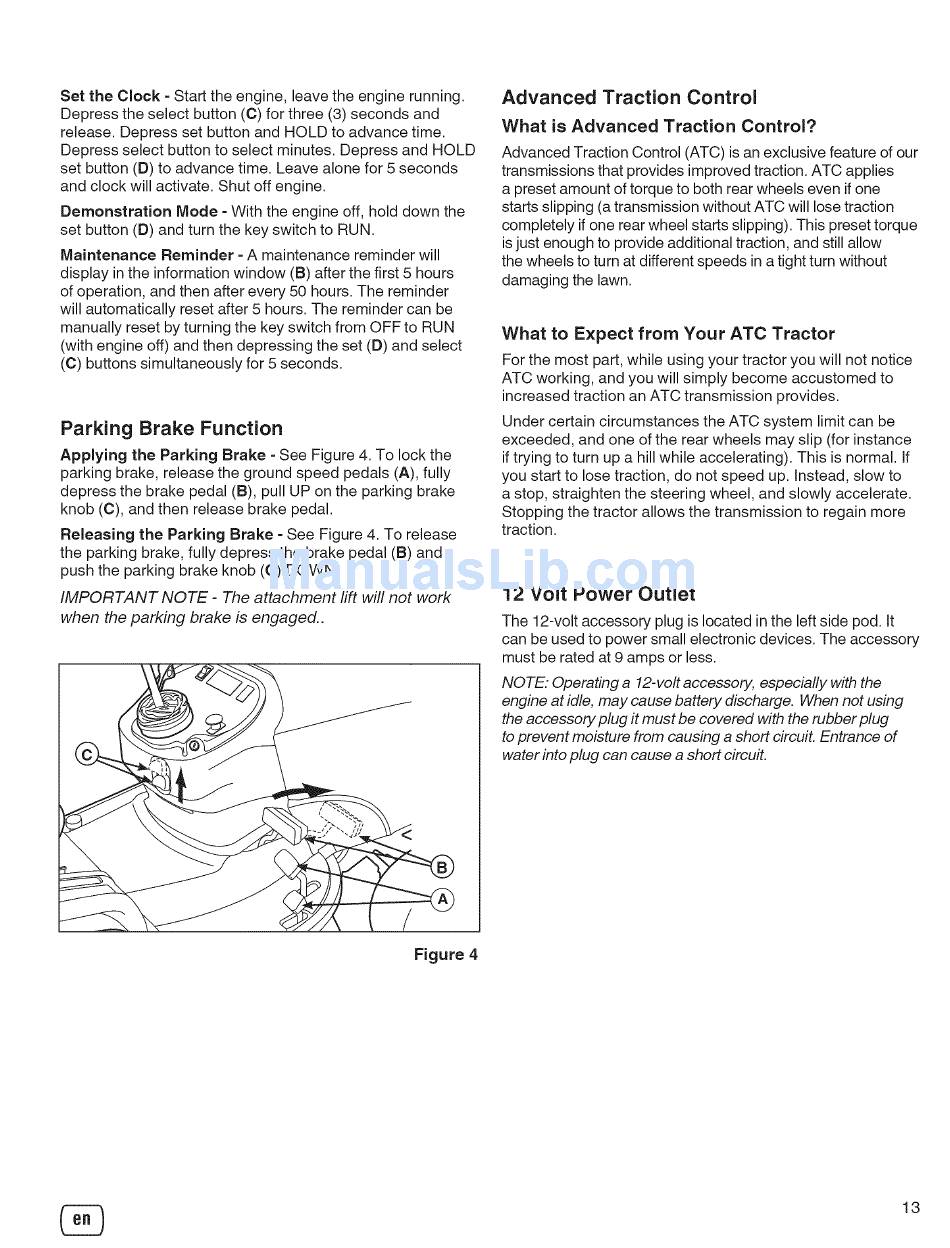

Set the Clock - Start the engine, leave the engine running.
Depress the select button (C) for three (3) seconds
and
release. Depress set button and HOLD to advance time.
Depress select button to select minutes. Depress and HOLD
set button (D) to advance time. Leave alone for 5 seconds
and clock will activate. Shut off engine.
Demonstration
Mode - With the engine off, hold down the
set button (D) and turn the key switch to RUN.
Maintenance
Reminder
- A maintenance
reminder will
display in the information
window (B) after the first 5 hours
of operation,
and then after every 50 hours. The reminder
will automatically
reset after 5 hours. The reminder can be
manually reset by turning the key switch from OFF to RUN
(with engine off) and then depressing
the set (D) and select
(C) buttons simultaneously
for 5 seconds.
Parking
Brake
Function
Applying
the Parking
Brake - See Figure 4. To lock the
parking brake, release the ground speed pedals (A), fully
depress the brake pedal (B), pull UP on the parking brake
knob (C), and then release brake pedal.
Releasing
the Parking
Brake - See Figure 4. To release
the parking brake, fully depress the brake pedal (B) and
push the parking brake knob (C) DOWN.
IMPORTANT NOTE - The attachment rift will not work
when the parking brake is engaged..
Figure 4
Advanced
Traction
Control
What is Advanced
Traction
Control?
Advanced Traction Control (ATC) is an exclusive feature of our
transmissions that provides improved traction. ATC applies
a preset amount of torque to both rear wheels even if one
starts slipping (a transmission without ATC will lose traction
completely if one rear wheel starts slipping). This preset torque
is just enough to provide additional traction, and still allow
the wheels to turn at different speeds in a tight turn without
damaging the lawn.
What to Expect
from
Your ATC Tractor
For the most part, while using your tractor you will not notice
ATC working, and you will simply become accustomed to
increased traction an ATC transmission provides.
Under certain circumstances the ATC system limit can be
exceeded, and one of the rear wheels may slip (for instance
if trying to turn up a hill while accelerating). This is normal. If
you start to lose traction, do not speed up. Instead, slow to
a stop, straighten the steering wheel, and slowly accelerate.
Stopping the tractor allows the transmission to regain more
traction.
12 Volt Power Outlet
The 12-volt accessory
plug is located in the left side pod. It
can be used to power small electronic devices. The accessory
must be rated at 9 amps or less.
NOTE. Operating a 12-volt accessory,
especially with the
engine at idle, may cause battery discharge. When not using
the accessory plug it must be covered with the rubber plug
to prevent moisture from causing a short circuit. Entrance of
water into plug can cause a short circu#.
13
