DESCRIPTION
LIGHT FIXTURE:
• Corrosion resistant, painted white finish
• Frosted glass shade
• Close mount design
• Uses two 60 Watt maximum, candelabra base bulbs.
Bulbs not included.
• Vent openings in fixture base for exhaust fan
• Light fixture assembly is plug-in and removable
BLOWER:
• Plug-in permanently lubricated motor
• Polymeric blower wheel
HOUSING:
• Rugged, 26-gage galvanized steel construction
• Sturdy key-holed mounting brackets for quick, accurate
installation
• Tapered, polymeric duct fitting with built-in backdraft
damper for easy, positive duct connection and no metallic
clatter
NOTE: For installation in flat ceilings only.
U.L. Listed for use in insulated ceilings (Type I.C.)
Use supply wiring rated for at least 90° C
SPECIFICATIONS
VOLTS AMPS CFM SONES
120
2.2
70
HVI-2100 CERTIFIED RATINGS comply with
new testing technologies and procedures
prescribed by the Home Ventilating Institute,
for off-the-shelf products, as they are available
to consumers. Product performance is rated at
0.1 in. static pressure, based on tests conducted
in AMCA's state-of-the-art test laboratory.
Sones are a measure of humanly-perceived
loudness, based on laboratory measurements.
NuTone, Inc., 4820 Red Bank Road, Cincinnati, OH 45227 (1-888-543-8687)
REFERENCE
QTY.
DUCT
3.5
4" Round
REMARKS

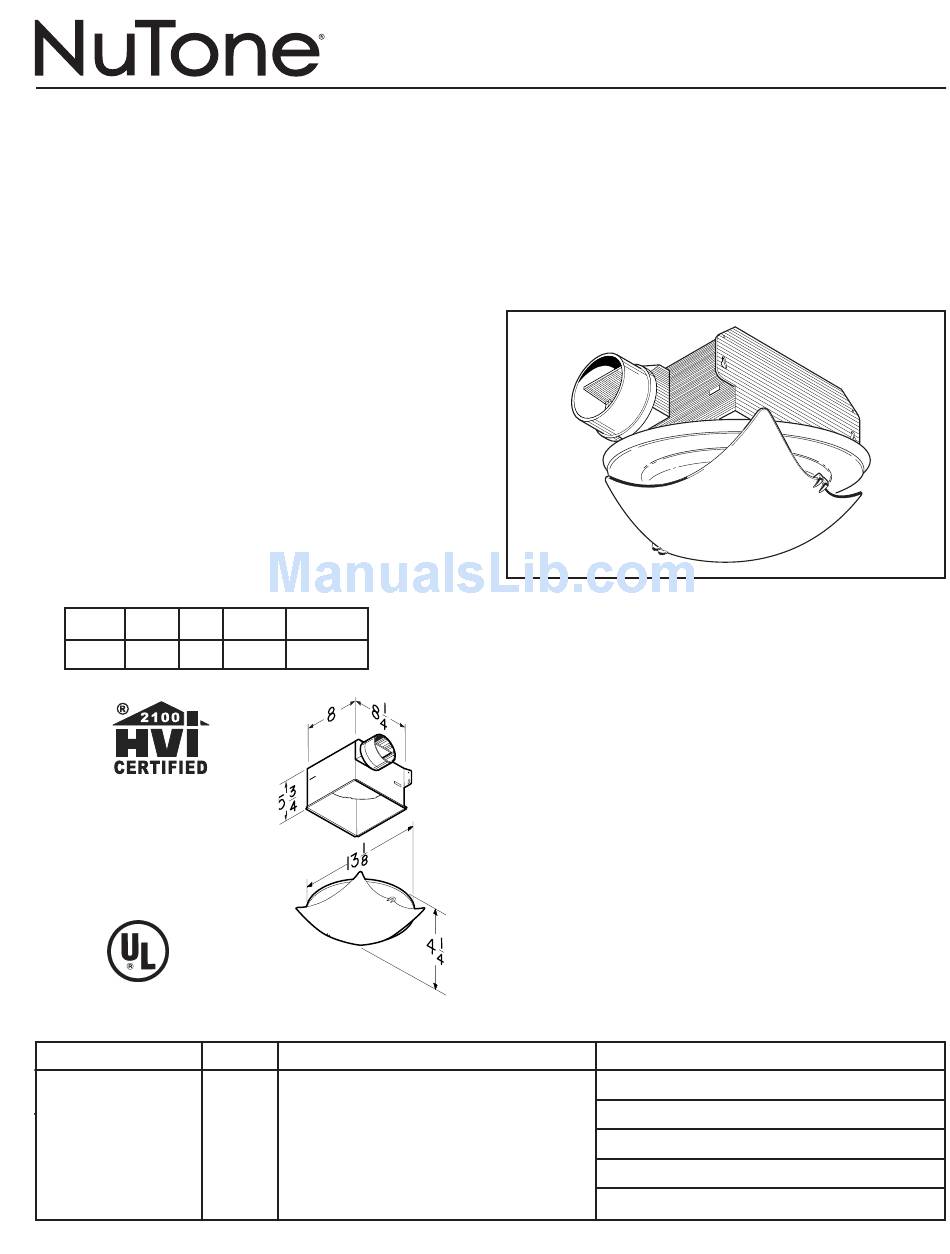

Architectural & Engineering Specifications
ARCHITECT'S SPECIFICATION
• Decorative Light/Fan unit shall be NuTone Model 758.
• Unit shall have galvanized steel housing with dual integral
mounting brackets. It shall be ducted to a roof or wall cap.
• Blower assembly shall be removable and have a permanently
lubricated motor.
• Light fixture assembly shall be plug-in, removable and include a
frosted glass shade and a corrosion-resistant base with painted
white finish.
• Lamps shall be two 60 Watt maximum, candelabra base,
incandescent.
• Air delivery to be no less than 70 cfm and sound level no greater
than 3.5 sones. Air and sound ratings shall be certified by HVI.
• Unit shall be U.L. Listed for use in insulated ceilings (Type I.C.)
INSTALLATION
Complete installation instructions are included with each
Decorative Light / Fan.
Project
Location
Architect
Engineer
Contractor
Submitted by
60K
October 2006
Decorative
Light / Fan
MODEL 758NT
Date
99043981A
