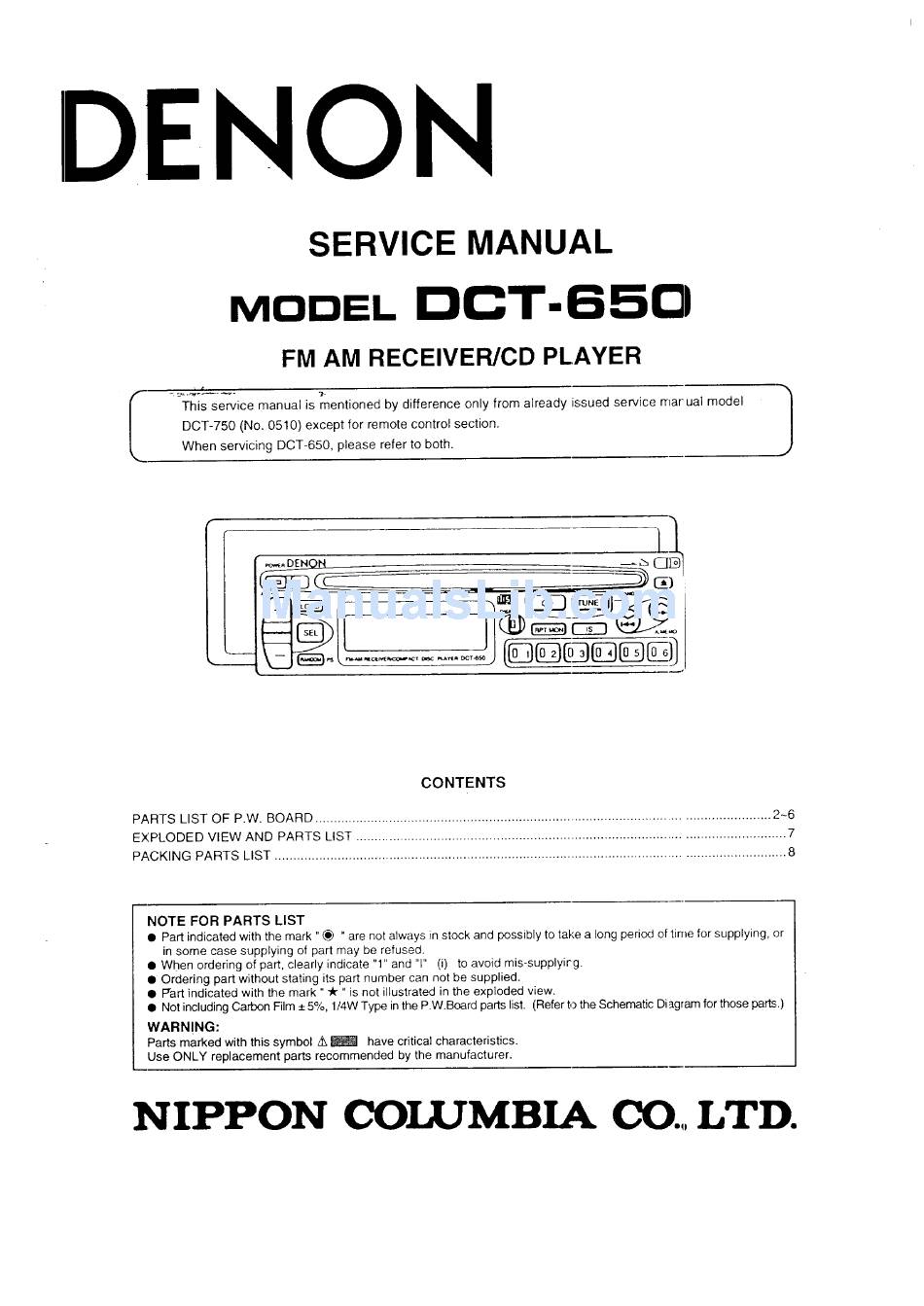

Denon DCT-650 Service Manual

IDE, NON
SERVICE MANUAL
MODEL
DCT-650
FM AM RECEIVER/CD PLAYER
This service manual is mentioned by difference only from already issued service mar ual model
DCT-750 (No. 0510) except for remote control section.
When servicing DCT-650, please refer to both.
CONTENTS
PARTS LIST OF P.W. BOARD .......................................................................................................................... 2-6
EXPLODED VIEW AND PARTS LIST ................................................................................................................... 7
PACKING PARTS LIST ......................................................................................................................................... 8
NOTE FOR PARTS LIST
• Part indicated with the mark "(_ " are not always in stock and possibly to take a long period of tirne for supplying, or
in some case supplying of part may be refused.
• When ordering of part, clearly indicate "1" and 'T' (i) to avoid mis-supplyirg.
• Ordering part without stating its part number can not be supplied.
• P'art indicated with the mark " _ " is not illustrated in the exploded view.
• Not including Carbon Film + 5%, 1/4W Type in the P.W.Board parts list. (Refer to the Schematic Diagram for those parts.)
WARNING:
Parts marked with this symbol /h _j have critical characteristics.
Use ONLY replacement parts recommended by the manufacturer.
NIPPON COI MBIA CO.,, LTD.
