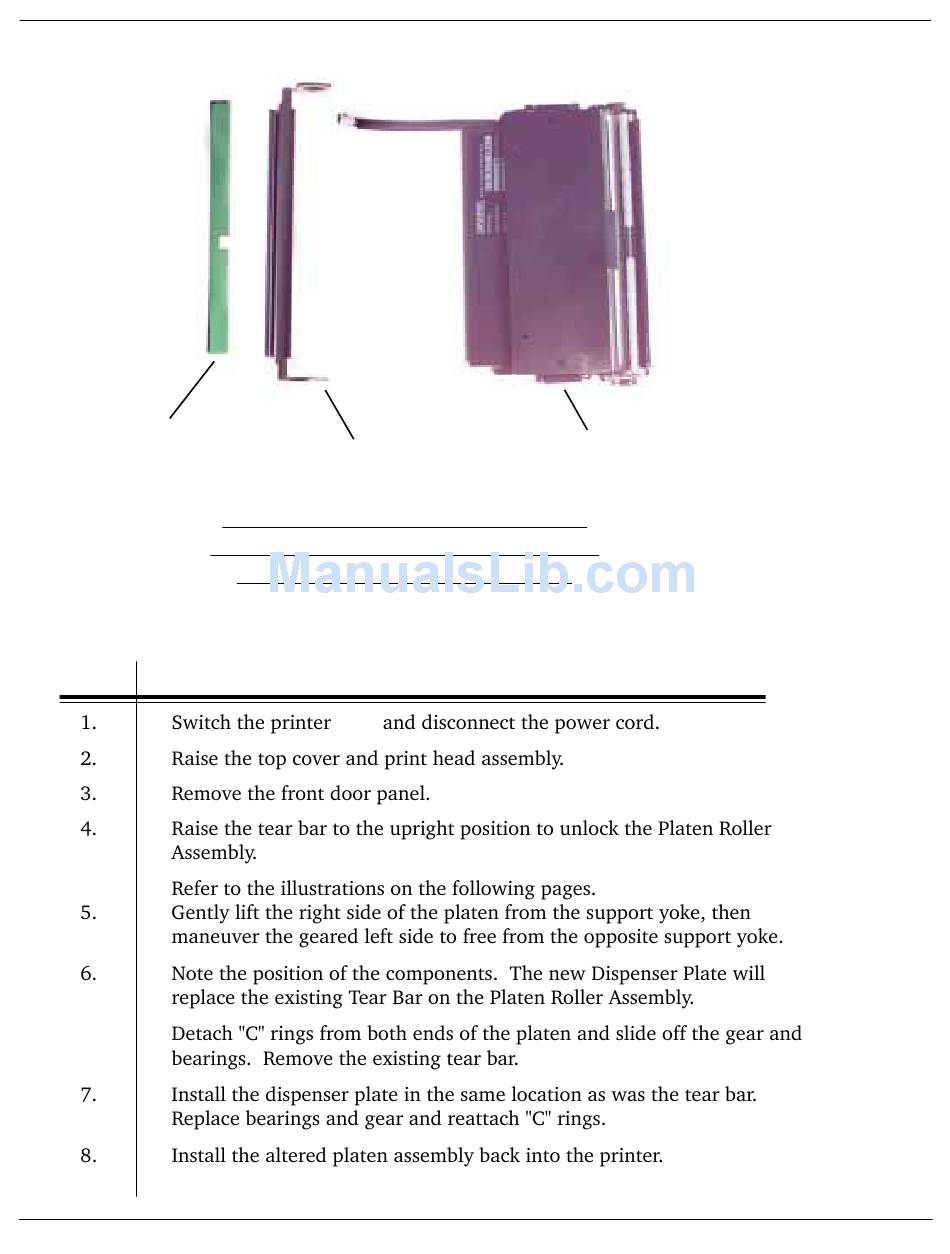

- Page 1 Installing the Dispenser Kit GUIDE SHEET DISPENSER DISPENSER PLATE DISPENSER KIT COMPONENTS (USED ON DIRECT THERMAL AND THERMAL TRANSFER UNITS) Direct Thermal Unit: For Thermal Transfer Unit see page 6 STEP PROCEDURE TEXT CONTINUED ON PAGE 4 Page 1...
- Page 2 Installing the Dispenser Kit Direct Thermal Unit LEFT END OF PLATEN IN SUPPORT YOKE RIGHT END OF PLATEN IN SUPPORT YOKE GENTLY LIFT PLATEN FROM THE RIGHT SIDE OF THE SUPPORT FRAME AND GEARS ON THE LEFT Page 2...
- Page 3 Installing the Dispenser Kit Direct Thermal Unit INSTALL DISPENSER PLATE AFTER REMOVING EXISTING TEAR BAR REMOVE "C" RINGS BOTH ENDS REMOVE BEARINGS, GEAR AND "C" RINGS INSTALL DISPENSER PLATE AND REPLACE BEARINGS, GEAR AND "C" RINGS Page 3...
- Page 4 Installing the Dispenser Kit Direct Thermal Unit STEP PROCEDURE PEEL BACKING PAPER FROM GUIDE SHEET LINE UP EDGE OF GUIDE SHEET AND NOTCH PRESS DOWN TO ATTACH TO FRONT DOOR PANEL Page 4...
- Page 5 Installing the Dispenser Kit Direct Thermal Unit RIGHT SIDE LOCATING PIN PLUG CONNECTOR INTO CN13 LINE UP HOLES WITH LOCATING PINS SECURE DISPENSER WITH (2) SCREWS Page 5...
- Page 6 Installing the Dispenser Kit Thermal Transfer Unit: STEP PROCEDURE TEXT CONTINUED ON PAGE 12 Page 6...
- Page 7 Installing the Dispenser Kit Thermal Transfer Unit: REMOVE SCREW TO DETACH LEVER FROM PRINT HEAD AND RIBBON INSERT A FLAT BLADE ASSEMBLY SCREWDRIVER UNDER THIS BRACKET (OR BY OTHER MEANS) TO DISENGAGE THIS END OF THE RIBBON ASSEMBLY FROM THE PRINT HEAD FLAT BLADE SCREWDRIVER...
- Page 8 Installing the Dispenser Kit For Thermal Transfer Unit: SLIDE THE RIBBON ASSEMBLY BACKWARD TO DISENGAGE THIS END FROM THE PRINT HEAD POSITIONING PIN ON THE UNDERSIDE OF THE RIBBON ASSEMBLY FITS INTO HOLE ON PRINT HEAD RECONNECT IF DISENGAGED Page 8...
- Page 9 Installing the Dispenser Kit For Thermal Transfer Unit: LEFT END OF PLATEN IN SUPPORT YOKE RIGHT END OF PLATEN IN SUPPORT YOKE GENTLY LIFT PLATEN FROM THE RIGHT SIDE OF THE SUPPORT FRAME AND GEARS ON THE LEFT Page 9...
- Page 10 Installing the Dispenser Kit For Thermal Transfer Unit: INSTALL DISPENSER PLATE AFTER REMOVING EXISTING TEAR BAR REMOVE "C" RINGS BOTH ENDS REMOVE BEARINGS, GEAR AND "C" RINGS INSTALL DISPENSER PLATE AND REPLACE BEARINGS, GEAR AND "C" RINGS Page 10...
- Page 11 Installing the Dispenser Kit For Thermal Transfer Unit: RIGHT SIDE LOCATING PIN PLUG CONNECTOR INTO CN13 LINE UP HOLES WITH LOCATING PINS SECURE DISPENSER WITH (2) SCREWS Page 11...
- Page 12 Installing the Dispenser Kit Thermal Transfer Unit: STEP PROCEDURE PEEL BACKING PAPER FROM GUIDE SHEET LINE UP EDGE OF GUIDE SHEET AND NOTCH PRESS DOWN TO ATTACH TO FRONT DOOR PANEL Page 12 59408502...
