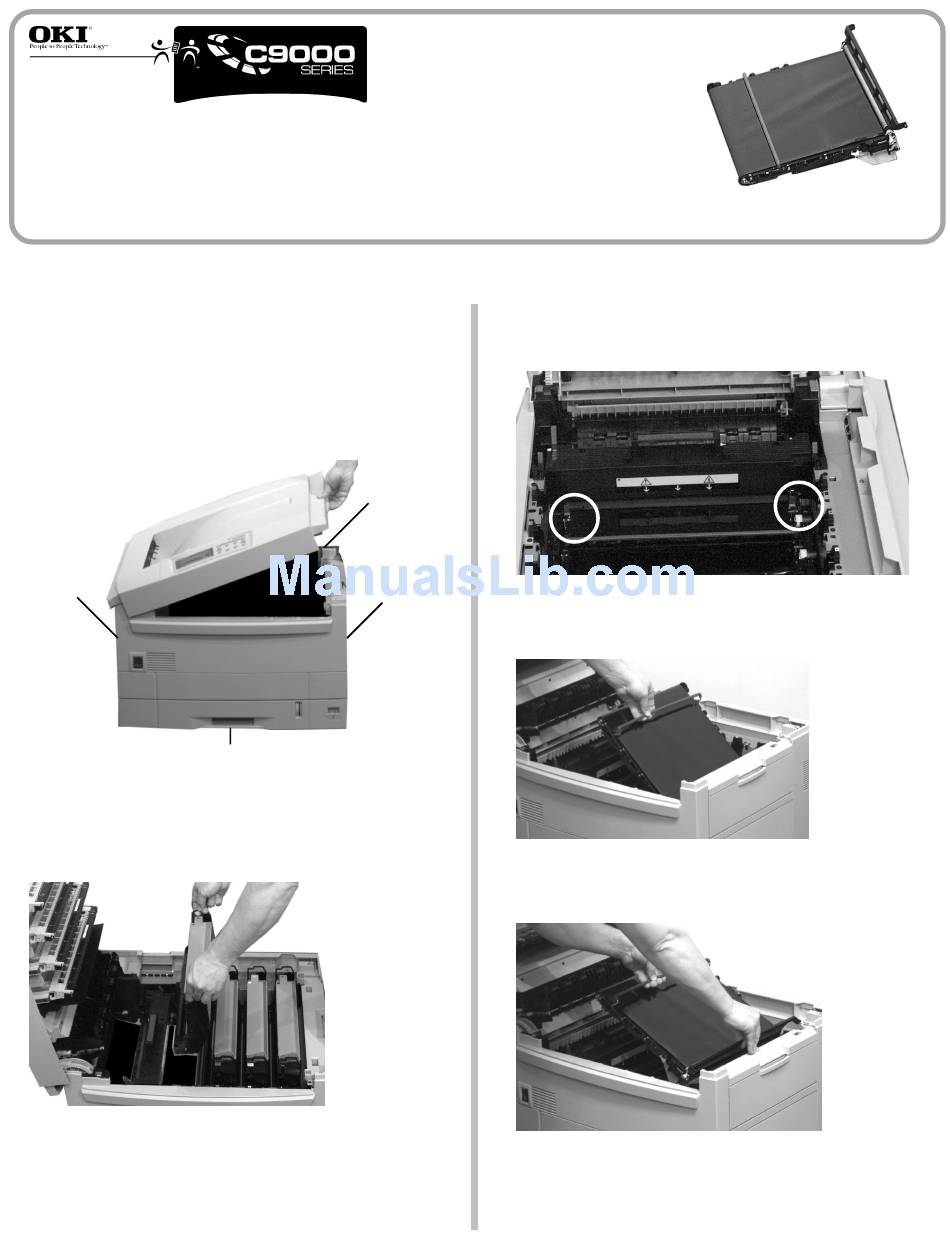

Caution! The fuser unit (at the left in the printer) may be
HOT. Let it cool down before attempting to replace the
transfer belt.
1 Turn the printer off.
2 Pull up on the handle and open the top cover.
Left
3 Remove the four image drums/toner cartridges, then
cover them to protect them from light while you are
replacing the transfer belt.
Replacing
the Transfer Belt
Back
Right
Front
4 Press the blue transfer belt lock levers (circled) to the left
(toward the open cover).
5 Lift the left end of the transfer belt unit up by the blue
handle.
5 Grasp both handles and lift the transfer belt unit out of the
printer.
6 Unpack the new transfer belt unit. (Be careful to avoid
touching the shiny black surface of the transfer belt.).
41531501
OKI P/N
(continued on back)
