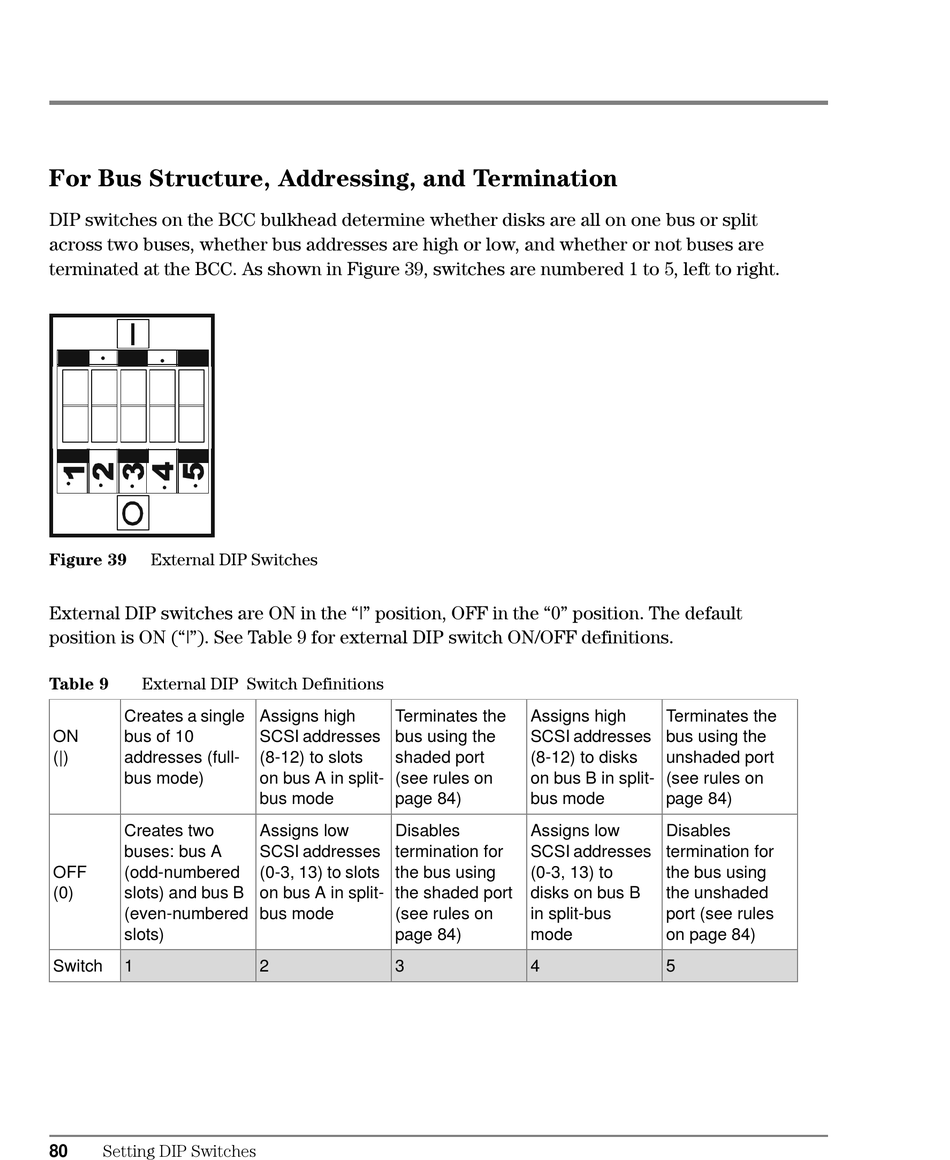

HP Surestore HVD10 - Disk System Service Manual page 80

Creates a single
ON bus of 10
(|) addresses (full-
bus mode)
Creates two
buses: bus A
OFF (odd-numbered
(0) slots) and bus B
(even-numbered
slots)
Switch 1
80
Assigns high Terminates the
SCSI addresses bus using the
(8-12) to slots shaded port
on bus A in split- (see rules on
bus mode page 84)
Assigns low Disables
SCSI addresses termination for
(0-3, 13) to slots the bus using
on bus A in split- the shaded port
bus mode (see rules on
page 84)
2 3
Assigns high Terminates the
SCSI addresses bus using the
(8-12) to disks unshaded port
on bus B in split- (see rules on
bus mode page 84)
Assigns low Disables
SCSI addresses termination for
(0-3, 13) to the bus using
disks on bus B the unshaded
in split-bus port (see rules
mode on page 84)
4 5
