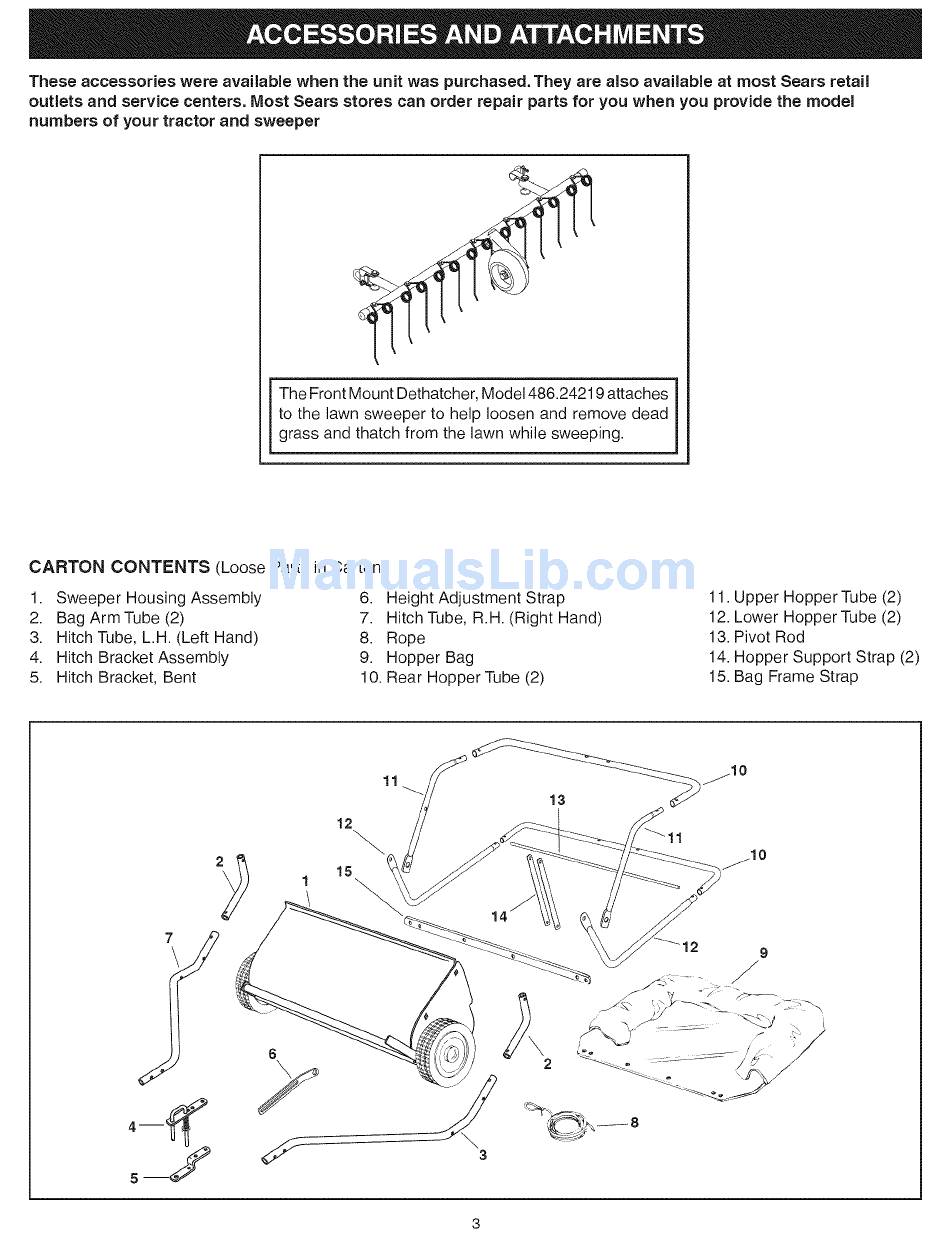

These accessories were available when the unit was purchased. They are also available at most Sears retail
outlets and service centers, Most Sears stores can order repair parts for you when you provide the model
numbers of your tractor and sweeper
I The Front Mount Dethatcher, Model 486.24219 attaches
to the lawn sweeper to help loosen and remove dead
grass and thatch from the lawn while sweeping.
CARTON CONTENTS (Loose Parts in Carton)
1. Sweeper Housing Assembly
2. Bag Arm Tube (2)
3. Hitch Tube, L.H. (Left Hand)
4. Hitch Bracket Assembly
5. Hitch Bracket, Bent
6. Height Adjustment Strap
7. Hitch Tube, R.H. (Right Hand)
8. Rope
9. Hopper Bag
10. Rear Hopper Tube (2)
11. Upper Hopper Tube (2)
12. Lower Hopper Tube (2)
13. Pivot Rod
14. Hopper Support Strap (2)
15. Bag Frame Strap
11
12
15
2
