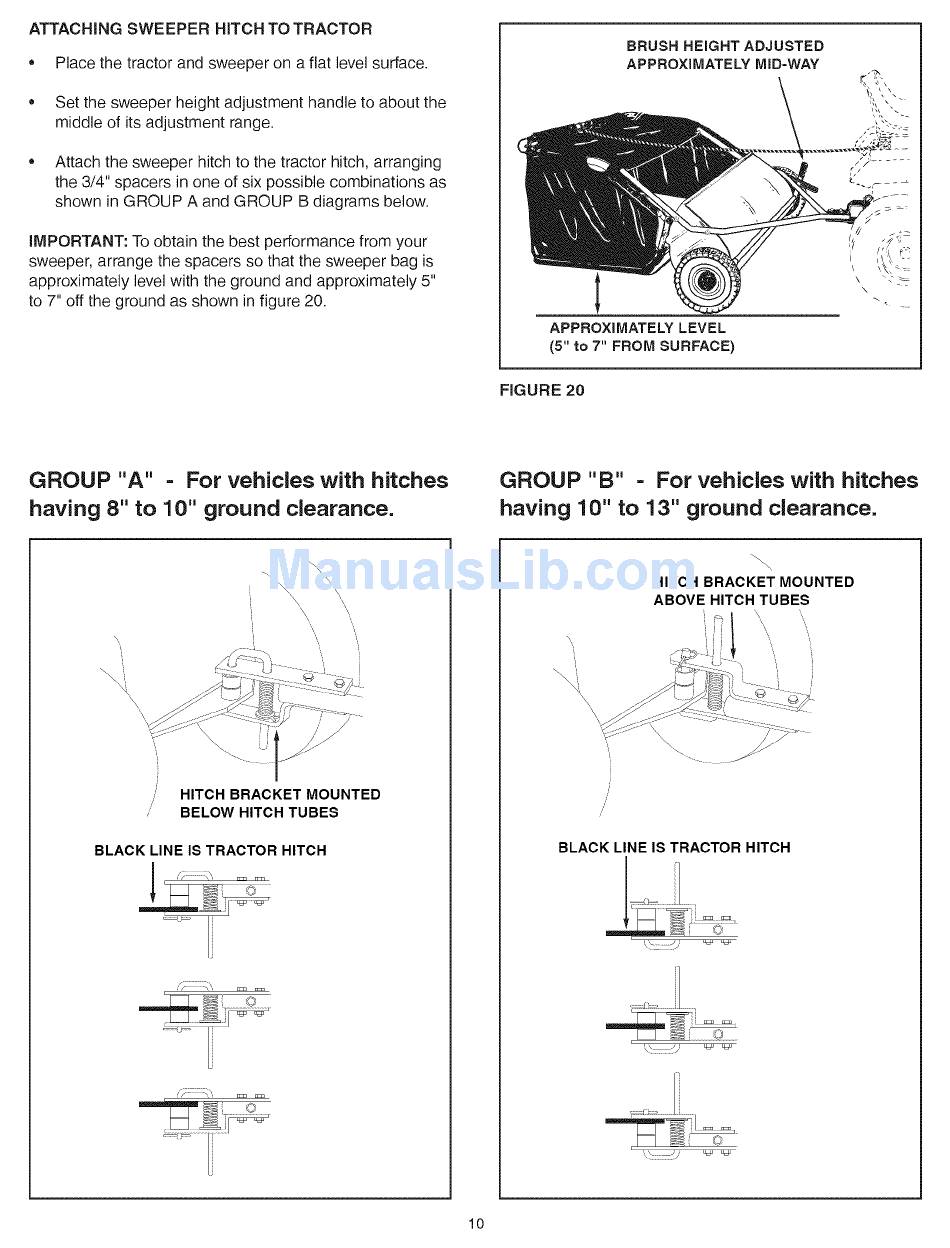

ATTACHING SWEEPER HITCH TO TRACTOR
Place the tractor and sweeper on a flat level surface.
Set the sweeper height adjustment handle to about the
middle of its adjustment range.
Attach the sweeper hitch to the tractor hitch, arranging
the 3/4" spacers in one of six possible combinations as
shown in GROUP A and GROUP B diagrams below.
IMPORTANT: To obtain the best performance from your
sweeper, arrange the spacers so that the sweeper bag is
approximately level with the ground and approximately 5"
to 7" off the ground as shown in figure 20.
BRUSH
HEIGHT
ADJUSTED
APPROXIMATELY
MID-WAY
APPROXIMATELY LEVEL
(5" to 7" FROM SURFACE)
FIGURE 20
GROUP "A" - For vehicles with hitches
having 8" to 10" ground
clearance.
GROUP "B" - For vehicles with hitches
having 10" to 13" ground clearance.
\
X
\
_\\
\
I
!
HITCH
BRACKET
MOUNTED
BELOW
HITCH
TUBES
BLACK
LINE
IS TRACTOR
HITCH
\\
HITCH
BRACKET
MOUNTED
ABOVE
HITCH
TUBES
I
\
/
/
/
BLACK
LINE IS TRACTOR
HITCH
i_
_u u_
,\_
_j
u_u
u_
,_
£;
u_
IO
