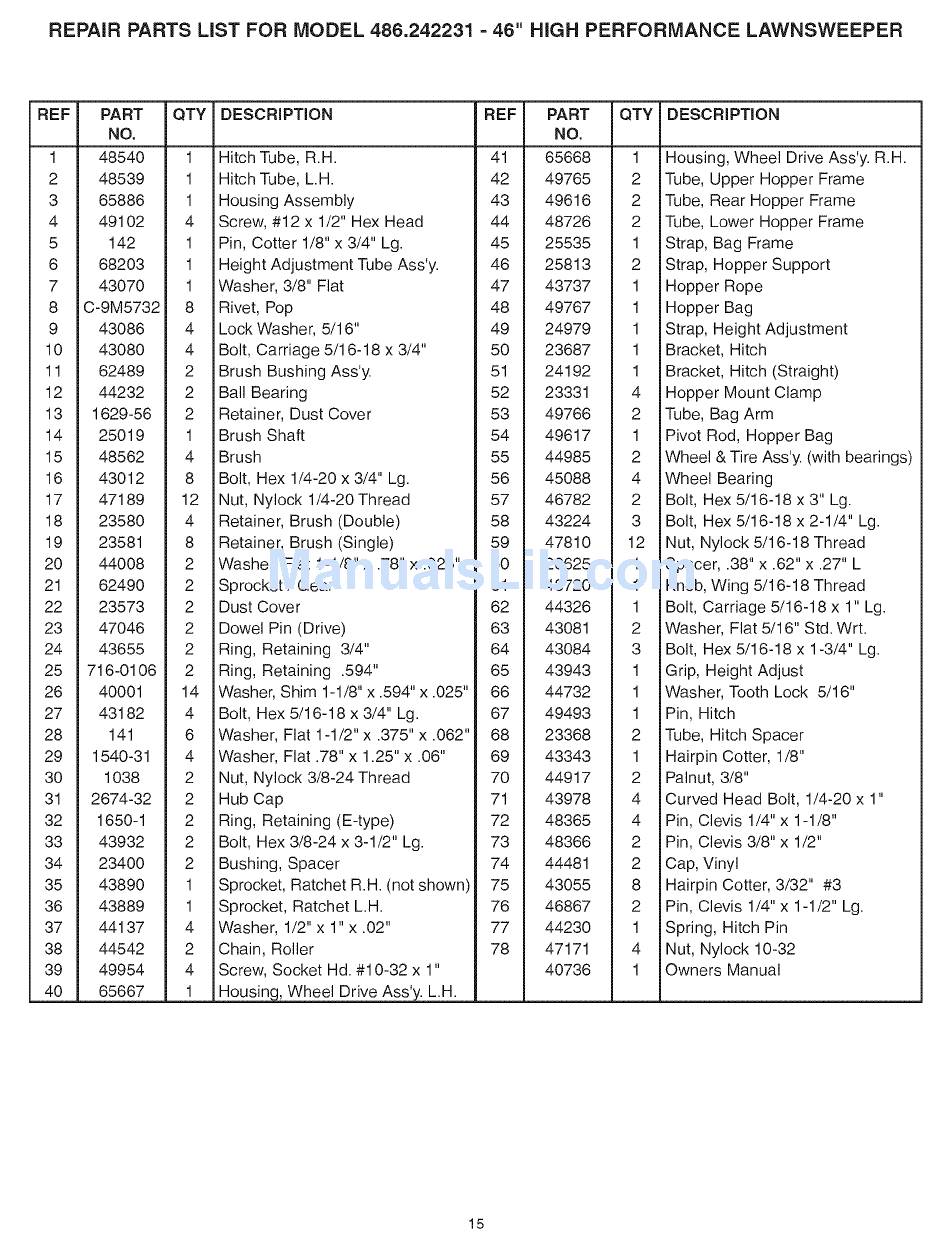

REPAIR PARTS LiST FOR MODEL 486.242231
- 46" HiGH PERFORMANCE
LAWNSWEEPER
REF
PART
QTY
DESCRIPTION
NO.
1
48540
1
Hitch Tube, R.H.
2
48539
1
Hitch Tube, L.H.
3
65886
1
Housing Assembly
4
49102
4
Screw, #12 x 1/2" Hex Head
5
142
1
Pin, Cotter 1/8" x 3/4" Lg.
6
68203
1
Height Adjustment Tube Ass'y.
7
43070
1
Washer, 3/8" Flat
8
C-9M5732
8
Rivet, Pop
9
43086
4
Lock Washer, 5/16"
10
43080
4
Bolt, Carriage 5/16-18 x 3/4"
11
62489
2
Brush Bushing Ass'y.
12
44232
2
Ball Bearing
13
1629-56
2
Retainer, Dust Cover
14
25019
1
Brush Shaft
15
48562
4
Brush
16
43012
8
Bolt, Hex 1/4-20 x 3/4" Lg.
17
47189
12
Nut, Nylock 1/4-20Thread
18
23580
4
Retainer, Brush (Double)
19
23581
8
Retainer, Brush (Single)
20
44008
2
Washer, Flat 1-1/8" x .78" x .025"
21
62490
2
Sprocket / Gear
22
23573
2
Dust Cover
23
47046
2
Dowel Pin (Drive)
24
43655
2
Ring, Retaining 3/4"
25
716-0106
2
Ring, Retaining
.594"
26
40001
14
Washer, Shim 1-1/8" x .594" x .025"
27
43182
4
Bolt, Hex 5/16-18 x 3/4" Lg.
28
141
6
Washer, Flat 1-1/2" x .375" x .062"
29
1540-31
4
Washer, Flat .78" x 1.25" x .06"
30
1038
2
Nut, Nylock 3/8-24 Thread
31
2674-32
2
Hub Cap
32
1650-1
2
Ring, Retaining (E-type)
33
43932
2
Bolt, Hex 3/8-24 x 3-1/2" Lg.
34
23400
2
Bushing, Spacer
35
43890
1
Sprocket, Ratchet R.H. (not shown)
36
43889
1
Sprocket, Ratchet L.H.
37
44137
4
Washer, 1/2" x 1" x .02"
38
44542
2
Chain, Roller
39
49954
4
Screw, Socket Hd. #10-32 x 1"
40
65667
1
Housing, Wheel Drive Ass'y. L.H.
REF
PART
NO.
41
65668
42
49765
43
49616
44
48726
45
25535
46
25813
47
43737
48
49767
49
24979
50
23687
51
24192
52
23331
53
49766
54
49617
55
44985
56
45088
57
46782
58
43224
59
47810
60
23625
61
43720
62
44326
63
43081
64
43084
65
43943
66
44732
67
49493
68
23368
69
43343
70
44917
71
43978
72
48365
73
48366
74
44481
75
43055
76
46867
77
44230
78
47171
40736
QTY
DESCRIPTION
1
Housing, Wheel Drive Ass'y. R.H.
2
Tube, Upper Hopper Frame
2
Tube, Rear Hopper Frame
2
Tube, Lower Hopper Frame
1
Strap, Bag Frame
2
Strap, Hopper Support
1
Hopper Rope
1
Hopper Bag
1
Strap, Height Adjustment
1
Bracket, Hitch
1
Bracket, Hitch (Straight)
4
Hopper Mount Clamp
2
Tube, Bag Arm
1
Pivot Rod, Hopper Bag
2
Wheel & Tire Ass'y. (with bearings)
4
Wheel Bearing
2
Bolt, Hex 5/16-18 x 3" Lg.
3
Bolt, Hex 5/16-18 x 2-1/4" Lg.
12
Nut, Nylock 5/16-18 Thread
1
Spacer, .38" x .62" x .27" L
1
Knob, Wing 5/16-18 Thread
1
Bolt, Carriage 5/16-18 x 1" Lg.
2
Washer, Flat 5/16" Std. Wrt.
3
Bolt, Hex 5/16-18 x 1-3/4" Lg.
1
Grip, Height Adjust
1
Washer, Tooth Lock 5/16"
1
Pin, Hitch
2
Tube, Hitch Spacer
1
Hairpin Cotter, 1/8"
2
Palnut, 3/8"
4
Curved Head Bolt, 1/4-20 x 1"
4
Pin, Clevis 1/4" x 1-1/8"
2
Pin, Clevis 3/8" x 1/2"
2
Cap, Vinyl
8
Hairpin Cotter, 3/32" #3
2
Pin, Clevis 1/4" x 1-1/2" Lg.
1
Spring, Hitch Pin
4
Nut, Nylock 10-32
1
Owners Manual
