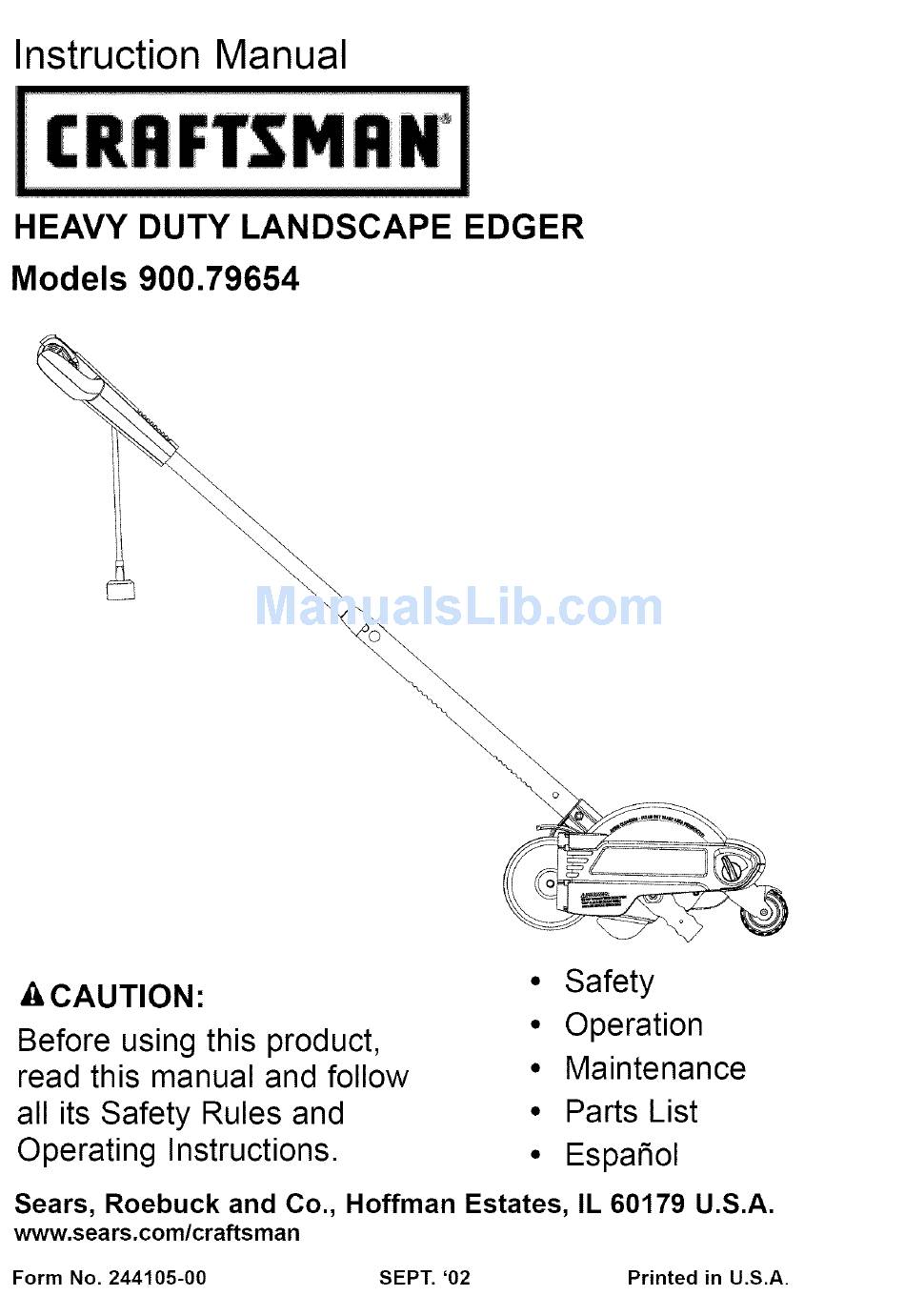

CRAFTSMAN 900.79654 Instruction Manual

Heavy duty landscape edger.


Instruction Manual
HEAVY DUTY LANDSCAPE
Models 900.79654
-ACAUTION:
Before using this product,
read this manual and follow
all its Safety Rules and
Operating
Instructions.
Sears,
Roebuck
www.sears.com/craftsman
Form No. 244105-00
and Co., Hoffman
SEPT. '02
EDGER
• Safety
• Operation
• Maintenance
• Parts List
• EspaSol
Estates,
IL 60179 U.S.A.
Printed in U.S.A.
Next page ->

Summary of Contents

  • Page 1

    Before using this product, • Maintenance read this manual and follow • Parts List all its Safety Rules and Operating Instructions. • EspaSol Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. www.sears.com/craftsman Form No. 244105-00 SEPT. '02 Printed in U.S.A.

  • Page 2

    LANDSCAPE EDGER If this Craftsman product fails due to a defect in material or workmanship within one year from the date of purchase, return it to your nearest Sears store or Craftsman outlet to have it replaced free of charge.

  • Page 3

    • WEAR SAFETY GLASSES orother e ye • DO NOT ATTEMPT to remove cut protection. Also use face ordustmask if material or hold material to be cut when operation isdusty. blades are moving. Make sure edger • GROUND FAULT CIRCUIT switch is off when clearing jammed INTERRUPTER (GFCl) protection...

  • Page 4

    H [,."7-'I = =111k'd I,vlv/-'1 r,,] _ I I_[€'_'_ DOUBLE INSULATION large and small blade slot widths. If the Double insulated tools are constructed plug does not fit fully into the extension cord, reverse the plug. If it still does not throughout with two separate layers of fit, obtain a suitable extension cord.

  • Page 5

    ASSEMBLING THE HANDLE Assemble Handle Tubes (Figure 2 & 3) 1. Remove knob and curved head bolt from lower handle tube mounting holes. 2. Slide upper handle tube down into lower handle tube so that holes will line up (Figure 3). 3.

  • Page 6

    Blade Guard (Figure 6A & 6B) Wait for bladeto cometo completestop! UNPLUG TOOL! The guard swings open for cleaning inside of blade housing or for changing blades. To open guard turn the guard release knob clockwise (facing blade guard side of tool) until it stops (a turn of about 90 °) fig.

  • Page 7

    Attach New Blade: grass side. This will require lifting up the edge guide and may require 1. Ensure inner spacer is on shaft- "flats" in spacer hole must engage reducing the depth of cut. with "flats" on shaft. For the first edging each season, it is 2.

  • Page 8

    Landscaping/Trenching Storage _WARNING: Before Landscaping or _,WARNING! Be sure the tool is Trenching, inspect and ensure there are unplugged. no objects that may create a hazard or Remove and clean any debris from the interfere with operating the edger. Do not outside of the edger and inside of guard overload.

  • Page 10

    Parts L ist...

  • Page 11

    Your Home For repair - in your home - of all major brand appliances, lawn and garden equipment, or heating and cooling systems, no matter who made it, no matter who sold it! For the replacement parts, accessories and owneris manuals that you need to do-it-yourself. For Sears professional installation of home appliances and items like garage door openers and water heaters.
