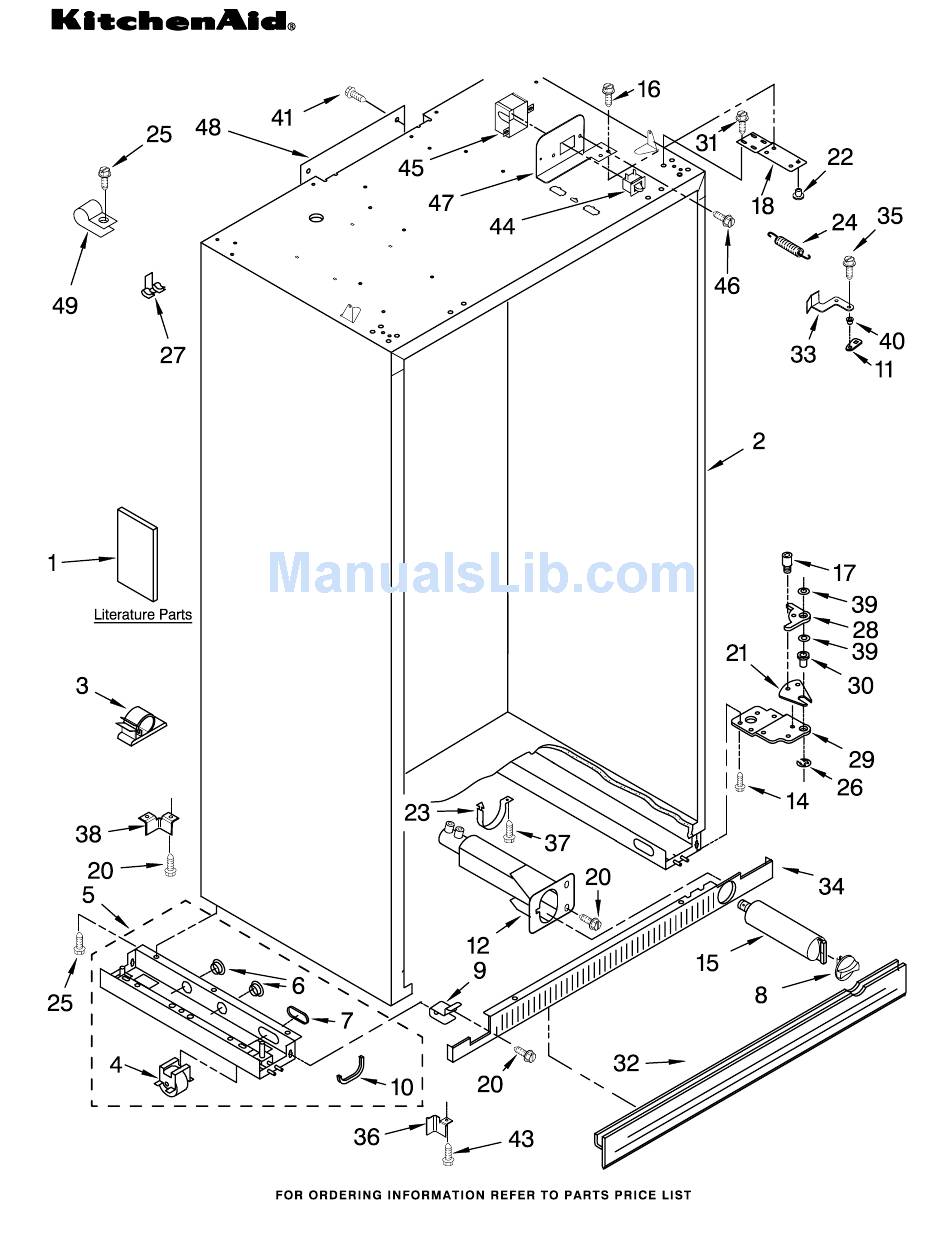

- Page 1 CABINET PARTS 42" BUILT IN REFRIGERATOR For Model: KSSC42FMS02 (Stainless Steel) 11−05 Litho In U.S.A. (mek) Part No. 8214656...
-
Page 2: Cabinet Parts
CABINET PARTS For Model: KSSC42FMS02 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Literature Parts Extension Arm, 3400525 Screw 2317086 Use & Care Guide Door Closer 2255709 Filter, Water 2307363 Energy Label 2266882 Right 489399 Screw 2306324 Service & Wiring 2266881 Left 3400230 Screw, Door Stop Sheet... - Page 3 CABINET TRIM PARTS For Model: KSSC42FMS02 (Stainless Steel) Illus. Part DESCRIPTION Cabinet, Trim (Right Side) 2222552S Stainless Steel Screw 8281250 Stainless Steel 2254725 Cabinet, Trim (Bottom) 486194 Screw 2313992 Cabinet, Trim Top Cabinet Trim (Left Side) 2222553S Stainless Steel 2005925 Seal−Trim, Side 489464 Screw 8214656...
-
Page 4: Freezer Shelf Parts
FREEZER SHELF PARTS For Model: KSSC42FMS02 (Stainless Steel) Illus. Part DESCRIPTION 2302868 Wire Shelf 2266934 Front, Ice Compartment 2302883 Shelf, Fixed (2) 2259082 Basket 2256270 Front, Basket Slide, Basket 2259317 Right Side 2259318 Left Side 486194 Screw 2266955 Spacer 2266931 Ice Bucket 2302871 Cover, Shelf 8214656... -
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Model: KSSC42FMS02 (Stainless Steel) 8214656... - Page 6 REFRIGERATOR LINER PARTS For Model: KSSC42FMS02 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2306010 Thermistor 2208970 Air Duct 2209204 Clip, Thermistor 2259077 Ladder, Shelf (2) 520965 Screw Support, Ladder (4) 2006475 Screw 486194 Screw 2302986 Lid−Baffle, Meat Pan 2302987 Baffle Assembly Control 2171846 Release Valve...
-
Page 7: Control Panel Parts
CONTROL PANEL PARTS For Model: KSSC42FMS02 (Stainless Steel) Illus. Part DESCRIPTION 2302772 Control Box 2303938 Insert, Control 2302913 Circuit Board, Housing Control 2187424 Control Box Wire Harness 2221121 Support, Control Bracket 489006 Screw 2306086 Display Assembly, Ingredient Care Center 2162085 Socket, Light (2) 2255743 Light Bulb (2) 486194 Screw 8281185 Screw... - Page 8 TOP GRILLE AND UNIT COVER PARTS For Model: KSSC42FMS02 (Stainless Steel) Illus. Part DESCRIPTION Panel, Decorator 2257411S Stainless steel 2259320 Cover, Unit 487415 Screw 2256466 Back Panel 2302974 Cover−Unit, Front 2005292 Nameplate 2215910 Grommet 2004333 Nut 2254759 Bracket, Louver Grille, Louver 2254761S Stainless steel 488879 Screw 487415 Screw...
-
Page 9: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Model: KSSC42FMS02 (Stainless Steel) 8214656... - Page 10 REFRIGERATOR SHELF PARTS For Model: KSSC42FMS02 (Stainless Steel) Illus. Part DESCRIPTION 2222592 Shelf Assembly 2179404 Rack, Wine 2221071 Egg Bin 2302842 Glass, Meat Pan Assembly 2302835 Glass, Crisper Assembly 2257611 Trim, Glass (Side) 2169935 Cover 2257582 Trim, Glass (Rear) 2252412 Crisper Pan (2) Slide, Meat Pan 2302955 Right Side 2302954 Left Side...
- Page 11 FREEZER LINER AND AIR FLOW PARTS For Model: KSSC42FMS02 (Stainless Steel) 8214656...
- Page 12 FREEZER LINER AND AIR FLOW PARTS For Model: KSSC42FMS02 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2302777 Seal, Light Socket 2259385 Fan Motor 1112260 Support, 2306043 Assembly, Air Duct 2302850 Support, Air Duct Evaporator 2266801 Deflector, Air 2169142 Fan Blade 2196483 Stud, Shelf (20) Ice Maker...
-
Page 13: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Model: KSSC42FMS02 (Stainless Steel) 8214656... - Page 14 REFRIGERATOR DOOR PARTS For Model: KSSC42FMS02 (Stainless Steel) Illus. Part DESCRIPTION 2252330 Refrigerator Door (Includes Item #9) 2266854 Hinge Assembly, 2256381 Spacer−Door, 489282 Screw 2302878 Hinge Assembly, Bottom 2222796 Rail, Lid 2222982 Gasket, Utility Bin 2222811 Door Gasket, Magnetic Door Skin 2306156 Stainless Steel Handle, Door 2005290 Stainless Steel...
-
Page 15: Freezer Door Parts
FREEZER DOOR PARTS For Model: KSSC42FMS02 (Stainless Steel) 8214656... - Page 16 FREEZER DOOR PARTS For Model: KSSC42FMS02 (Stainless Steel) Illus. Part DESCRIPTION 2252327 Freezer Door (Includes #14) Skin, Door 2306160 Stainless Steel 2306398 Plate, Door−Handle 2302879 Hinge, Bottom 489282 Screw 2266854 Hinge, Top 2256381 Spacer−Door, 2258951 Brace, Door−Corner 2222814 Door Gasket, Magnetic 486194 Screw (34) Handle, Door...
- Page 17 UPPER UNIT PARTS For Model: KSSC42FMS02 (Stainless Steel) 8214656...
- Page 18 UPPER UNIT PARTS For Model: KSSC42FMS02 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2306957 Inverter Box 2155774 Wire Tie Following Parts Not Illustrated 489373 Screw, Compressor 2252363 Drier and Optional Parts Not Included Mounting (4) 2206036 Motor, Fan 2223393 Compressor 2190685 Blade, Fan (Includes Items...
- Page 19 LOWER UNIT AND TUBE PARTS For Model: KSSC42FMS02 (Stainless Steel) 8214656...
- Page 20 LOWER UNIT AND TUBE PARTS For Model: KSSC42FMS02 (Stainless Steel) Illus. Part DESCRIPTION 2306462 Defrost Bi−Metal 2187673 Wire Harness (Includes Item 1) 486194 Screw 2215508 Bracket 2302929 Side Support 2259303 Suction Tube 2259304 Tube, Connect (Drier/Restrictor) 2259329 Heater, Drain Pan 2209450 Hanger, Heater 2005908 Shield, Drain Pan 2259353 Tube, Discharge...
-
Page 21: Icemaker Parts
ICEMAKER PARTS For Model: KSSC42FMS02 (Stainless Steel) 8214656... - Page 22 ICEMAKER PARTS For Model: KSSC42FMS02 (Stainless Steel) Illus. Part DESCRIPTION 2221240 Heater, Fill Tube 2221231 Heat Shield 2187683 Wire Assembly, Fill Tube Heater 628379 Clip, Fuse 2214613 Tube, Filter Inlet 2314049 Water Inlet Tube Assembly 1106508 Seal Gasket 2302719 Tube, Filter Outlet 2313917 Valve, Solenoid 489115 Fastener, Snap−In...
