Illus.
Part
No.
No.
DESCRIPTION
1
Literature Parts
W10212195 Instructions,
Installation
W10260101 Energy Guide
W10157785 Guide, Use & Care
2
99002693 Insulation, Door
3
99003048 Barrier, Foam
4
Block, Foam
99003046 Left
99003047 Right
5
99003049 Wrap, Foam
6
Bracket, Hinge
W10118638 Left
W10118637 Right
6−11 Litho In U.S.A. (cre)(psw)

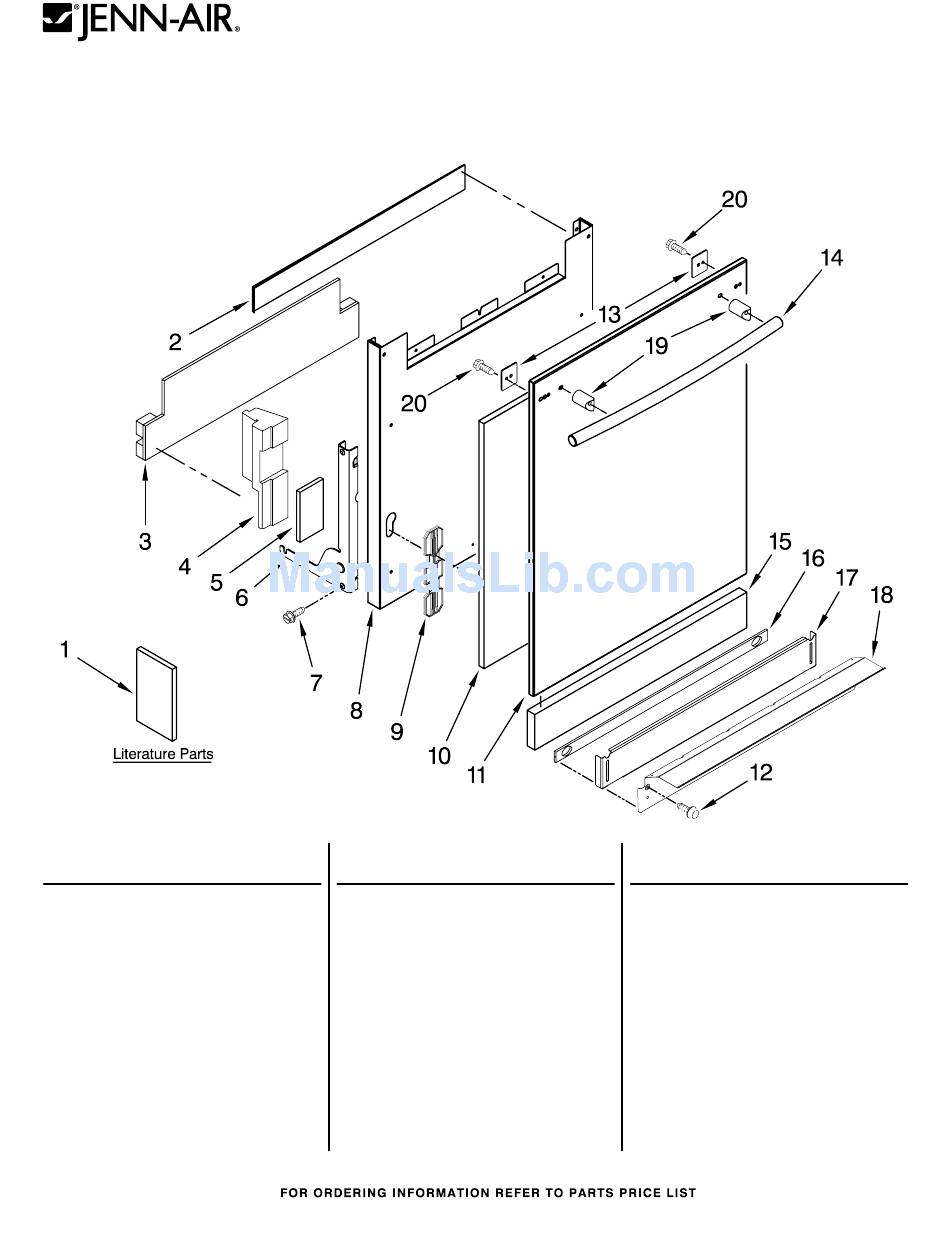

DOOR AND PANEL PARTS
For Models: JDB1275AWF1, JDB1275AWY1
(White)
Illus.
Part
No.
No.
DESCRIPTION
7
99001075 Screw
8
99003433 Support, Inner
Door
9
99003095 Anchor, Panel
Fastener
10
99003093 Pad, Foam
11
Panel, Front
99003090 Black (also order
99003444 Facia)
99003092 White (also order
99003445 Facia)
12
Screw
912366 Black
99001194 White
13 W10167659 Plate, Handle
Black
(Black)
Illus.
No.
14
15
16
17
18
19
20
1
UNDERCOUNTER
DISHWASHER
Part
No.
DESCRIPTION
99003088 Handle, Door
99002414 Insulation, Toe
Panel
Damper, Toe Panel
99002694 Black
99002698 White
Panel, Toe
(Includes Item 16)
99002765 Black
99002766 White
Support, Front
99002859 Black
99002860 White
6918667 Stud, Handle
99003154 Screw
Part No. W10267600 Rev. A
Advertisement
Related Manuals for Jenn-Air JDB1275AWF1
Summary of Contents for Jenn-Air JDB1275AWF1
- Page 1 DOOR AND PANEL PARTS UNDERCOUNTER DISHWASHER For Models: JDB1275AWF1, JDB1275AWY1 (White) (Black) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 99003088 Handle, Door Literature Parts 99001075 Screw 99002414 Insulation, Toe W10212195 Instructions, 99003433 Support, Inner Panel Installation Door Damper, Toe Panel W10260101 Energy Guide 99003095 Anchor, Panel Fastener...
-
Page 2: Control Panel Parts
CONTROL PANEL PARTS For Models: JDB1275AWF1, JDB1275AWY1 (White) (Black) Illus. Part DESCRIPTION 99002575 Housing, Board (Top) 2 W10218836 Board, Control 99002576 Housing, Board 4 W10161783 Panel, Control 99002751 Switch, Door 99003347 Latch, Assembly 99003096 Fastener, Panel W10267600... - Page 3 DOOR AND LATCH PARTS For Models: JDB1275AWF1, JDB1275AWY1 (White) (Black) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 99003308 Harness, Wiring 99003320 Dispenser, Rinse 99002465 Bracket, Dispenser 99003045 Seal, Door 912615 Screw (Bottom) 99003044 Insulation, Door Y912620 Screw, Door 99003060 Cap, Rinse Aid 6 W10203664 Inner Door W/ Damper...
- Page 4 LOWER WASHARM PARTS For Models: JDB1275AWF1, JDB1275AWY1 (White) (Black) Illus. Part DESCRIPTION 99003083 Cap, Wash Arm 99003144 Wash Arm, Lower (Includes Item 3) 3 W10218606 Shield, Radiant W10267600...
-
Page 5: Heater Parts
HEATER PARTS For Models: JDB1275AWF1, JDB1275AWY1 (White) (Black) Illus. Part DESCRIPTION 99002971 Heater Element Assembly W/ Gasket 99003033 Nut, Heater 99003032 Bracket, Heater Support NOTE: If heater element is removed, it must be replaced. W10267600... - Page 6 FILL AND OVERFILL PARTS For Models: JDB1275AWF1, JDB1275AWY1 (White) (Black) Illus. Part DESCRIPTION 99002852 Hose, Inlet 911856 Clamp, Spring 99002975 Valve, Water 4 W10205539 Switch, Float 99002652 Hose, Drain 6 W10130099 Float 99003028 Inlet, Air/Water 99003037 Standpipe, Float 99003040 Seal, Standpipe 10 W10130109 Holder, Float Switch W10267600...
- Page 7 TUB AND FRAME PARTS For Models: JDB1275AWF1, JDB1275AWY1 (White) (Black) W10267600...
- Page 8 TUB AND FRAME PARTS For Models: JDB1275AWF1, JDB1275AWY1 (White) (Black) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 1 W10119337 Strike, Door Gap Seal, 23 W10143258 Leg, Leveling 99002648 Bracket, Cabinet Toe Kick 24 W10164700 Strip,Trim Left Mounting 99002701 Black 99002638 Cover, Junction 6−912799 Screwr 99002703 White...
- Page 9 PUMP AND MOTOR PARTS For Models: JDB1275AWF1, JDB1275AWY1 (White) (Black) W10267600...
- Page 10 PUMP AND MOTOR PARTS For Models: JDB1275AWF1, JDB1275AWY1 (White) (Black) Illus. Part DESCRIPTION 99002666 Screw 2 W10166790 Guard, Filter 99002668 Screw 4 W10212444 Discharge, Housing Assembly 99002659 Wash Impeller Assembly 6 W10192800 Filter/Flowplate, Assembly 99003055 Gasket, Motor Mount 99003056 Lever, Motor Mount 99003057 Plunger, Motor Mount 99002651 O−Ring, Turbidity...
- Page 11 UPPER AND LOWER RACK PARTS For Models: JDB1275AWF1, JDB1275AWY1 (White) (Black) W10267600...
- Page 12 UPPER AND LOWER RACK PARTS For Models: JDB1275AWF1, JDB1275AWY1 (White) (Black) Illus. Part DESCRIPTION 1 W10203875 Dishrack, Upper 2 W10144736 Rail, Inner Slide 99003148 Wheel Assembly 99003252 Shelf, Cup 5 W10171451 Basket, Auxiliary 6 W10169391 Stop, Rail 99003070 Wash Arm 99003142 Wash Manifold Assembly 99003071 Clip, Upper Wash...
- Page 13 UPPER WASH AND RINSE PARTS For Models: JDB1275AWF1, JDB1275AWY1 (White) (Black) Illus. Part DESCRIPTION 99003081 Feed Tube Assembly 99002643 Bracket 99002753 Retainer, Top Wash Arm 99003143 Station, Docking (with Flapper) 99002911 Wash Arm, Top (with Retainer) W10267600...
- Page 14 OPTIONAL PARTS (NOT INCLUDED) For Models: JDB1275AWF1, JDB1275AWY1 (White) (Black) Illus. Part DESCRIPTION INSTALLATION KIT 8212488RC Kit, Installation (Includes Power Cord, 6 Ft. Fill Hose and Necessary Hardware for Installation) 4396897RP Kit, Installation (Includes 6 Ft. Fill Hose and Necessary Hardware for Installation) Moisture Barrier Kit 4396277 Kit...
