For Models: JDB1255AWB10, JDB1255AWW10, JDB1255AWS10, JDB1255AWR10
Illus.
Part
No.
No.
DESCRIPTION
1
Literature Parts
W10158012 Instructions,
Installation
W10119999 Energy Guide
W10164024 Guide, Use & Care
2
99002693 Insulation, Door
3
99003048 Barrier, Foam
4
Block, Foam
99003046 Left
99003047 Right
5
99003049 Wrap, Foam
6
Bracket, Hinge
W10118636 Left
W10118635 Right
7
99001075 Screw
03−08 Litho In U.S.A. (ebk)

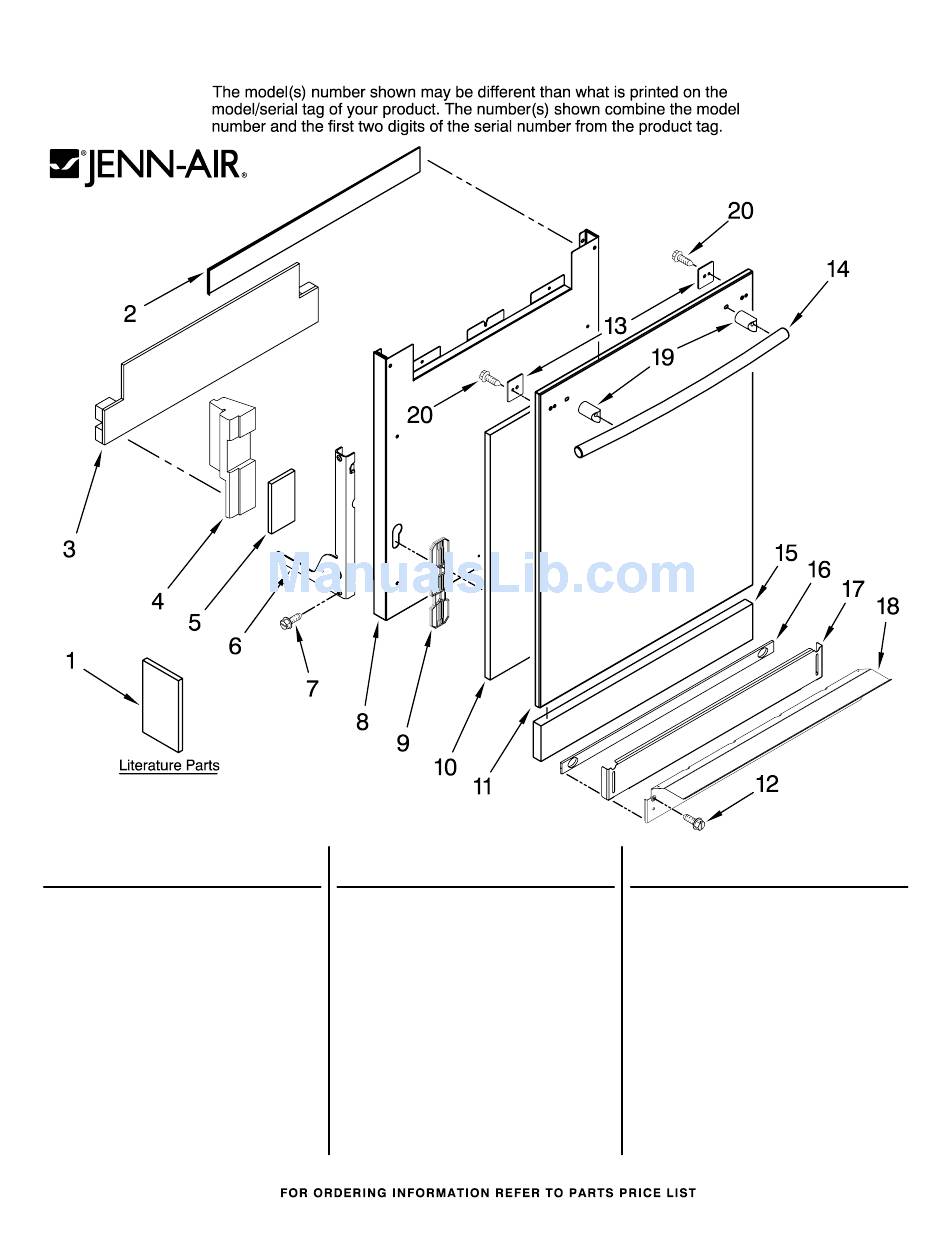

DOOR AND PANEL PARTS
(Black)
(White)
Illus.
Part
No.
No.
DESCRIPTION
8
99003094 Support, Inner
Door
9
99003095 Anchor, Panel
Fastener
10
99003093 Pad, Foam
11
Panel, Front
99003090 Black
99003092 White
W10166535 Stainless
W10111560 Oiled Bronze
12
912366 Black
99001194 White
13
99003097 Plate, Handle
Black
(Stainless)
Illus.
No.
14 W10191101 Handle, Door
15
16
17
Screw
18
19
20
1
UNDERCOUNTER
DISHWASHER
(Oiled Bronze)
Part
No.
DESCRIPTION
99002414 Insulation, Toe
Panel
Damper, Toe Panel
99002694 Black
99002698 White
Panel, Toe
(Includes Item 16)
99002765 Black
99002766 White
Support, Front
99002859 Black
99002860 White
Y6918667 Stud, Handle
99003154 Screw
Part No. W10191034 Rev. C
