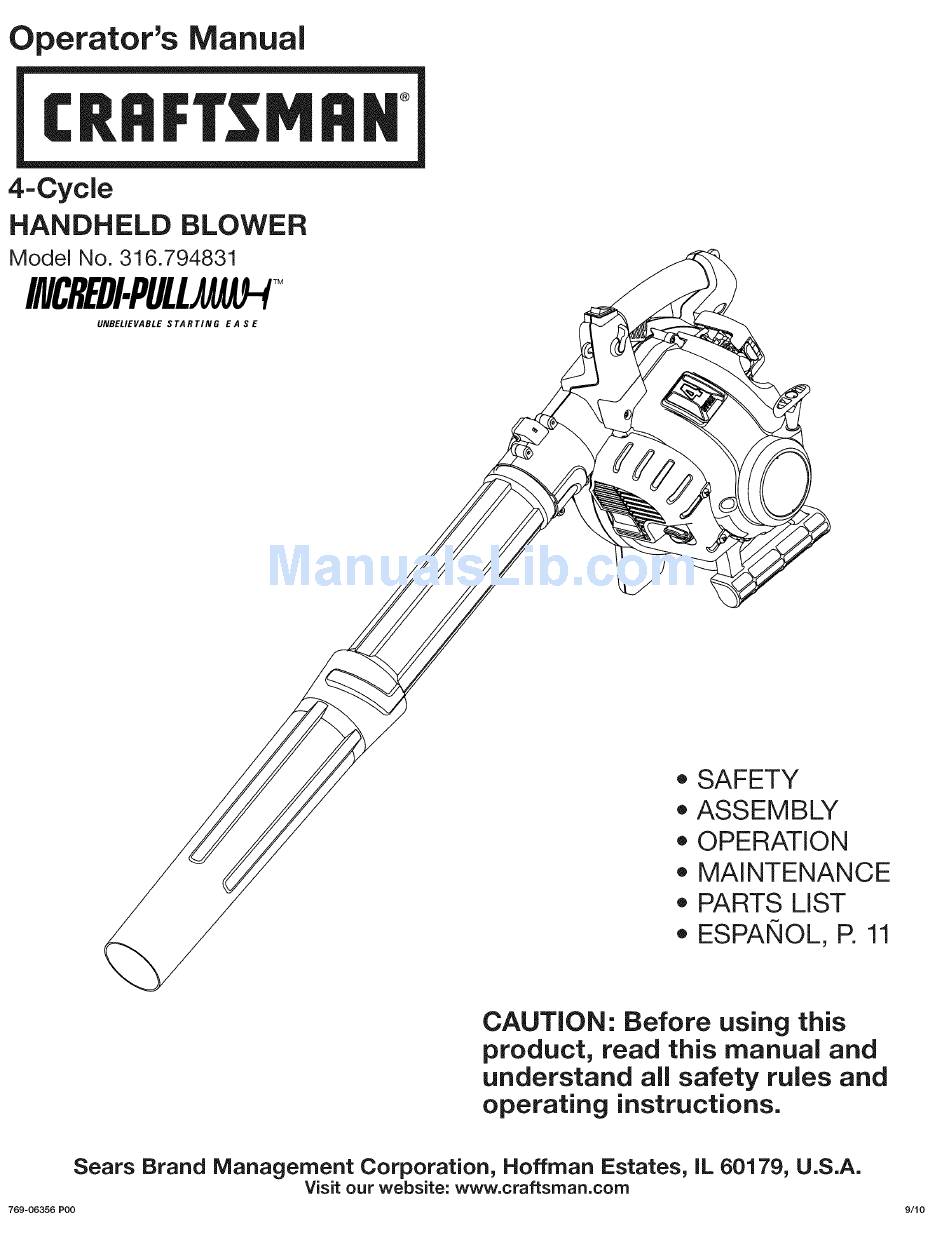

Craftsman INCREDI.PULL 316.794831 Operator's Manual

4-cycle handheld blower
Hide thumbs Also See for INCREDI.PULL 316.794831:

Advertisement

Available languages

Available languages

Quick Links

Download this manual
Operator's
Manual
4-Cycle
HANDHELD
BLOWER
Model No. 316.794831
INCREDI.PULL) tH
TM
UNBELIEVABLE
STARTING
E A S E
• SAFETY
ASSEMBLY
OPERATION
MAINTENANCE
PARTS LIST
ESPANOL, R 11
CAUTION: Before using this
product, read this manual and
understand
all safety rules and
operating instructions.
Sears Brand Management
Corporation,
Hoffman Estates, IL 60179, U.S.A.
Visit our website:
www.craftsman.com
769-06356
PO0
9/10

Advertisement

loading

Related Manuals for Craftsman INCREDI.PULL 316.794831

Summary of Contents for Craftsman INCREDI.PULL 316.794831

  • Page 1 • SAFETY ASSEMBLY OPERATION MAINTENANCE PARTS LIST ESPANOL, R 11 CAUTION: Before using this product, read this manual and understand all safety rules and operating instructions. Sears Brand Management Corporation, Hoffman Estates, IL 60179, U.S.A. Visit our website: www.craftsman.com 769-06356 9/10...

  • Page 2: California Proposition

    he purpose of safety symbols is to attract your attention to possible dangers. I CALIFORNIA PROPOSITION he safety symbols, and their explanations, deserve your careful attention I nd understanding. The safety warnings do not by themselves eliminate any I anger. The instructions or warnings they give are not substitutes for proper_ ccident prevention measures.

  • Page 3: Other Safety Warnings

    Do not o perate the engine faster than t he speed needed todothe job. D o Allow the engine to cool before storing or transporting. Be sure to secure not r un the engine athigh s peed when n ot i nuse. the unit while transporting.
  • Page 4 FOR 2 YEAR(S) from the date of purchase, this product is warranted against any defects in material or workmanship. Defective product will receive free repair or free replacement if repair is unavailable. For warranty coverage details to obtain repair or replacement, visit the web site: www.craftsman.com This warranty covers ONLY defects in material and workmanship. Warranty...
  • Page 5 RECOMMENDED OiL TYPE FUELING THE UNIT WARNING: WARNING: Add fuel in a clean, level and well ventilated OVERFILLING OIL CRANKCASE MAY CAUSE SERIOUS PERSONAL INJURY. Check and maintain the outdoor area. Wipe up any spilled fuel immediately. Avoid creating a source of ignition for spilled fuel. Do not start the engine until proper oil level in the crankcase;...

  • Page 6: Holding The Blower

    HOLDING THE BLOWER MAINTENANCE SCHEDULE Before operating the unit, stand in the Perform these required maintenance procedures at the frequency stated in operating position and check for the the table. These procedures should also be a part of any seasonal tune-up. following: NOTE: Some maintenance...
  • Page 7 AiR FILTER MAINTENANCE NOTE: Make sure to store the screws so that they can be reinstalled Rocker into their original holes. WARNING: Cover Screw To avoid serious personal injury, always turn the unit off and allow it to cool before cleaning or maintaining it. Disconnect the spark plug wire.
  • Page 8 CLEANING Allow the engine to cool. Remove the spark plug and put 5 drops of high quality motor oil into the cylinder. Pull the starter rope slowly to distribute Use a small brush to clean off the outside of the unit. Do not use strong the oil.
  • Page 9 REPAIR PROTECTION AGREEMENTS Congratulations on making a smart purchase. Your new Craftsman® product is designed and manufactured for years of dependable operation. But like all products, it may require repair from time to time. That's when having a Repair Protection Agreement can save you money and aggravation.
  • Page 11 • LISTA DE PIEZAS PRECAUCION: Antes de utilizar este producto, lea este manual y comprenda todas las reglas de seguridad e instrucciones de operaci6n. Sears Brand Management Corporation, Hoffman Estates, IL 60179, U.S.A. Visite nuestro sitio web: www.craftsman.com 769-06356 9/10...

  • Page 12: Del Estado De California

    EI prop6sito de los simbolos de seguridad es Ilamar su atenci6n sobret LA PROPOSICION 65 DEL ESTADO DE CALiFORNiA osibles peligros. Los simbolos de seguridad, y sus explicaciones, merecen I oda su atenci6n y comprensi6n. Las advertencias de seguridad no eliminan I ingQn peligro per si mismas.
  • Page 13 Mientras el motor este funcionando, no coloque el equipo sobre ninguna Para evitar el peligro de incendio, reemplace el silenciador y parachispas superficie, excepto sobre un area limpia y s61ida. La toma de aire pudiera defectuosos. Mantenga el motor y el silenciador sin hierbas, hojas, grasa recoger residuos tales como gravilla, arena, polvo, hierba, etc., los que excesiva, e incrustaciones de carb6n.
  • Page 14 Para conocer los detalles sobre la cobertura de la garantia para que sea reparado o reemplazado, visite el sitio web: www.craftsman.com Esta garantJa cubre SOLAMENTE defectos en el material o mane de obra.
  • Page 15 TIPO DE ACEITE RECOMENDADO ADVERTENCIA: La gasolina es sumamente inflamable. Los gases pueden explotar si se encienden. Detenga siempre ADVERTENCIA: ACEITE PUEDE CAUSAR LESIONES PERSONALES GRAVES. EL LLENAR DEMASIADO EL CARTER DE el motor y deje que se enfrie antes de Ilenar el tanque de Revise y mantenga el nivel de aceite adecuado en el carter;...
  • Page 16 PROGRAMA DE MANTENIMIENTO 8. Oprima el gatillo del acelerador y deje que el motor se caliente durante 30-60 segundos. Lleve a cabo estos procedimientos necesarios de mantenimiento con la Coloque la palanca del obturador en la PosiciCn 3 (Fig. 9) y continQe frecuencia indicada en la tabla.
  • Page 17 4. Vuelva a Ilenar el carter con 2.03 onzas fluidas (60 ml) de aceite SAE 30 • hay una perdida de la potencia del motor, Ileve la unidad a un distribuidor Sears o a un distribuidor de servicio calificado. SF, SG, SH (Fig. 17). HOLGURA DEL BALANCIN NOTA: Use la botella y la boquilla que guard6 desde la primera vez que...
  • Page 18 CAMBIO DE LA BUJJA DE ENCENDIDO ALMACENAMIENTO Use una bujia de encendido con el nOmero de pieza 753-05784 o una Nunca guarde la unidad con combustible en el tanque en un lugar en el bujia Champion #RDZ4H. La separaci6n correcta de la bujia es de 0.025 cual los vapores puedan Ilegar a una llama viva o una chispa.
  • Page 19 DE REPARAClON Felicidades por haber realizado una compra inteligente. Su nuevo producto Craftsman <_ esta diseSado y fabricado para ofrecerle aSos de funcionamiento confiable. Pero como todos los productos, es posible que sea necesario repararlo de vez en cuando. Ahi es cuando tener un Convenio de Protecci6n de Reparaci6n puede ahorrarle dinero y problemas.
  • Page 22 REPLACEMENT PARTS - MODEL 316,794831 4-CYCLE HANDHELD BLOWER item Part Description 753-05246 Muffler Screws 753-05900 Muffler Assembly (includes 1 & 3) 753-05244 Muffler Gasket 791-181025 Screw 753-05901 Rocker Cover 753-05902 O-Ring 791-181003 Screw 753-05903 Throttle Cable 753-05673 Insulator Gasket 753-05248 753-05904 Insulator 753-05905...
  • Page 23 REPLACEMENT PARTS - MODEL 316.794831 4-CYCLE HANDHELD BLOWER item Description 753-05917 Intake Cover 753-05918 Spring 753-04595 Screw 753-05919 Handle Grips 753-05920 Impeller Housing (includes 4) 753-05926 Latch Tube 753-05927 753-06444 Washer 753-05929 Impeller 753-05930 Throttle Trigger 791-181003 Screw 753-05931 Muffler Cover (includes 3) 753-05924 Inner Trigger Lock 753-05925...
