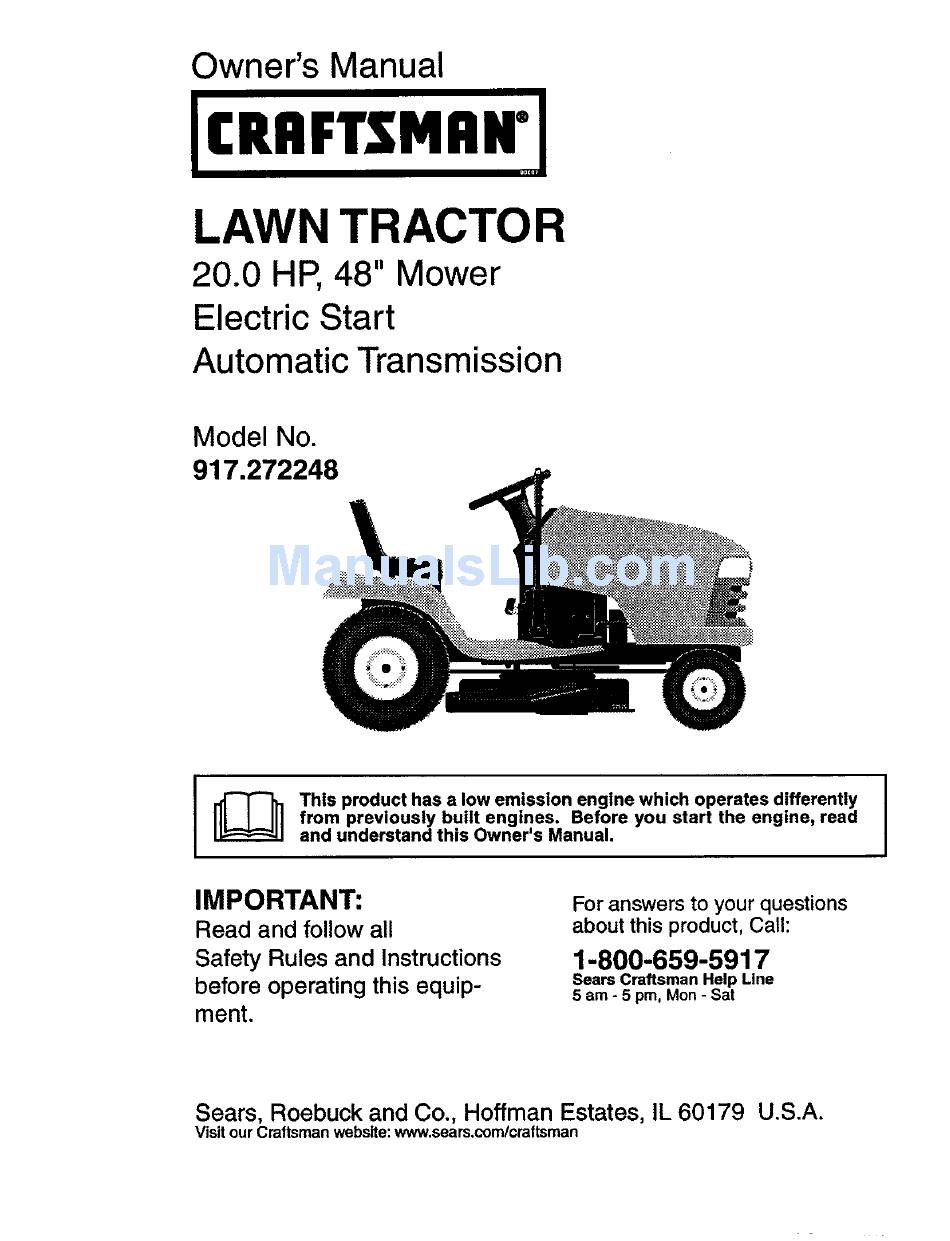

Owner's Manual
ICHFTSM.Wl
LAWN TRACTOR
20.0 HP, 48" Mower
Electric Start
Automatic Transmission
Model No.
917.272248
[_
This product
has a low emission
engine which
operates
differently
from previously
built engines.
Before
you start
the engine,
read
and understand
this Owner's
Manual.
IMPORTANT:
Read and follow all
Safety Rules and Instructions
before operating this equip-
ment.
For answers to your questions
about this product, Call:
1-800-659-5917
Sears Craftsman Help Line
5 am - 5 pm, Mon- Sat
Sears, Roebuck and Co., Hoffman Estates, IL 60179
U.S.A.
Visit our Craftsman webslte: www.sears,com/craltsman
