SERVICE AND ADJUSTMENT
HOW TO REPLACE
THE MOWER
DRIVE BELT
1.
Remove the mower housing. See the instructions on "How To
5.
Remove The Mower Housing".
2,
3,
4,
Pull the belt retainer away from the idler pulley and remove
the mower drive belt (Figure 39).
Pull the brake pad away from the jackshaft pulley and remove
the mower drive belt.
NOTE: Replace the mower drive belt with an original
equipment belt purchased from a Sears Service Center.
Install the new mower drive belt. Pull the brake pad away
from the jackshaft
pulley. Put the mower drive belt around
the jackshaft
pulley.
6,
7,
8,
Pull the belt retainer away from the idler pulley. Put the mow-
er drive belt around the idler pulley.
Make sure the "V" side of the mower drive belt is against the
jackshaft
pulley and the idler pulley.
Install the mower housing. See the instructions on "How To
Install The Mower Housing".
Before you mow, check the attachment clutch. See the instruc-
tions on "How To Adjust The Attachment
Clutch".

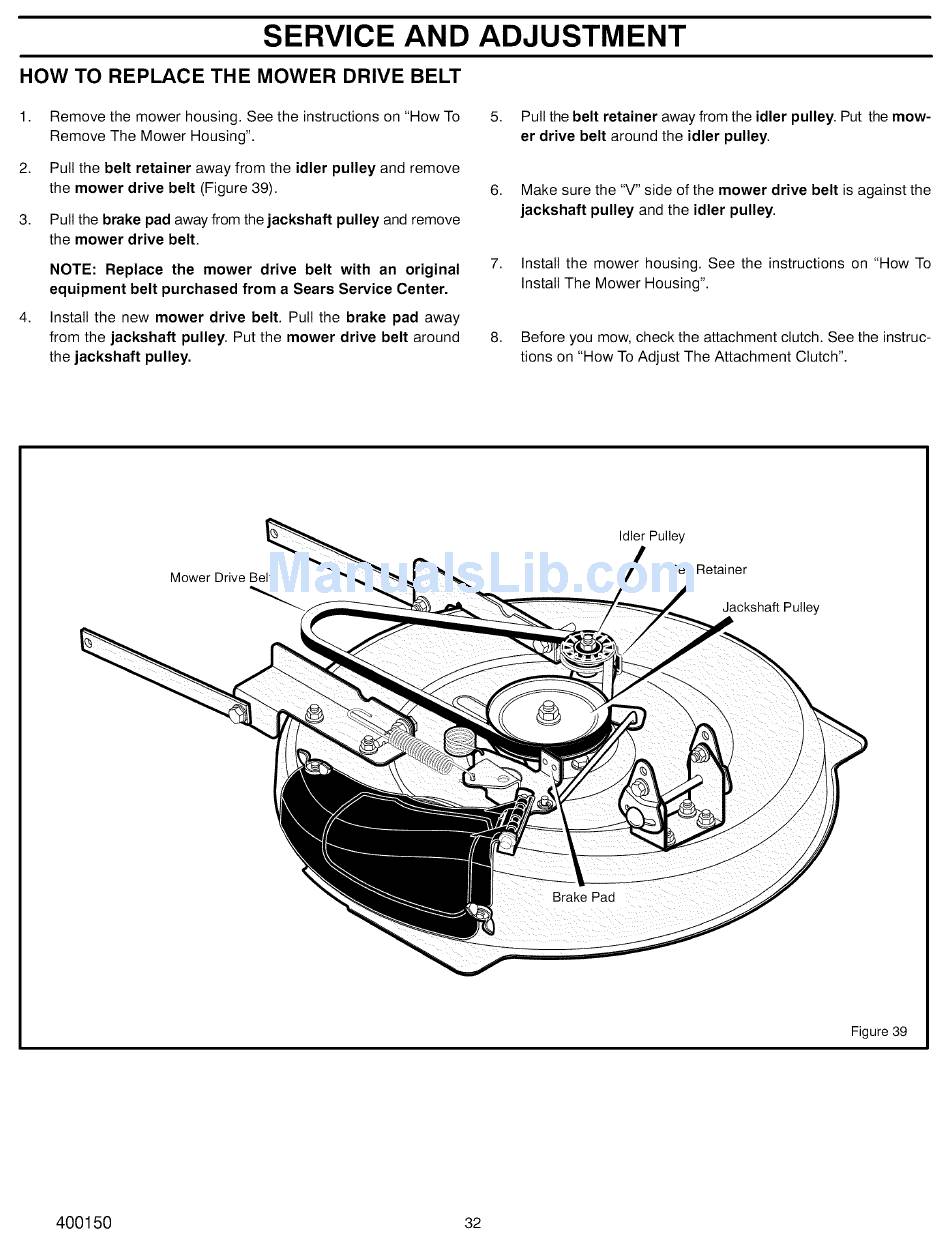

Mower Drive Belt
Idler Pulley
Belt Retainer
Jackshaft Pulley
Figure 39
400150
