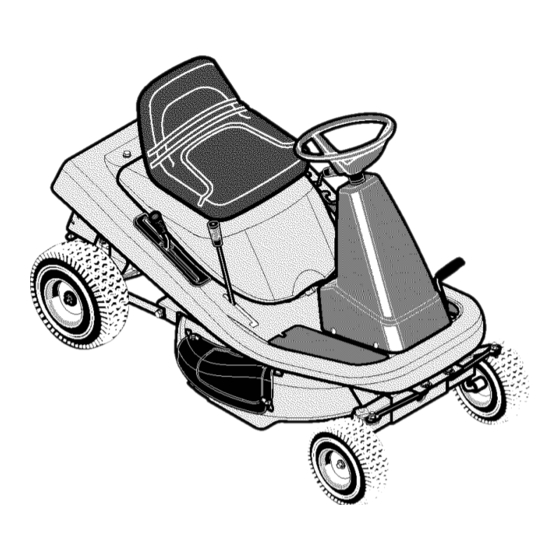

Craftsman 536.270281 Operator's Manual

Mid-engine rider 13.5 hp. electric start 30" mower/mulcher hydrostatic drive
Hide thumbs
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Download this manual
Operator's
Manual
(RRFTSMR
Mid-Engine Rider
13.5 HP. Electric Start
30" Mower/Mulcher
Hydrostatic
Drive
• Safety
• Operation
• Maintenance
• Parts
Model 536.270281
CAUTION:
Before using this
product, read this manual
and follow all of its Safety
Rules and Operating
Instructions.
Manual del usario
Tractor cortacdsped con motor
situado detr_s del asiento
Arranque el_ctrico de 13,5 caballos
Cortac_sped
/ trituradora de 76 cm.
Transmisibn
hidrostdtica
Modelo 536.270281
PRECAUCI6N:
Antes de usar este
producto, lea este manual y siga
todas las reglas de seguridad
e
instrucciones
de operaci6n.
• Seguridad
• Operacibn
• Mantenimiento
• Piezas
Sears, Roebuck and Co., Hoffman Estates, IL. 60179 U.S.A.
F-040601 C
www.sears.com/craftsman

Advertisement

Table of Contents
loading

Related Manuals for Craftsman 536.270281

Summary of Contents for Craftsman 536.270281

  • Page 1 • Seguridad Modelo 536.270281 • Operacibn • Mantenimiento PRECAUCI6N: Antes de usar este • Piezas producto, lea este manual y siga todas las reglas de seguridad instrucciones de operaci6n. Sears, Roebuck and Co., Hoffman Estates, IL. 60179 U.S.A. F-040601 C www.sears.com/craftsman...

  • Page 2: Product Specifications

    30 days of purchase, there will be no charges to replace the battery at your home. After the first 30 days, for your conve- nience, IN-HOME warranty service will still be available but a trip charge will apply. This charge will be waived if the Craftsman product is dropped off at an authorized Sears location.

  • Page 3: Specifications

    Congratulations on your purchase of a Craftsman Mid-Engine Rider. It has been designed, engineered and manufactured Craftsman Mid-Engine Rider give you the best possible dependability and performance. Record in the space below the serial number and the date of purchase of this unit.

  • Page 4: Safety Rules

    SAFETY RULES Safe Operation Practices for Ride*on Mowers ARNING: This cufting machine is capable of amputating hands and feet and throwing objects. Failure to observe following safety instructions could result in serious injury or death. 21. Data indicates that operators, age 60 years and above, are in- General operation volved in a large percentage of riding mower related injuries.

  • Page 5: Of The Owner

    SAFETY RULES Stop and inspect the equipment if you strike an object. Repair, Never carry children or any passengers, even with the blades off, They may fall off and be seriously injured or interfere with if necessary, before restarting. the safe operation of the machine, Never make adjustments or repairs with the engine running.
  • Page 6 SAFETY RULES INTERNATIONAL PICTORIALS DANGER: No Step. IMPORTANT: Some of the following pic- Flush Eyes Immediately With Water. torials are located on your unit or on Get Medical Help Fast. DANGER: Keep Feet And Hands literature supplied with the product. Be- IMPORTANT: Read Owner's Manual Away From Rotating Blade.
  • Page 7 PREPARATION PREPARATION Locate the two tear tabs at the top of the carton. Pull the tear tape no more than twelve inches at a time. Read and fellow the preparation instructions for your mower. All fasteners are in the parts bag. Do not discard any parts or material Re-grasp the tear tape next to the carton and pull again.
  • Page 8 PREPARATION MAINTENANCE FREE BATTERY Use a 12 volt battery charger to charge the battery. Charge at a rate of 6 amperes for one hour. If you do not have a battery IMPORTANT: Before you attach the battery cables to the charger, have a Sears or other qualified Service Center charge battery, check the battery date.
  • Page 9 PREPARATION HOW TO ENGAGE THE TRANSMISSION To allow the unit to be pushed, the unit was shipped with the automatic drive disconnect in the PUSH POSITION. Before operating, the automatic drive disconnect must be set in the DRIVE POSITION. (Figure 2) Automatic Drive Disconnect DRIVE POSITION The engine must be off.

  • Page 10: Operation

    OPERATION Ignition Stop _Run Clutch / Brake Pedal Start Attachment Clutch Parkiing Brake Speed Control Lever Lift Lever Throttle Control Lever Figure 3 damage. Always wear safety glasses or eye shields before starting your lawn mower and while mowing. We recom* The operation of any lawn mower can result in foreign objects thrown in the eyes, which can result in severe eye mend standard safety glasses or a wide vision safety mask worn over spectacles.
  • Page 11 OPERATION HOW TO STOP THE UNIT The electrical system has an operator presence system that Move the speed control lever to the NEUTRAL position. includes a sensor switch mounted in the seat. These components Set the parking brake. tell the electrical system if the operator is sitting on the seat. This system will stop the engine when the operator leaves the seat.
  • Page 12 OPERATION HOW TO USE THE ATTACHMENT CLUTCH Use the attachment clutch to engage the blade (Figure 6). Before you start the engine, make sure the attachment clutch is in the DISENGAGE position. To rotate the blade, move the attachment clutch forward to lock the blade in the ENGAGE position.
  • Page 13 OPERATION HOW TO USE THE SPEED CONTROL LEVER The Hydrostatic Drive is very easy to operate. The drive system has a a clutch/brake pedal on the left side (see Figure 9) and a speed control lever on the right side (see Figure 10). Clutch/Brake Pedal The speed and direction of travel is controlled by the speed control...

  • Page 14: How To Transport

    OPERATION SPEED CONTROL LEVER POSITIONS SPEED The forward speed is controlled by the position of the speed control FUNCTION CONTROL THROTTLE lever. The following chart provides functions along with the LEVER POSITION positions of the speed control lever. Always operate the engine with the throttle control in the FAST position.
  • Page 15 OPERATION HOW TO INSTALL THE SIDE DISCHARGE ATTACHMENT Remove the two wingnuts (see Figure 12). WARNING: To prevent the engine from starting, dis* connect the wire from the spark plug. Make sure the Lift the mulcher cover. Mount the side discharge attachment attachment clutch is in the DISENGAGE position.

  • Page 16: Before Starting The Engine

    OPERATION BEFORE STARTING THE ENGINE CHECK THE OIL CAUTION: Alcohol blended fuels (called gasohol or using ethanol or methanol) can attract moisture which leads to NOTE: The engine was shipped from the factory filled with SAE separation and formation of acids during storage. Acidic gas 30 weight oil.

  • Page 17: How To Operatewith The Mower Housing

    OPERATION HOW TO OPERATEWITH THE MOWER HOUSING WARNING: The mulch cover is a safety device. Do not CAUTION: Do not operate with the mower housing in the LEVEL ADJUSTMENT position. If you operate in the remove the mulch cover. The side discharge attach- LEVEL ADJUSTMENT position, the mower housing and ment forces...
  • Page 18 OPERATION OPERATING TIPS Check the attachment clutch for correct adjustment. For the Before you make an inspection, adjustment (except for the car blade(s} to disengage correctly the adjustment must be coF buretor) or repair, make sure the wire from the spark plug is dis_ tact.

  • Page 19: Maintenance

    MAINTENANCE MAINTENANCE TABLE FIRST EVERY EVERY EVERY EACH BEFORE PROCEDURE HOURS HOURS HOURS HOURS STORAGE Tires, Check Blade Inspect and Sharpen Battery, Check and Charge Battery, Clean Lubrication Oil, Cheek Oil, Change Cooling System, Clean Muffler, Check Air Filter, Clean Spark Plug Check Spark Plug, Replace GENERAL...
  • Page 20 MAINTENANCE INSPECT BLADE _ghten the nutthat holds the blade tea torque of 35 foot pounds. WARNING: Before you inspect or remove the blade, disconnect the wire to the spark plug, If the blade 4_lb hits an object, stop the engine, Check the unit for damage, The blade has sharp edges, When you hold the blade, use gloves or cloth material to pro- BladeAdapt...

  • Page 21: How To Charge The Battery

    MAINTENANCE MAINTENANCE FREE BATTERY Clean the terminals and the ends of the cables with a wire HOW TO REMOVE THE BATTERY brush To charge or clean the battery, remove the battery from the unit as follows. Install the battery. To prevent corrosion, apply grease to the battery terminals.
  • Page 22 MAINTENANCE WHERE TO LUBRICATE Apply grease with a brush to the areas shown Lubricate the areas shown with engine oil. NOTE: Apply grease to the steering gear assembly. CAUTION: If the unit is operated in dry areas that have sand, use a dry graphite spray to lubricate the unit.
  • Page 23 MAINTENANCE ENGINE HOW TO CHANGE THE OIL NOTE: Do not drain the oil from a cold engine. Before you drain HOW TO CHECK THE OIL the oil, let the engine run for several minutes. Make sure you do not get oil on the belts. NOTE: Do not check the level of the oil while the engine runs.

  • Page 24: How To Check The Spark Plug

    MAINTENANCE HOW TO CLEAN THE AIR FILTERS Some engines have two filters, an outer foam filter around an inner Assemble the air filters with the nut paper filte[ Clean the air filters every 50 hours If you operate in dirty conditions, service more often 12 Install the cover.

  • Page 25: How To Adjust

    SERVICE AND ADJUSTMENT HOW TO ADJUST CHOKE THE REMOTE THROTTLE CONTROL For the best engine performance, set the remote throttle control as follows. FAST Remote Throttle Move the remote throttle control to the FAST position (see Control Figure 22) SLOW The hole in the governor control lever (located just behind gow Figure 22 emor control plate) must align with the hole in the governor...

  • Page 26: Service And Adjustment

    SERVICE AND ADJUSTMENT HOW TO LEVEL THE MOWER HOUSING If the mower housing is level the blade will cut easier and the lawn will look better. Position WARNING: Before you make an inspection, adjust- ment, or repair to the unit, disconnect the wire to the spark plug Remove the spark plug wire to prevent the engine from starting by accident, Make sure the unit is on a hard flat surface.

  • Page 27: How To Adjust The Attachment Clutch

    SERVICE AND ADJUSTMENT HOW TO ADJUST THE ATTACHMENT CLUTCH Check the blade(s). Keep a sharp edge on the blade(s). A blade that is not sharp wiU cause the tips of the grass to become brown. ARNING: To prevent an injury, the attachment clutch must operate correctly.

  • Page 28: How To Install

    SERVICE AND ADJUSTMENT HOW TO REMOVE THE MOWER HOUSING HOW TO INSTALL THE MOWER HOUSING Move the attachment clutch to the DISENGAGE position Push the mower housing under the right side of the unit. Move the lift lever to the level adjustment position (Figure 30). Put the mower drive belt around the stack pulley, Make sure the "V"...
  • Page 29 SERVICE AND ADJUSTMENT HOW TO REPLACE THE MOTION DRIVE BELTS ENGINE DRIVE BELT REMOVAL Remove the mower housing See the instructions on "How To Remove The Mower Housing". Set the rear hitch on a 10 to 12 inch block The block must be high enough to raise the rear wheel of off the ground (see Figure 32).

  • Page 30: How To Replace

    SERVICE AND ADJUSTMENT HOW TO REPLACE THE MOWER DRIVE BELT Remove the mower housing. See the instructions on "How To Pull the belt retainer away from the idler pulley. Put the mow- Remove The Mower Housing". er drive belt around the idler pulley. Pull the belt retainer away from the idler pulley and remove the mower drive belt (Figure 37}.
  • Page 31 SERVICE AND ADJUSTMENT HOW TO ADJUST THE SPEED CONTROL LEVER WARNING: Before you make an inspection, adjust- Assemble the adjuster nut to the hydro actuator arm and ment, or repair to the unit, disconnect the wire to the secure with the hair pin. spark plug, Remove the wire from the spark plug to prevent the engine from starting by accident, Start the engine and test drive the unit.

  • Page 32: How To Install The Wheels

    SERVICE AND ADJUSTMENT HOW TO INSTALL THE WHEELS Cotter Pin If the wheels must be removed for service, make sure they are Hub Cap installed as follows. Washer Front Wheel Make sure the valve stern is to the outside of thetractor.Slide the front wheel on the spindle (See Figure 40}.
  • Page 33 SERVICE AND ADJUSTMENT HOW TO REPLACE THE FUSE THE ENGINE If _,e fuse is blown, the engine wiiI not slat1. The location ef the fuse Clean the dirt and grass from the engine. is next to the battery. Remove the fuse and replace with a 15 amp. automotive fuse (Figure 42).

  • Page 34: Troubleshooting

    TROUBLESHOOTING CHART Drain the fuel tank Clean the fuel line. Replace the fuel filter. PROBLEM: The engine will not start. Follow the stops, "How To Start The Engine" in this book PROBLEM: A hot engine causes a decrease in power. Electdc_Start Models: Clean the battery terminals.
  • Page 35 SEARS, ROEBUCK Federal and California Emission Control Systems Limited Warranty Small Off-Road Engines CALIFORNIA & US EPA EMISSION CONTROL WARRANTY must be presented of the date of sale to the original purchaser. The purchas- STATEMENT er shall pay any charges for making service calls and/or for transporting the products to and from the place where the inspection and/or warranty work The U.
  • Page 36 7.Throughout the ECS Warranty Period, Sears, Roebuck and Co. s hall EMISSION-RELATED PARTS INCLUDE FOLLOWING: maintain asupply ofwarranted emission-related parts s ufficient tomeet the 1. Carburetor Assembly and its Internal Components expected demand forsuch emission*related parts, a) Fuel filter 8.Any Sears, Roebuck and Co.

  • Page 37: Slope Guide

    SLOPE GUIDE Fold this page along dotted line indicated below. Hold page before you so that its left edge is vertically parallel to a tree trunk or other upright structure. Sight across the .../5 O_'p,_,,_ fold in the direction of the hill or slope you want to measure.

  • Page 38: Repair Parts

    MODEL 536.270281 REPAIR PARTS CHASSIS & HOOD 14 _ -/26 _.13 F-040601C...
  • Page 39 MODEL 536.270281 REPAIR PARTS CHASSIS & HOOD Part No. Description Part No. Description 690566 Seat 26x263 Screw 1401027E201 Hood 1401110 Rod, Hood Prop 017x47 Washer 1401147 Spring, Seat Deck 1001054 Bolt, Wing 1401297E701 Bracket, Prop Rod 26x201 Screw 002x53 Bolt, Carriage 15x116 Nut, NY-Lock 1401036E701...
  • Page 40 MODEL 536.270281 REPAIR PARTS STEERING ,"/31 F-040601C...
  • Page 41 REPAIR PARTS MODEL 536.270281 STEERING Part No. Description Part No. Description 095185 Wheel, Steering 1401099 Gear, Pinion 0711326 Cap, Steering (Black) 01x146 Bolt, Hex 1401067 Console, High (Black) 011x28 E-Ring, Retainer 26x270 Screw 030x35 Pin, Cotter 1401090 Bearing, Upper Steering 094131 Retainer, Spring 1401100...
  • Page 42 MODEL 536.270281 REPAIR PARTS MOTION DRIVE 37 _ F-040601C...
  • Page 43 REPAIR PARTS MODEL 536.270281 MOTION DRIVE Part No. Description Part No. Description 031x4 Pin, Hair Engine 1401104 Guide, Belt-Short 091309 Gasket, Muffler 1401032E701 Bracket, Lift Pivot 091271 Muffler 1401307 Z Rod, Shift Link 092378 Lock, Muffler Screw 092697 Grip 01x134 Bolt, Hex 1401148 Nut, Adjusting...
  • Page 44 MODEL 536.270281 REPAIR PARTS MOWER HOUSING SUSPENSION F-040601C...
  • Page 45 MODEL 536.270281 REPAIR PARTS MOWER HOUSING SUSPENSION PaN No. Description Part No. Description 092697 Grip, Lift Lever 015x84 Nut, Flange 1401117 Lever, Lift 1401147 Spring, Leaf 165x154 Spring, Extension 1401040 Hanger, Front 094137 Pad, Friction 1401116 Lever, PTO 017x45 Washer 26x263 Screw 095004...
  • Page 46 MODEL 536.270281 REPAIR PARTS MOWER HOUSING 60 -- F-040601C...
  • Page 47 REPAIR PARTS MODEL 536.270281 MOWER HOUSING Part No. Description Part No. Description 009x73 Bolt, Shoulder 37x111 Belt, Blade Drive 030x20 Pin, Cotter 1401092 Pulley, Input 1401185E701 Arm Assembly, Brake 15x140 Locknut 1401119 Link, Idler Arm 015x98 Nut, Flange 0025x7 Bolt 1401252 Pultey, ]diet 1401052E701...
  • Page 48 MODEL 536.270281 REPAIR PARTS ELECTRICAL SYSTEM ORANGE I RUNll B+L SOLBqOID IGNIIlION 81M TCH 'vl EWB) FROM BACK PLUG SEAT SWITCH gEATSVRTCH UKQCCUPD .-r- BLACK TEnOrPORT YELLOW PTOSlmltH DISENGAGED PTOOFF "el.LOW ORANGE F-040601C...
  • Page 49 MODEL 536.270281 REPAIR PARTS ELECTRICAL SYSTEM Part Description 250x115 Harness, Chassis Wire 1401149 Switch, Ignition 327349 Key, Ignition Nut, Hex Cap, ignition 1001575 Switch, Limit 054212 Fuse 407078 Holder Fuse 094613 Solenoid 26x229 Screw, Mounting Locknut 15x116 024x37 Cable, Battery Ground Screw, Ground Cable 092739 Battery...
  • Page 50 NO STEP (Mower Deck - Left Side) 48x5211 Clutch / Brake ( Footrest -Left Side) 48x236 Cut Finger (Mower Deck -Right Side) 48x5206 Craftsman 13.5 (Hood -Right Side) 48x5207 Craftsman 13.5 (Hood -Left Side) 44x5214 Deck Level Position / ONLY (Seat Deck -Left Side) 48x5057...
  • Page 51 NOTES F-040601C...
  • Page 52 MODEL 536.270281 ENGINE 28R707-1120-E1 I 1019 KIT-LABELI ILOS8 OWNER'S MANUAL 307_ 13A_ 322_ '58 1 _ F-040601C...
  • Page 53 MODEL 536.270281 ENGINE 28R707-1120-E1 PART PART PART DESCRIPTION DESCRIPTION DESCRIPTION 496413 ..Note ..691003 Screw Cylinder Assembly 399265 Kit-Bushing/Seal 696404 Ring Set (Cylinder Shield) 491490 (Magneto Side) (,010" Oversize) Cover*Cylinder Head *391086 Seal-Oil 696405 Ring Set (Used Before Code Date (Magneto Side) (,020"...
  • Page 54 MODEL 536.270281 ENGINE 28R707-1120-E1 1251 130_ 692 | 634_ 137_ 1091_ 106_ 634A _ 9870 265_ _ 505@ 267 _ 562_ 209@ 334_ 1119 _ F-040601C...
  • Page 55 MODEL 536.270281 ENGINE 28R707-1120-E1 PART PART PART DESCRIPTION DESCRIPTION DESCRIPTION 691711 Manifoldqntake 494885 Kit_Throttle Shaft 691061 Screw 131A 494379 Kit_Throttle Shaft 51 e.692284 Gasketqntake (Magneto Armature) 51A*®272554 Gasketqntake 494381 Float-Carburetor 691691 Washer 691098 Stud 137 e,281165 Gasket_FIoat Bowl (Governor Crank) 495097 Kit_Choke Shaft 696459...
  • Page 56 MODEL 536.270281 ENGINE 28R707-1120-E1 11036 LABEL-EMISSION 5251 1 ,,_=/ 842 t 3o5_ 344% 11 _76 668A _ 185@ 733 _ 305A_ 1070_ 1005 F-040601C...
  • Page 57 MODEL 536.270281 ENGINE 28R707-1120-E1 PART PART PART DESCRIPTION DESCRIPTION DESCRIPTION 691328 Tube-Breather 692198 Screw (Starter Drive Cover) 693557 691658 Screw Flywheel (Blower Housing) 690456 305A 692127 Screw Guard*Flywheel (Crankshaft Extension) 691748 693713 Gear*Pinion Screen*Rotating (Blower Housing) 691655 Screw 19203 Flywheel Puller 698329 Wire Assembly 496894...
  • Page 58 MODEL 536.270281 ENGINE 28R707-1120-E1 310_ 358 ENGINE GASKET _802 176/ i24j_ 10901 691 @ 51A_ "" 462 121 CARBURETOR OVERHAUL 797A _ 8011 106 _ 276 _ 503< 634_ 105_ 231 _ lO4_ 634A_ 697_ 977 CARBURETOR GASKET 276 _ 544A ! 803A_ 1095 VALVE GASKET...
  • Page 59 MODEL 536.270281 ENGINE 28R707-1120-E1 PART PART PART DESCRIPTION DESCRIPTION DESCRIPTION *391086 Seal-Oil 276 e,692255 (Drive Cap) Washer-Sealing 693551 Motor-Starter 691224 Clip-Wire (Magneto Side) 309A Motor-Starter 693713 Gear-Pinion 7 _.271866 Gasket-Cylinder Head 9 _.27803 Gasket-Breather 783A 693059 Gear-Pinion (For Replacement *692226 Gasket-Crankcase Starter Motor, See Ref.
  • Page 60 MODEL 536.270281 _i=- ... F.0406010...
  • Page 61 MODEL 536.270281 PEERLESS HYDRO 2000-2000-018 109A 200A 210A 99 102 104 F-040601C...
  • Page 62 MODEL 536.270281 PEERLESS HYDRO 2000-2000-018 PaN No. Description Part No. Description 772152 788088A Oil Seal .750 Cover RH (Mach) 770136 792141 Washer .3771D .058W Case RH (Cast) 776441 Counter Shaft 792200 Snubber Washer 778263 792184 Washer .4371D. 078W Spur Gear 11T 786197 Neutral Sleeve .572L 792193...

  • Page 63: Trouble Shooting Chart

    INDEX Mulcher, Operation, 18 Mulcher Cover, Remove, 15 Adjustments Filter, Air, 24 Clutch, 31 Fuel, Type, 16 Mower Housing, Level, 26 Fuse, 33 Air Screen, 23 Change, 23 Attachments, 17 Check, 16, 23 Automatic Drive Disconnect, Type, 16 Operation, 12 Operation Ignition Switch, Location, 10 Attachments,...
  • Page 64 NOTES F-O30614L...
  • Page 65 A DOMICILIO estar_ disponible todavia despues de los primeros 30 dias de la fecha de compra, pero se aplicar& a este servicio un cargo por el viaje. Este cargo no ser_ aplicado si Ileva el Craftsman producto a un Centro de Servicio Sears autodzado.

  • Page 66: Especificaciones

    Felicidades por su compra de este Tractor cortac6sped Tractor cortacdsped con motor motor situado detr_s del asiento de Craftsman. Su unidad ha sido situado detrbs del asiento diseSada y fabricada para dade los mejores resultados en Io que Anote en los espacioscorrespondientes,el nt_merode serie se refiere a confiabilidad y desempefio.

  • Page 67: Reglas De Seguridad

    REGLAS DE SEGURIDAD Practicas de operacion segura para vehiculos autoportados Basadas en tas recomendaciones del tnstituto de Estbndares Nacionales de Estados Unidos de America respetar las instrucciones de seguridad a continuacion podria resuttar en lesiones graves o ta muerte del operador o PRECAUCION: Esta mbquina cortadora es capaz de amputar manos y pies y de lanzar objetos con mucha fuerza.
  • Page 68 REGLAS DE SEGURIDAD Evite tener que arrancar el motor o parado en una cuesta. Nunca arranque el motor ni Io deje en marcha dentro de un recinto cerrado. Si los neum&ticos pierden traccidn, desembrague la cuchF Ila(s) y contint_e despacio directamente hacia el pie de la Mantenga todas las tuercas y pernos apretados, especial- cuesta.

  • Page 69: Simbolos Internacionales

    REGLAS DE SEGURIDAD SIMBOLOS INTERNACIONALES El acido salf_rieo puede causar ceguera o PELIGRO: No pisar. quemaduras graves. PELIGRO: Mantenga los pies y las manes IMPORTANTE: Los siguientes simbo|os Limpie los ojos inmediatamente con agua. a una distancia segura de la cuchilla en estan ubicados en su unidad o indica- Consiga asistencia m_dica inmediatamente.
  • Page 70 PREPARACION PREPARACIC)N Ubique las dos lengOetas de separaci6n ubicadas en la parte superior de la caja de cart6n. Lea y siga las instrucciones de preparaci6n para su cortac6sped. Jale la cinta de separaci6n por mas de doce pulgadas a la vez. Todos los sujetadores se encuentran en la bolsa de piezas.
  • Page 71 PREPARACION BATERiA LIBRE DE MANTENIMIENTO Use un cargador de baterias de 12 voltios para cargar la bateria, C_rguela a una velocidad de 6 amperios por hora, Si IMPORTANTE. Antes de conectar los cables de bateria a la no tiene un cargador, Ileve la bateria a un centro autorizado bateria, compruebe la fecha de la misma.
  • Page 72 PREPARACION C(_MO CONECTAR LA TRANSMISI(_N NOTA: En cilia frio, la alta viscosidad del aceite de transmisibn hara que ta unidad sea dificil de empujar. Para poder empujada, la unidad fue enviada de fabrica con la barra de desconexion automatica de la transmisibn en la POSICION DE EMPUJE.
  • Page 73 OPERACION Interruptor de encendJdo Stop 4_) Run Pedal de embrague y freno Start Embrague de aditamento Palanca de freno de estacionamiento Palanca de control de velocJdad Palanca de elevaci6n Palanca de control de Figura 45 La operacion de cuatquier cortadora de c_sped puede causar el lanzamiento de objetos extrafios y lesionar los ojos, to cual puede resultar en dafios graves a la vista.
  • Page 74 OPERACION COMO DETENER LA UNIDAD El sistema el_ctrico tiene un sistema que detecta la presencia del Mueva la palanca de control de velocidad a la posici6n NEU_ TRO. operador, el cual incluye un sensor conectado al asiento. Estos componentes le indican al sistema el_ctrico si el operador esta Enganche el freno de estacionamiento.
  • Page 75 OPERACION COMO USAR EL EMBRAGUE DE ADITAMENTO El embrague de aditamentos se usa para enganchar la cuchilla (Figura 48). Antes de arrancar el motor, aseg0rese de que el embrague de aditamentos este en la posicibn DESEMBRAGUE Para que la cuchilla empiece a girar, mueva el embrague aditamentos hacia adelante para bloquear la en la posici6n de EMBRAGUE,...
  • Page 76 OPERACION COMO USAR LA PALANCA DE CONTROL DE VELOCIDADES La transmisi6n hidrost_tica es muy f_cil de operar. El sistema de transmisi6n tiene un pedal de embrague / freno en el lado izquierdo Pedal de (Figura 51) y una palanca de control de velocidades y direcci6n en embrague/freno el lado derecho (Figura 52).
  • Page 77 OPERACION POSICIONES DE LA PALANCA POSICI(_N DE FUNCION CONTROLDE DE CONTROL DE VELOCIDADES ACELERACION LA PALANCADE La velocidad de avance se controla por la posicidn de la palanca CONTROLDE VELOCIDADES de control de velocidades, El cuadro siguiente incluye las funciones junto con las posiciones correspondientes de la palanca de control de velocidades, Siemj0re opere el motor con el control de aceleracibn...
  • Page 78 OPERACION COMO DE INSTALAR EL ADITAMENTO PARA DESCARGA LATERAL Levante lacubierta para trituradora, Monte el aditamento de ADVERTENCIA. Para evitar que el motor arranque, desconecte el cable de la bujia+ El embrague del adi- descarga lateral en los mismo pernos que sujetaban ]a cu- tamento tiene que estar en la posicion de DESEM- bierta para trituradora, BRAGUE.
  • Page 79 OPERACION ANTES DE ENCENDER EL MOTOR REVISE EL ACEITE PRECAUCt(_N: combustibles mezclados alcohol (llamados gasohol o aqueUos que usan etanol o metanol), NOTA: La unidad fue enviada desde la f_bdca con el motor Ileno pueden atraer humedad Io cual causa la separacibn y formacibn de aceite SAE, peso 30.
  • Page 80 OPERACION C()MO OPERAR, CON EL CARTER DE LA CORTADORA Mueva el acelerador a la posici6n LENTO, ADVERTENCIA: La cubierta para trituradora es un dispositivo de seguridad. No la quite. El deflector fuerza el material cortado hacia la tierra. Mant_ngato Mueva el embrague de aditamento a la posici6n de ENGAN- siempre en la posicion hacia abajo.
  • Page 81 OPERACION SUGERENCIAS PARA LA OPERACI()N Examine el embrague de aditamentos para el ajuste correcto. AsegQrese de que el cable de interruptor del asiento est6 co* Para que la cuchilla (o cuchillas) desenganche correctamente, nectado. Si el cable no esta conectado, no se encendera el mo- tor.

  • Page 82: Mantenimiento

    MANTENIMIENTO TABLA DE MANTENIMIENTO Cads Cads Cads Primeras Cada Antesde PROCEDIMIENTO h0ras h0ras horss horss guardar Cuchilla, Inspeccionar y Afilar Bateria, Revisar y Cargar Lubricaci6n Aceite, Cambiar Silenciador, Revisar RECOMENDACIONES GENERALES El propietario es responsable de dar mantenimiento a este pro- Siga las indicaciones de las secciones de Mantenimiento y de ducto.
  • Page 83 MANTENIMIENTO INSPECCION DE LA CUCHILLA tuerca que sujeta la cuchilla. Una tuerca o cuchUla DVERTENCIA: Mantenga siempre apretada la floja puede causar un accidente. cuchilla, desconecte el cable de la bujia. Si la cu- DVERTENCIA: Antes de inspeccionar o sacar la Apriete la tuerca que sujeta la cucbilla con un par de apriete chilla golpea un objeto, pare el motor.
  • Page 84 MANTENIMIENTO BATERiA LIBRE DE MANTENIMIENTO COMO DESMONTAR LA BATERiA Limpie los bornes y los extremos de los cables con un cepillo para cables, Si necesita cambiar o limpiar la bateria, desm6ntela de la siguiente Instale la bateria, manera. Aplique grasa a los bornes para prevenir la corrosiSn. ADVERTENCIA.
  • Page 85 MANTENIMIENTO DONDE LUBRICAR Lubrique con aceite de motor las _reas mostra- das, Aplique grasa con un cepillo alas areas mostra* das, NOTA: Aplique grasa al ensamblado del mecanismo direccion. PRECAUCION: Si la unidad se opera en _reas _ridas donde hay arena, uti|ice potvo de grafito seco para lubricar la unidad, Figura 60 F-040601C...
  • Page 86 MANTENIMIENTO MOTOR COMO CAMBIAR EL ACEITE NOTA: No drene aceite de un motor frio. Antes de drenar el C()MO REVISAR EL ACEITE aceite, deje que el motor funcione durante varios minutos. Asegt_rese de no derramar aceite en tas correas, NOTA: No revise el nive| del aceite mientras que el motor est_ en marcha.
  • Page 87 MANTENIMIENTO COMO LIMPIAR LOS FILTROS DE AIRE Algunos motores tienen dos filtros, un filtro de goma espuma 10, Si el filtro de papel est_ muy sucio, reemplacelo. exterior alrededor de un filtro de papel interno, Limpie los fiJtros de 11, Ensamble los filtros de aire con la tuerea. aire despues de cada 50 horas de funcionamiento, Si Ud, opera la m&quina en condiciones donde hay mucha suciedad o polvo, limpie...

  • Page 88: Servicio Y Ajuste

    SERVICIO Y AJUSTE COMO AJUSTAR CONTROL DE ACELERACI()N REMOTO Para obtener un rendimiento 6ptimo del motor, ajuste el control de aceleraci6n remoto de la siguiente manera. Control de aceleraci6n Mueva la palanca del control de aceleracibn remoto a la po_ remoto sici6n IR/kPIDO (Figura 64).
  • Page 89 SERVICIO Y AJUSTE COMO NIVELAR EL CARTER Para que la cuchilla corte con facilidad y el c6sped tenga meier aspecto es necesario que el carter del cortacesped este nivelado. Posici6n de aiuste de nivel ADVERTENCIA. Antes de inspeccionar, ajustar o re- parar la unidad, desconecte el cable de la bujia.
  • Page 90 SERVICIO Y AJUSTE C0M0 AJUSTAR EL EMBRAGUEDE ADITAMENT0 4. Reviselascuchillas.Aseg6resedequeest6nbienafiladas. S i no Io estan, las puntas del c6sped se secar&n. DVERTENCIA: El embrague de aditamento tiene que funcionar correctamente para evitar lesiones, Si at3n as[ el corte no mejora, cambie la correa de transmi- si6n.
  • Page 91 SERVICIO Y AJUSTE CC)MO DESMONTAR EL CARTER C(_MO INSTALAR EL CARTER Empuje el carter per debajo del lade derecho de la unidad. Mueva el embrague de aditamento a la posici6n de DESEM* BRAGUE, Ponga la correa de transmisibn alrededor de la polea doble. El lado en forma de "V"...
  • Page 92 SERVICIO Y AJUSTE COMO REEMPLAZAR CORREA DE PROPULSION REMOCION DE LA CORREA DE PROPULSION DEL MOTOR Desmonte el carter cortacesped. Consulte ;nstrucciones en la secci6n "C6mo desmontar el carter del cortacesped". Coloque el enganehe trasero sobre un bloque de 10 a 12 pulgadas.
  • Page 93 SERVICIO Y AJUSTE COMO CAMBIAR LA CORREA DE TRANSMISION DEL CORTACI_SPED Desmonte el carter del cortacesped, Consulte "C6mo desmom Separe el retenedor de la correa de la polea tensora. Colo- tar el carter", que la correa de transmision alrededor de la polea tensora. Separe el retenedor de la correa de la potea tensora y saque El lado en forma de "V"...
  • Page 94 SERVICIO Y AJUSTE COMO AJUSTAR LA PALANCA Si la unidad se movia lentamente hacia atr_s cuando la palan- ca de control de velocidades estaba en la posicidn NEUTRO, DE CONTROL DE VELOCIDADES entonces gire la tuerca ajustable hacia la izquierda (hacia atr_s), una o dos vueltas.

  • Page 95: Como Instalar

    SERVICIO Y AJUSTE COMO INSTALAR LAS RUEDAS Chaveta Si necesita sacar las ruedas, vuelva a instaladas de Ja siguiente manera. Tapacubos \ Arandeta Arandela Rueda delantera El v_stago de v_tvula tiene que quedar hacia la parte exterior del tractor. Deslice la rueda delantera en la mangiJeta.
  • Page 96 SERVICIO Y AJUSTE COMO REEMPLAZAR EL FUSIBLE LUBRICACION DE LA UNIDAD Si el fusible esta fundido, no se encender& el motor. La ubicaci6n Vea las instrucciones sobre "D6nde lubricar" en la secci6n de del fusible esta al lado de la bateria. Quite el fusible y reemplacelo Mantenimiento.
  • Page 97 TABLA DE LOCALIZACION DE AVERIAS PROBLEMA: El motor no se enciende. Ajuste el acelerador. Siga los pasos de "C6mo encender el motor" en este manual. Drene el tanque de combustible. Limpie la linea de combusti- Limpie los bomes de la bateria. Apriete los cables.

  • Page 98: Nota Importante

    SEARS, ROEBUCK Garantia limitada de cumplimiento con el Sistema Federal de control de emisiones y con el sistema de control de emisiones del Estado de California Motores pequehos no aptos para carretera (off=road) NOTA IMPORTANTE CONTROL DE EMISIONES DE CALIFORNIA Y DE LA AGENCIA DE PROTECCI(_N...

  • Page 99: Estates, Il

    2.Cualquier parte garantizada yrelacionada con emisiones que este e speci- empeSo de coalquier mantenimiento o cambio de la Garantia SCE, Ia coal ficada s61o para i nspecoiones regulares conforme alManual del P ropietario se proporcionara sin cargo aiguno para el propietario. Dicho uso no reducira deber_ estar garantizada por e lPeriodo delaGarantia SCE.
  • Page 100 NOTAS F-040601C...

  • Page 101: Guiade Inclinacion

    GUIADE INCLINACION Doble esta hoja a Io largo de la linea de puntos indicada mas abajo. Sostenga la hoja frente a usted de manera que el borde izquierdo quede paralelo al tronco de un arbol u otra es- tructura erecta. Mire hacia el frente sobre el doblez en la direccibn de la inclinacibn de la...
  • Page 102 NOTAS F-040601C...
  • Page 103 INDICE Inspecci6n, 83 Parachispas, 72 Preparaci6n, 72 Aceite Rejilla parachispas, 86 Silenciador, 86 Cambiar, 86 Desconexi6n autom_tica, Operaci6n, 75 Sistema de enfriamiento, 86 Revisar, 79, 86 Tipo, 79 Aditamento para descarga lateral, Embrague Instalar, 78 Operaci6n Ajustar, 94 Aditamentos, 80 Aditamentos, 80 Revisar, 94 Arrancar el motor, 79...
  • Page 104 Your Home For repair-in your home-of all major brand appliances, lawn and garden equipment, or heating and cooling systems, no matter who made it, no matter who sold it! For the replacement parts, accessories owner's manuals that you need to do-it-yourself. For Sears professional installation of home appliances and items like garage door openers and water heaters.
