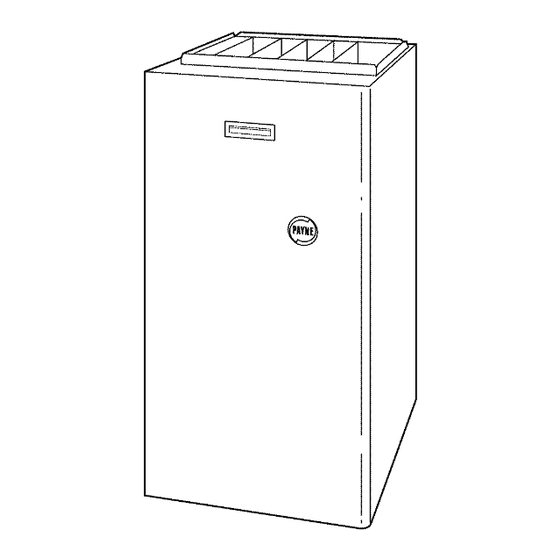

Deluxe 4-way multipoise fixed capacity condensing gas furnace sizes 040-120, series b (18 pages)
Summary of Contents for Payne Gas Furnace
Page 1
CARBON MONOXIDE POISONING HAZARD Carbon Monoxide is invisible, odorless, Do not use this furnace if any part has been under toxic! Payne Heating & Cooling Systems rec- water. A flood-damaged furnace is extremely dan- ommends a carbon monoxide alarm in your gerous.
Page 2
As an ENERGY STAR® Partner, Payne Heating & Cooling Sys- tems Company has determined that this product meets the ENERGY STAR® guidelines energy efficier_cy TABLE OF CONTENTS WELCOME TO A NEW GENERATION OF COMFORT ................FURNACE COMPONENTS ......................SAFETY CONSIDERATIONS ......................
FURNACE COMPONENTS Burner sight glass for viewing burner flame. Burner assembly (inside), operates with energy- saving, inshot bmners and hot smface igniter for safe, dependable heating. Combustion-air intake connection (right or left side). Redundant gas valve. Safe and efficient. Features 1 gas control with 2 internal shutoff valves.
Page 4
Inadhect-vent (2-pipe) application, yoreflunace u ses a irfromoutside t hehome forcombustion and vents f luegas tothe outdoors. This type ofapplication will have 2pipes r unning f rom theflunace t othe outdoors. (See Fig.2.)Inthisapplication, the vent a nd ah- intake pipes must t el_ninate outside t hestructure and must n otbeobstructed in anyway. D onotblock o1obstruct ahopenings on flunace o 1spaces mound f lunace.
Page 5
WARNING: FIRE AND UNIT OPERATION HAZARD Failure to follow this warning could result in fire, personal injury/death or property damage. For proper and safe operation the furnace needs air for combustion and ventilation. Do not block or obstruct the openings on the furnace, air openings to the area in which the furnace is installed, and the space around the furnace.
WARNING: FIRE HAZARD Failure to follow this warning could result in a fire or explosion, and personal injury/death or property damage. Should the gas supply fail to shut off or if overheating occurs, turn off the manual gas valve to the furnace BEFORE turning off the electrical supply.
6. Replace main furnace door. (See Fig. 13.) 7. If the furnace is being shut down because of a malfunction, call your dealer as soon as possible. CAUTION: UNIT AND PROPERTY DAMAGE Failure to follow this caution may result in damage to the furnace and other property damage.
Page 9
Remove air filter fi_om flu_nace. • AIR FILTER(S) LOCATED IN END OF FURNACE: a. Slide air filter retainer sideways until it is fiee of latch. (See Fig. 24.) b. Slide air filter out of flunace. (See Fig. 25.) • AIR FILTER LOCATED IN SIDE OF FURNACE: a.
If your furnace ah filter needs to be replaced, be sme to use a factory authorized filter of the same size that was originally supplied. Use the fl_rnace air filter table and compare your furnace size with the propel filter size. FURNACE AIR FILTER TABLE...
Page 11
3. Inspect the combustion-air and vent PVC pipes for sags, holes, cracks, water leaks, blockage or disconnections. Horizontal portions of vent pipe must slope downward toward furnace. -\ j UPFLOW DOWNFLOW 4. Reinstall burner enclosure flont. 5. If your furnace is fiee of the above conditions, replace main furnace door and tmn on electrical and gas supplies to the furnace.
8. Remove flmnel and robe from inducer housing and replace diain connection cap and clamp. 9. Replace main turnace door. (See Pig. 29.) 10. 15opytene glycol need not be removed before restmting fllrnace. A CHECK-UP CHECKLIST Your flu_ace represents an important investment in your family's comtSrt...
IF FURNACE FAILS TO OPERATE: Follow this checklist step by step, advancing to the next step only if flunace tails to start. • Check thelanostat tbr proper temperattue. Is thermostat set above room temperattue? • Is thermostat set on HEAT'? •...
