Jenn-Air JGR8895BDS12 Parts List
30" gas freestanding self clean range sealed burner convection
Hide thumbs
Also See for JGR8895BDS12:
- Use & care manual (44 pages) ,
- Installation instructions manual (36 pages) ,
- Installation & use manual (44 pages)
Advertisement
Quick Links
Illus.
Part
No.
No.
DESCRIPTION
1
Literature Parts
W10162494 Installation
Instructions
W10162492 Owners Manual
Brochure, Tips
Safe Cooking
9762761 English
W10065852 French
5−12 Litho In U.S.A. (CCS) (psw)

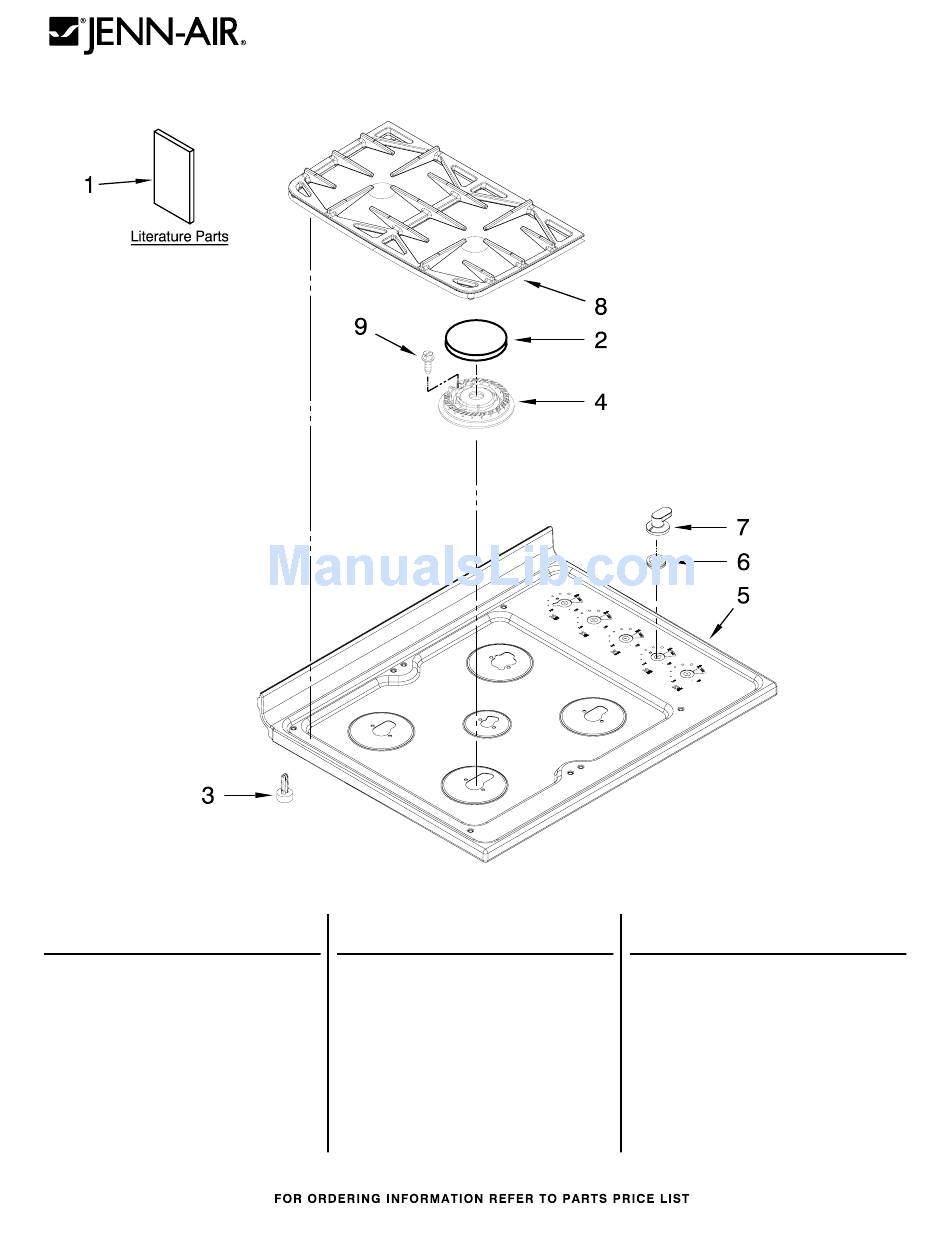

COOKTOP PARTS
For Model: JGR8895BDS12
(Stainless Steel)
Illus.
Part
No.
No.
DESCRIPTION
2
Cap, Burner
7504P204−60 (LF)
7504P241−60 (LR & RR)
7504P165−60 (RF)
7504P202−60 Center
3
8016P022−60 Glide, Main Top
4
Burner
8286183 17K, LF
8286182 12K, RF
8286181 6K, Center
W10194076 LR/RR
1
30" GAS FREESTANDING
SELF CLEAN RANGE
SEALED BURNER
CONVECTION
Illus.
Part
No.
No.
DESCRIPTION
5 W10191074 Cooktop (BLK)
6
8285469 Grommet, Knob
7 W10183665 Knob, Control
8
7518P455−60 Grate, Burner
(Incl. Bumpers)
9
3368921 Screw
Part No. W10261077 Rev. C
Advertisement
Related Manuals for Jenn-Air JGR8895BDS12
Summary of Contents for Jenn-Air JGR8895BDS12
- Page 1 COOKTOP PARTS 30" GAS FREESTANDING SELF CLEAN RANGE For Model: JGR8895BDS12 SEALED BURNER (Stainless Steel) CONVECTION Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Literature Parts Cap, Burner 5 W10191074 Cooktop (BLK) W10162494 Installation 7504P204−60 (LF) 8285469 Grommet, Knob Instructions 7504P241−60 (LR &...
-
Page 2: Control Panel Parts
CONTROL PANEL PARTS For Model: JGR8895BDS12 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Support, Backguard 7101P633−60 Screw 8036P025−60 Shield, Sight 3807F734−70 Left 3801F926−51 Bracket, Control 4005F804−51 Cover, Rear Wire 3807F733−70 Right 3604F398−09 Shield, Vent 7101P500−60 Screw 3608F121−09 Trim, Vent 7450P073−60 Control Assy. -
Page 3: Manifold Parts
MANIFOLD PARTS For Model: JGR8895BDS12 (Stainless Steel) W10261077... - Page 4 MANIFOLD PARTS For Model: JGR8895BDS12 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 7505P324−60 Burner, Bake 7101P639−60 Screw, Valve 7507P395−60 Tubing, Bake 7510P089−60 Regulator, Holder, Orifice Burner 7527P021−60 (LF) Pressure (Incl. Orifice) 7527P022−60 (LR & RF) Igniter 7501P221−60 Valve, Bake/Broil 7432P130−60 Broil 7507P396−60 Tubing, Broil...
-
Page 5: Chassis Parts
CHASSIS PARTS For Model: JGR8895BDS12 (Stainless Steel) W10261077... - Page 6 CHASSIS PARTS For Model: JGR8895BDS12 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Bracket 1 3826W047−45 Extension, Lower 3601F321−50 Baffle, Vent Seal 3801F705−51 Right Vent 33 3826W042−45 Extension, Upper 3801F706−51 Left 8004P024−60 Spacer, Side Panel Vent 20 W10180198 Back, Main 7101P388−60 Screw 34 4022W055−45 Flue Assy., Upper 3807F647−45 Plate, Broil...
- Page 7 UPPER DOOR PARTS For Model: JGR8895BDS12 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 7701P467−60 Handle, Door 3804F184−45 Retainer, Glass 7902P521−60 Glass, Inner 7760P149−60 Panel, Door Support 7907P034−60 Frame, Glass 7101P388−60 Screw 7902P753−60 Glass, Outer Door 15 2402W248−19 Liner, Door 3823F017−45 Spacer, Handle 7902P542−60 Glass, Inner Door 7103P141−60 Nut, Snap...
- Page 8 LOWER DOOR PARTS For Model: JGR8895BDS12 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 7201P141−60 Gasket, Window 7101P376−60 Screw 7902P436−60 Glass, Inner 7106P141−60 Hinge, Door 3804F265−45 Retainer, Glass 3601F373−51 Baffle, Door 7701P467−60 Handle, Door Support 7002P246−60 Insulation 7760P148−60 Panel, Door 3604F441−51 Shield, Door 17 2402W312−19 Liner, Door...
- Page 9 RACK PARTS For Model: JGR8895BDS12 (Stainless Steel) Illus. Part DESCRIPTION 1 W10273862 Rack, Upper Oven 2 W10251904 Rack, Telescoping 7801P173−60 Rack, Lwr Oven W10261077...
- Page 10 OPTIONAL PARTS (NOT INCLUDED) For Model: JGR8895BDS12 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION PAINT, BULK (1 qt.) PAINT, TOUCH−UP (1/2oz.) Following Parts Not Illustrated 799344 White (Uncut) 72017 White 4392899 Biscuit REFINISHING MATERIAL ACCESSORIES 72032 Black 511873 White Porcelain 242756 Touch−Up 241430 Foil, Aluminum...
