Use and Care Manual
Illus.
Part
No.
No.
DESCRIPTION
1
Literature Parts
8101P728−60 Installation
Instructions
8113P716−60 Owners Manual
2
Cap, Burner
7504P204−60 (LF−EX−LG)
7504P241−60 (LR & RF−MED)
7504P202−60 (RR−SM)
3−09 Litho In U.S.A. (MMS) (psw)

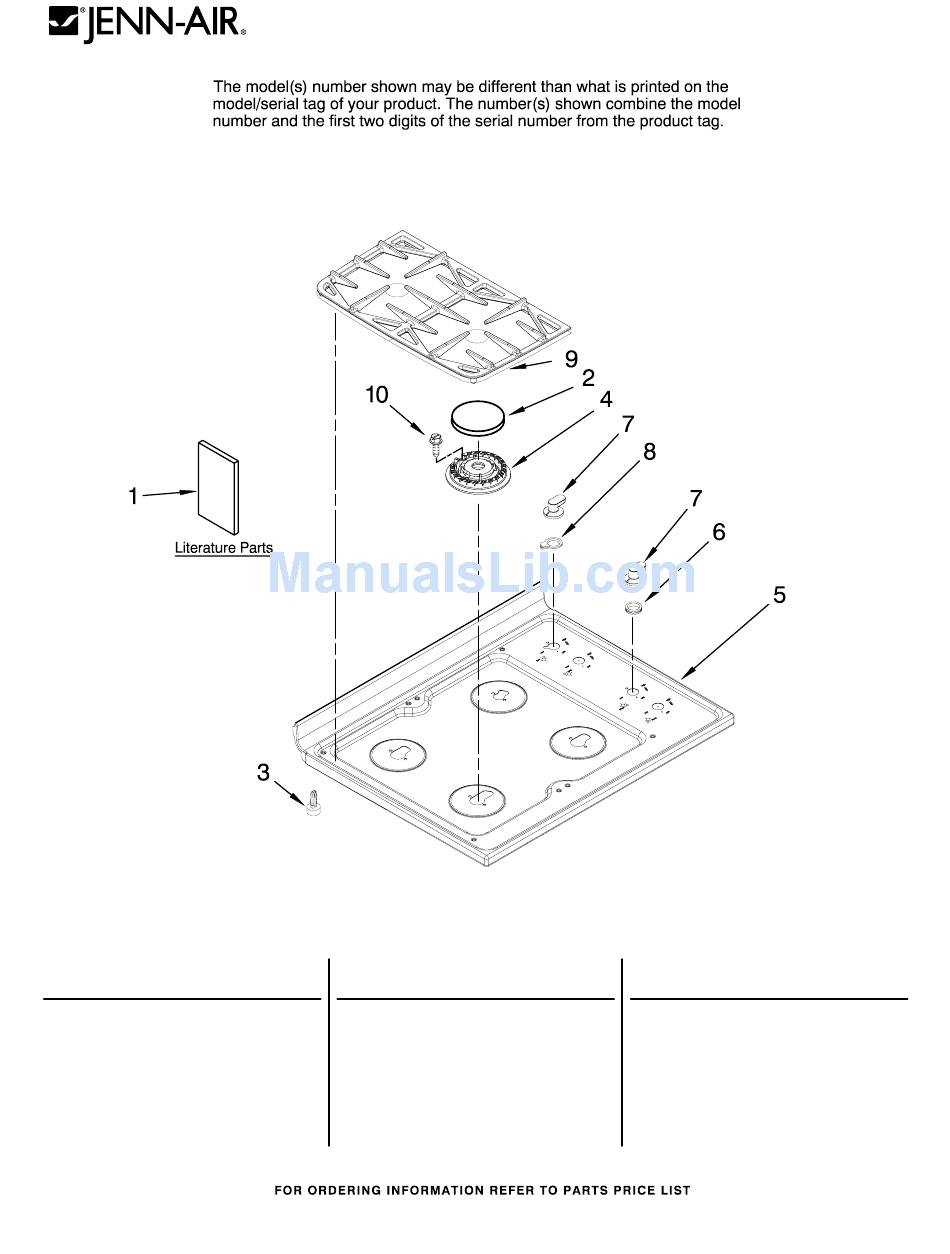

COOKTOP PARTS
For Models: JGR8890ADP20
(Stainless Steel)
Illus.
Part
No.
No.
DESCRIPTION
3
8016P022−60 Glide, Main Top
4
Burner
8286181 (RR)
7540P043−60 (LR & RF)
8286183 (LF)
5
2001N292−09 Cooktop (BLK)
6
8285469 Grommet, Knob (3)
(RF,LF, & LR)
1
30" GAS FREESTANDING
SELF CLEAN RANGE
SEALED BURNER
CONVECTION
Illus.
Part
No.
No.
DESCRIPTION
7 W10175696 Knob, Control (4)
8
8285469 Grommet, Knob (1)
(RR)
9
7518P422−60 Grate, Burner (2)
(Incl. Bumpers)
10
7101P685−60 Screw (8)
Part No. W10261580 Rev A
Advertisement
Related Manuals for Jenn-Air JGR8890ADP20
Summary of Contents for Jenn-Air JGR8890ADP20
- Page 1 COOKTOP PARTS 30" GAS FREESTANDING For Models: JGR8890ADP20 SELF CLEAN RANGE SEALED BURNER (Stainless Steel) CONVECTION Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 7 W10175696 Knob, Control (4) Literature Parts 8016P022−60 Glide, Main Top 8285469 Grommet, Knob (1) 8101P728−60 Installation Burner Instructions...
-
Page 2: Control Panel Parts
CONTROL PANEL PARTS For Models: JGR8890ADP20 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Support, Backguard 7101P633−60 Screw 8036P025−60 Shield, Sight 3807F734−70 Left 5 W10163277 Bracket, Control 4005F804−51 Cover, Rear Wire 3807F733−70 Right 3604F398−09 Shield, Vent 7101P500−60 Screw 3608F121−09 Trim, Vent 7 W10162916 Control Assy. -
Page 3: Manifold Parts
MANIFOLD PARTS For Models: JGR8890ADP20 (Stainless Steel) W10261580... - Page 4 MANIFOLD PARTS For Models: JGR8890ADP20 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 7505P324−60 Burner, Bake 7101P639−60 Screw, Valve (4) 7501P221−60 Valve, Bake/Broil 7510P089−60 Regulator, Holder, Orifice 7507P396−60 Tubing, Broil Pressure 7527P021−60 (LF) Burner Igniter 7527P022−60 (LR & RF) (Incl.
-
Page 5: Chassis Parts
CHASSIS PARTS For Models: JGR8890ADP20 (Stainless Steel) W10261580... - Page 6 CHASSIS PARTS For Models: JGR8890ADP20 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 20 W10180198 Back, Main 4005F736−45 Cover, Burner 1 3826W047−45 Extension, Lower 3807F647−45 Plate, Broil Opening (2) Vent Fitting 3601F308−19 Baffle, Lower Oven 8004P024−60 Spacer, Side Panel 7101P388−60 Screw Vent 7101P618−60 Screw...
- Page 7 UPPER DOOR PARTS For Models: JGR8890ADP20 (Stainless Steel) W10261580...
- Page 8 UPPER DOOR PARTS For Models: JGR8890ADP20 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 7701P475−60 Handle, Door 7201P091−60 Gasket, Window 7902P521−60 Glass, Inner (2) 3804F184−45 Retainer, Glass 7760P217−60 Panel, Door 7907P034−60 Frame, Glass Support (2) 7101P388−60 Screw 15 2402W248−19 Liner, Door 7902P753−60 Glass, Outer Door 8038P040−60 Plate, Back (2)
- Page 9 LOWER DOOR PARTS For Models: JGR8890ADP20 (Stainless Steel) W10261580...
- Page 10 LOWER DOOR PARTS For Models: JGR8890ADP20 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 7101P668−60 Screw 7201P140−60 Gasket, Window 3601F373−51 Baffle, Door 3804F265−45 Retainer, Glass 7719P087−60 Nameplate 7002P246−60 Insulation Support (2) 7701P475−60 Handle, Door 17 2402W312−19 Liner, Door 7760P158−60 Panel, Door 10 W10163149 Shield, Door 7103P141−60 Nut, Snap (2)
- Page 11 RACK PARTS For Models: JGR8890ADP20 (Stainless Steel) Illus. Part DESCRIPTION 7801P159−60 Rack, Upper Oven 7801P143−60 Rack, Telescoping 7801P173−60 Rack, Lwr Oven (2) W10261580...
- Page 12 OPTIONAL PARTS (NOT INCLUDED) For Models: JGR8890ADP20 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION ACCESSORY PARTS PAINT, TOUCH−UP (1/2oz.) Following Parts Not Illustrated 241430 Foil, Aluminum 72017 White Oven (18" x 25’) 4392899 Biscuit SPLICING WIRES−−25FT. 72032 Black WIRING HARNESS PARTS LENGTH...
