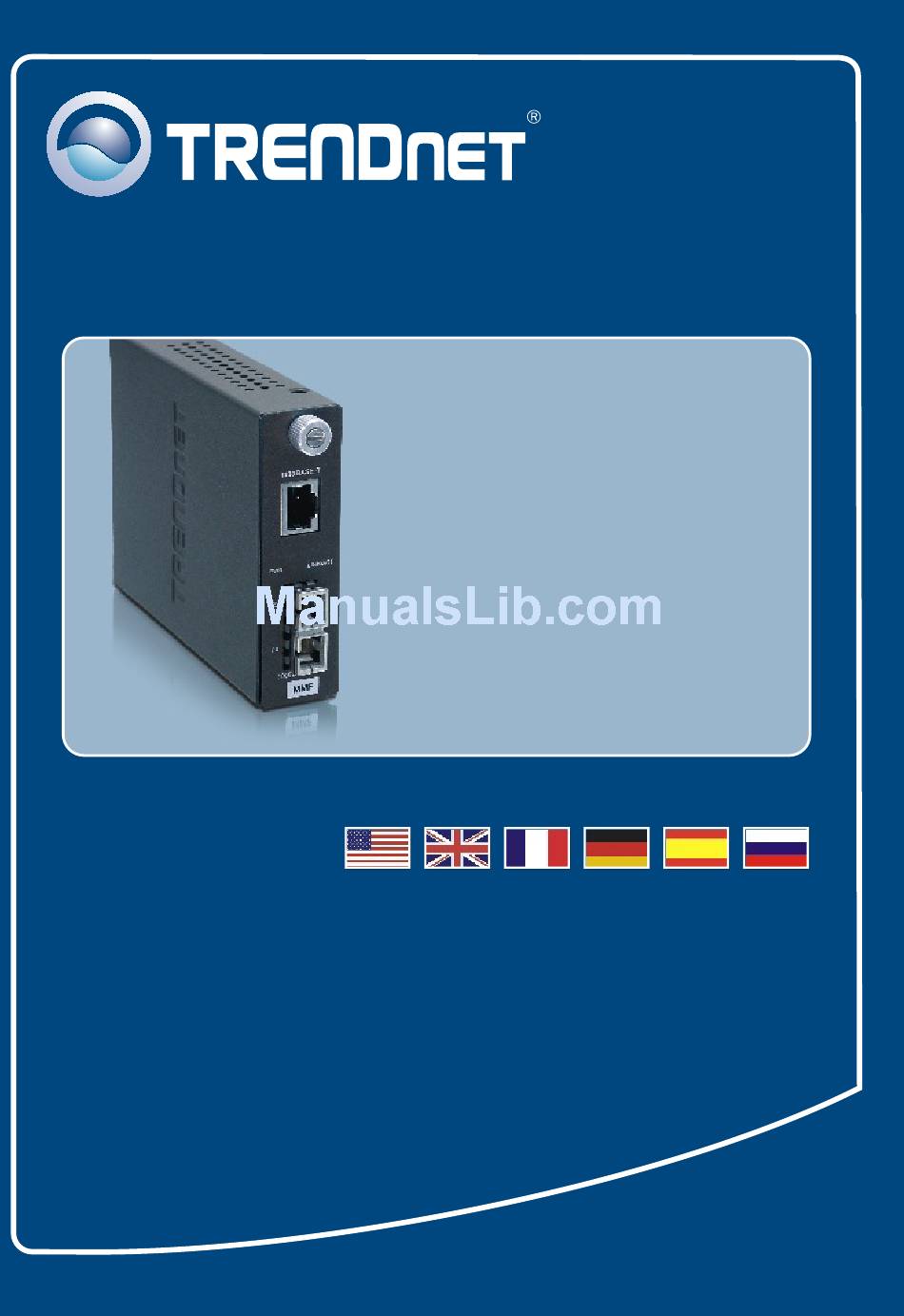

- Page 1 Quick Installation Guide 1000Base-SX/LX Fiber Converters...
-
Page 2: Table Of Contents
Table of Contents Table of Contents Español ..................... 1. Antes de iniciar .................. Instalación del Hardware ..............Spefications ....................Ordering Information................... Troubleshooting ..................Version 07.26.2006... -
Page 3: Español
1. Antes de iniciar Contenidos del paquete Convertidor de fibra Guía de instalación rápida Alimentación eléctrica de CA (7,5 CC, 1,5 A) Requisitos mínimos Un ambiente donde no haya generadores de campos electromagnéticos fuertes (como motores), vibraciones, polvo o exposición directa a la luz solar. Un chasis TFC-1600 (opcional) o una superficie firme y nivelada capaz de sostener el peso del Convertidor de fibra. -
Page 4: Instalación Del Hardware
2. Instalación del Hardware Instalación de 2 convertidores de fibra de forma independiente 1. Conecte el cable de fibra a los convertidores. Para el TFC-1000MSC el cable debe ser multimodo. El cable para el TFC-1000S20/S50/S70/S10D3/ S10D5 debe ser de modo sencillo 2. - Page 5 Instalación del convertidor de medios sobre un chasis 4. Destornille la tapa del compartimiento deseado del chasis. 5. Afloje el tornillo de ajuste manual y saque el convertidor de la caja de metal. 6. Inserte el convertidor de medios en una ranura disponible y apriete el tornillo de ajuste manual.
-
Page 6: Spefications
Specifications IEEE802.3ab 1000BASE-TX Applicable Standards: IEEE802.3z 1000BASE-SX/LX Fixed Ports: 1 TX port, 1 FX port Forwarding rate: 1488000pps for 1000Mbps LED Indicators: PWR, LNK/ACT Switch 1: On(Forced Mode); Off(Auto-Negotiation) DIP Switches: Switch 2: On(LLR enabled); Off(LLR disabled) 1000BASE-T Cat. 5e or Cat. 6 EIA/TIA-568 100-ohm screened twisted-pair (STP) 1000BASE-SX Cable :... -
Page 7: Ordering Information
Ordering Information Media Converters Port 1 Port 2 Model Number Speed Speed Max. Cable(/125 µm ) Max. Wavelength Cable/Connector (Mbps) (Mbps) Distance /Connector Distance 220M Cat. 3, 4, 5, 62.5/125µm TFC-1000MSC 1000 EIA/TIA-568 100M 1000 1300nm µm or 62.5 µm 550M 100-ohm STP MT-RJ... -
Page 8: Troubleshooting
Wait 15 seconds, then plug the switches and the fiber converters back What is the maximum distance that is supported by the fiber converter? Please reference section 4 for distance information. If you still encounter problems or have any questions regarding the Fiber Converters please contact TRENDnet's Technical Support Department. - Page 9 Return Material Authorization (RMA) number, accompanied by a copy of the dated proof of the purchase. Products returned to TRENDnet must be pre- authorized by TRENDnet with RMA number marked on the outside of the package, and...
- Page 10 ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE OR USE OF TRENDNET’S PRODUCTS. TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PERSON’S...
- Page 11 Certifications This equipment has been tested and found to comply with FCC and CE Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received. Including interference that may cause undesired operation.
- Page 12 English/Espanol - 24/7 Francais/Deutsch - 11am-8pm, Monday - Friday MET Product Warranty Registration Please take a moment to register your product online. Go to TRENDnet’s website at http://www.trendnet.com 20675 Manhattan Place Torrance, CA 90501 Copyright ©2006. All Rights Reserved. TRENDnet.
