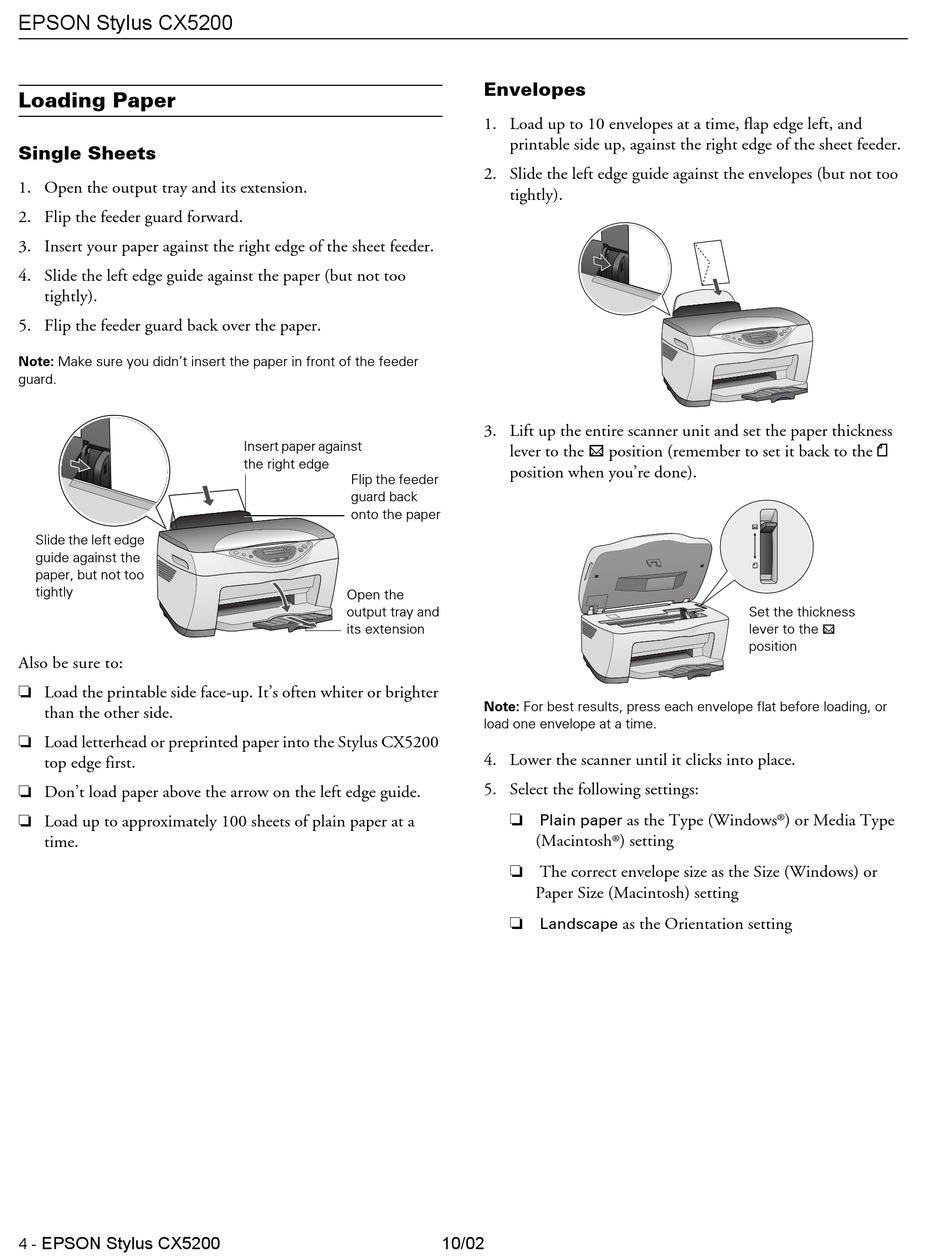

Loading Paper

Single Sheets

1. Open the output tray and its extension.
2. Flip the feeder guard forward.
3. Insert your paper against the right edge of the sheet feeder.
4. Slide the left edge guide against the paper (but not too
tightly).
5. Flip the feeder guard back over the paper.
Note: Make sure you didn't insert the paper in front of the feeder
guard.
Slide the left edge
guide against the
paper, but not too
tightly
Also be sure to:
❏ Load the printable side face-up. It's often whiter or brighter
than the other side.
❏ Load letterhead or preprinted paper into the Stylus CX5200
top edge first.
❏ Don't load paper above the arrow on the left edge guide.
❏ Load up to approximately 100 sheets of plain paper at a
time.
EPSON Stylus CX5200
4 -
Insert paper against
the right edge
Flip the feeder
guard back
onto the paper
Open the
output tray and
its extension
Envelopes
1. Load up to 10 envelopes at a time, flap edge left, and
printable side up, against the right edge of the sheet feeder.
2. Slide the left edge guide against the envelopes (but not too
tightly).
3. Lift up the entire scanner unit and set the paper thickness
lever to the ^ position (remember to set it back to the m
position when you're done).
Note: For best results, press each envelope flat before loading, or
load one envelope at a time.
4. Lower the scanner until it clicks into place.
5. Select the following settings:
❏
Plain paper
(Macintosh ) setting
®
❏ The correct envelope size as the Size (Windows) or
Paper Size (Macintosh) setting
❏
Landscape
10/02
Set the thickness
lever to the ^
position
as the Type (Windows ) or Media Type
®
as the Orientation setting
