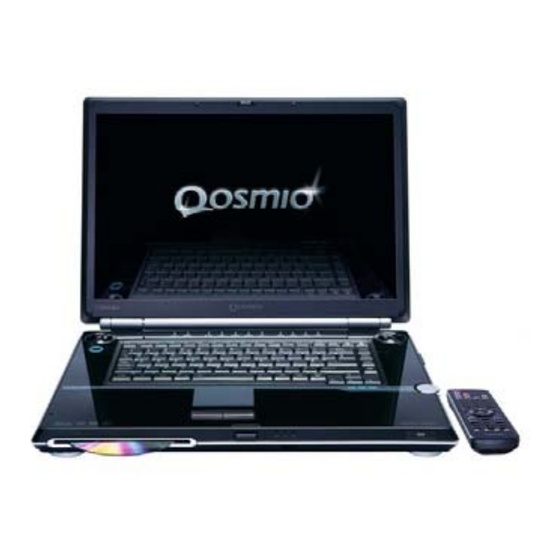

Qosmio Series Notebook Computers
________________________________________________________________
How to Connect a Sky Digital Set Top Box
(Qosmio F10/F20 Series and Qosmio G10/G20 Series)
________________________________________________________________
User Reference Guides
©
Toshiba Information Systems (UK( Limited --- Technical Services Department
Page 1
Advertisement
Related Manuals for Toshiba Qosmio F10 Series
Summary of Contents for Toshiba Qosmio F10 Series

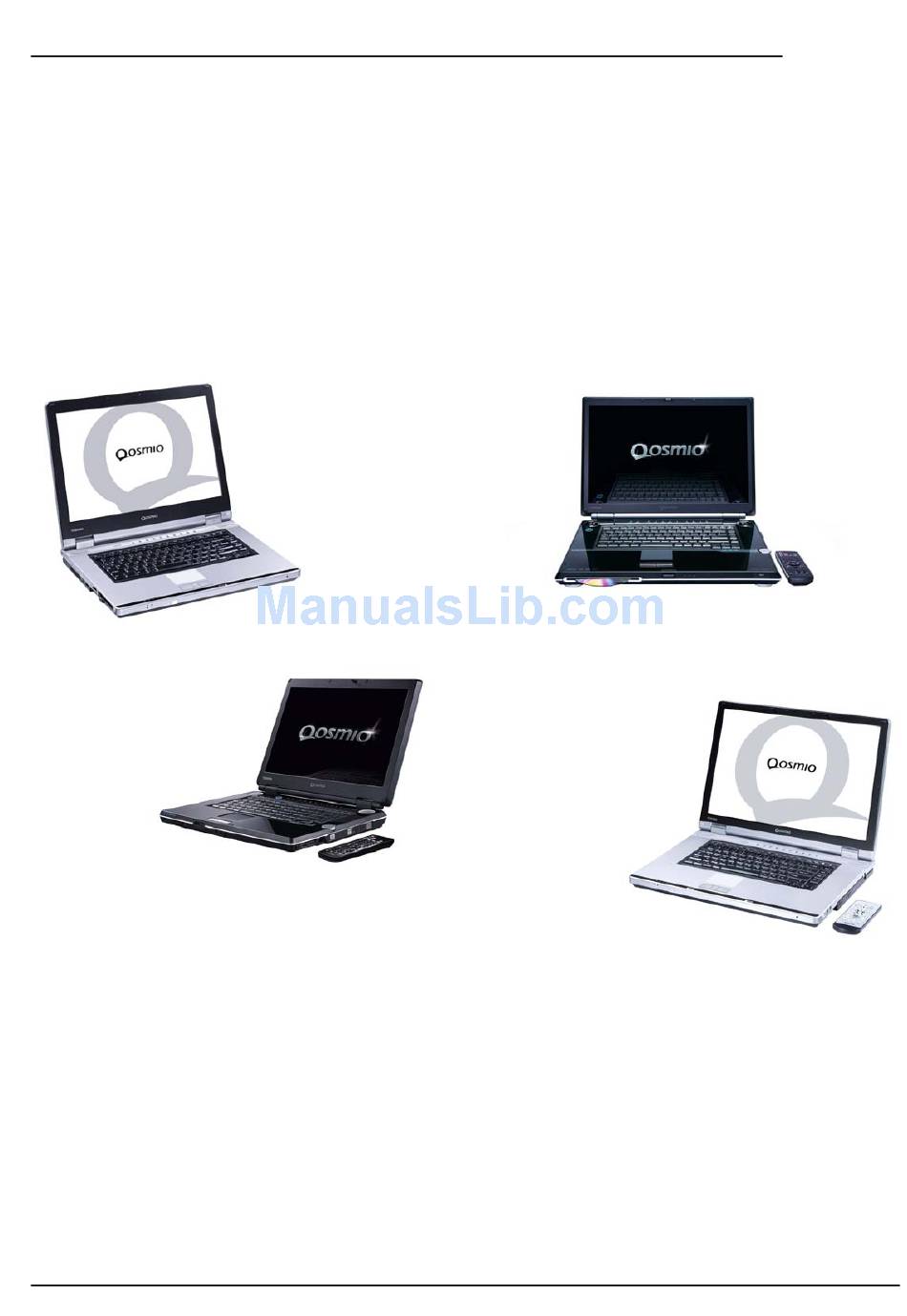

- Page 1 TOSHIBA TOSHIBA TOSHIBA Qosmio Series Notebook Computers User Reference Guides ________________________________________________________________ How to Connect a Sky Digital Set Top Box (Qosmio F10/F20 Series and Qosmio G10/G20 Series) ________________________________________________________________ © Toshiba Information Systems (UK( Limited --- Technical Services Department Page 1...
- Page 2 The Technical Services department of Toshiba Information Systems (UK) Limited have made their best endeavours to ensure the material presented here is accurate, however, no responsibility can be accepted for errors (other than typographical), nor are any guarantees offered. Errors and omissions excepted. All information in this document is subject to change without notice.
- Page 3 The instructions contained within this document have been provided to assist you with the use of the Qosimo range of products with the Sky Digital set top box. However, Toshiba Information Systems (UK) Limited shall not be responsible for any updates or changes that may occur with the third-party hardware which may affect the validity of the information contained herein.
- Page 4 TOSHIBA TOSHIBA TOSHIBA TOSHIBA TOSHIBA © Page 4 Toshiba Information Systems (UK( Limited --- Technical Services Department...
-
Page 5: Before You Begin
>>> All Programs >>> Windows Update. - The latest version of the TV tuner driver is downloaded and installed - this can be found on the Toshiba web site (http:// uk.computers.toshiba-europe.com/) by selecting Support & Downloads followed by Download Files and then completing all of the drop-down boxes as appropriate for your model of Qosmio, ensuring that TV Tuner is selected within the Driver Type box. - Page 6 - Within the Volume Control window, check the Mute box within the Line In section. Close the Volume Control window by clicking the cross in the top right-hand corner. © Page 6 Toshiba Information Systems (UK( Limited --- Technical Services Department...
- Page 7 TOSHIBA TOSHIBA TOSHIBA TOSHIBA TOSHIBA © Toshiba Information Systems (UK( Limited --- Technical Services Department Page 7...
- Page 8 TOSHIBA TOSHIBA TOSHIBA TOSHIBA TOSHIBA © Page 8 Toshiba Information Systems (UK( Limited --- Technical Services Department...
- Page 9 At the opening Welcome to the Media Center Setup Wizard screen, select Next. At the Media Center Setup screen, select Next. At the Media Center Privacy Policy screen, select Next. © Toshiba Information Systems (UK( Limited --- Technical Services Department Page 9...
- Page 10 Test button in order to check that the notebook is able to obtain information from the Internet. In the event that no problems are encountered, and the system displays the Connection Working message, select Next. © Page 10 Toshiba Information Systems (UK( Limited --- Technical Services Department...
- Page 11 Next. 12) At the You Are Done! screen, select Finish - this will complete the initial configuration and automatically take you to the Media Center menu. © Toshiba Information Systems (UK( Limited --- Technical Services Department Page 11...
- Page 12 Settings. From the Settings menu, select General. From the General menu, select Media Center Setup. From the Media Center Setup menu, select Set Up TV Signal. © Page 12 Toshiba Information Systems (UK( Limited --- Technical Services Department...
- Page 13 Next and then proceed to Step (10). 10) At the Select Your Region screen, use the up and down arrows to highlight United Kingdom from the list presented and then select Next. © Toshiba Information Systems (UK( Limited --- Technical Services Department Page 13...
- Page 14 13) At the Select Your TV Signal Type screen, click Analog Terrestrial (PAL/SECAM) option and then select Next. 14) At the Prepare for Set-top Box Setup screen, select Next. © Page 14 Toshiba Information Systems (UK( Limited --- Technical Services Department...
- Page 15 If this is the case, select Next and then proceed to Step (20). © Toshiba Information Systems (UK( Limited --- Technical Services Department Page 15...
- Page 16 No, select Next and then proceed to Step (33). 22) At the Identify Set-top Box Remote screen, select Next. © Page 16 Toshiba Information Systems (UK( Limited --- Technical Services Department...
- Page 17 26) At the Channel Change Buttons screen, ensure that you read the information presented before clicking either Yes or No as appropriate for your remote controller, and then select Next. © Toshiba Information Systems (UK( Limited --- Technical Services Department Page 17...
- Page 18 ‘Previous Channel’ until the instruction Release button to continue is displayed - at this point release the button in order to proceed to the next stage of the configuration process. © Page 18 Toshiba Information Systems (UK( Limited --- Technical Services Department...
- Page 19 Three digits for most Sky Digital installations - and then select Next. 34) At the How Do You Change Channels? screen, click the appropriate option based around how your remote controller changes channels and then select Next. © Toshiba Information Systems (UK( Limited --- Technical Services Department Page 19...
- Page 20 Next. 37) At the IR Signal Speed Set screen, select Next. 38) At the Set Up Your TV Program Guide screen, select Next. © Page 20 Toshiba Information Systems (UK( Limited --- Technical Services Department...
- Page 21 Next - the system will then automatically connect to the Internet in order to download the current Electronic Programme Guide (EPG) provider information. © Toshiba Information Systems (UK( Limited --- Technical Services Department Page 21...
- Page 22 Sky Digital set top box and automatically return you to the Settings menu. From the Settings menu, press Backspace three times in order to return to the Media Center menu. © Page 22 Toshiba Information Systems (UK( Limited --- Technical Services Department...
- Page 23 PgUp or PgDn keys, or using the Channel Up or Channel Down buttons on the remote controller. © Toshiba Information Systems (UK( Limited --- Technical Services Department Page 23...
- Page 24 Sky Digital signal can be displayed by entering 6, by following the instructions as detailed in Part Two - Tuning the Qosmio Player (Manual Process) later in this document. © Page 24 Toshiba Information Systems (UK( Limited --- Technical Services Department...
- Page 25 - Once this process has been completed correctly, press Enter followed by F1 - you will now be able to select the Sky Digital channel by simply pressing 6 on the Qosmio’s keyboard. © Toshiba Information Systems (UK( Limited --- Technical Services Department Page 25...
- Page 26 Appendix C ... Making a Connection Using the S-Video Input Port Page 29 Appendix D ... Using the Windows Media Center Infra-red Receiver Box Page 30 Appendix E ... Overview of Equipment Connectivity Page 31 © Page 26 Toshiba Information Systems (UK( Limited --- Technical Services Department...
-
Page 27: Appendix A - Making A Connection Using The Antenna-In Port
Qosmio F10 Series Qosmio F20 Series Qosmio G10 Series Qosmio G20 Series © Toshiba Information Systems (UK( Limited --- Technical Services Department Page 27... -
Page 28: Appendix B - Making A Connection Using The Monitor-In Port
Qosmio F10 Series - Location of Monitor-in Port Qosmio F20 Series - Location of Monitor-in Port Qosmio G10 Series - Location of Monitor-in Port Qosmio G20 Series - Location of Monitor-in Port © Page 28 Toshiba Information Systems (UK( Limited --- Technical Services Department... -
Page 29: Appendix C - Making A Connection Using The S-Video Input Port
RCA audio cable to the monitor-in cable supplied with the Qosmio notebook to receive sound (right) Qosmio F10 Series - Location of S-Video Input Port Qosmio G10 Series - Location of S-Video Input Port Qosmio G20 Series - Location of S-Video Input Port © Toshiba Information Systems (UK( Limited --- Technical Services Department Page 29... -
Page 30: Appendix D - Using The Windows Media Center Infra-Red Receiver Box
The above illustration shows specific considerations that will need to be made to ensure that the signals from the appropriate remote controller are properly received by either the Qosmio notebook and/or the Sky Digital set top box © Page 30 Toshiba Information Systems (UK( Limited --- Technical Services Department... -
Page 31: Appendix E - Overview Of Equipment Connectivity
- if no video recorder or DVD recorder is present then the Sky Digital set top box will connect directly into the appropriate input socket on the display device. 7) Display Device © Toshiba Information Systems (UK( Limited --- Technical Services Department Page 31...
