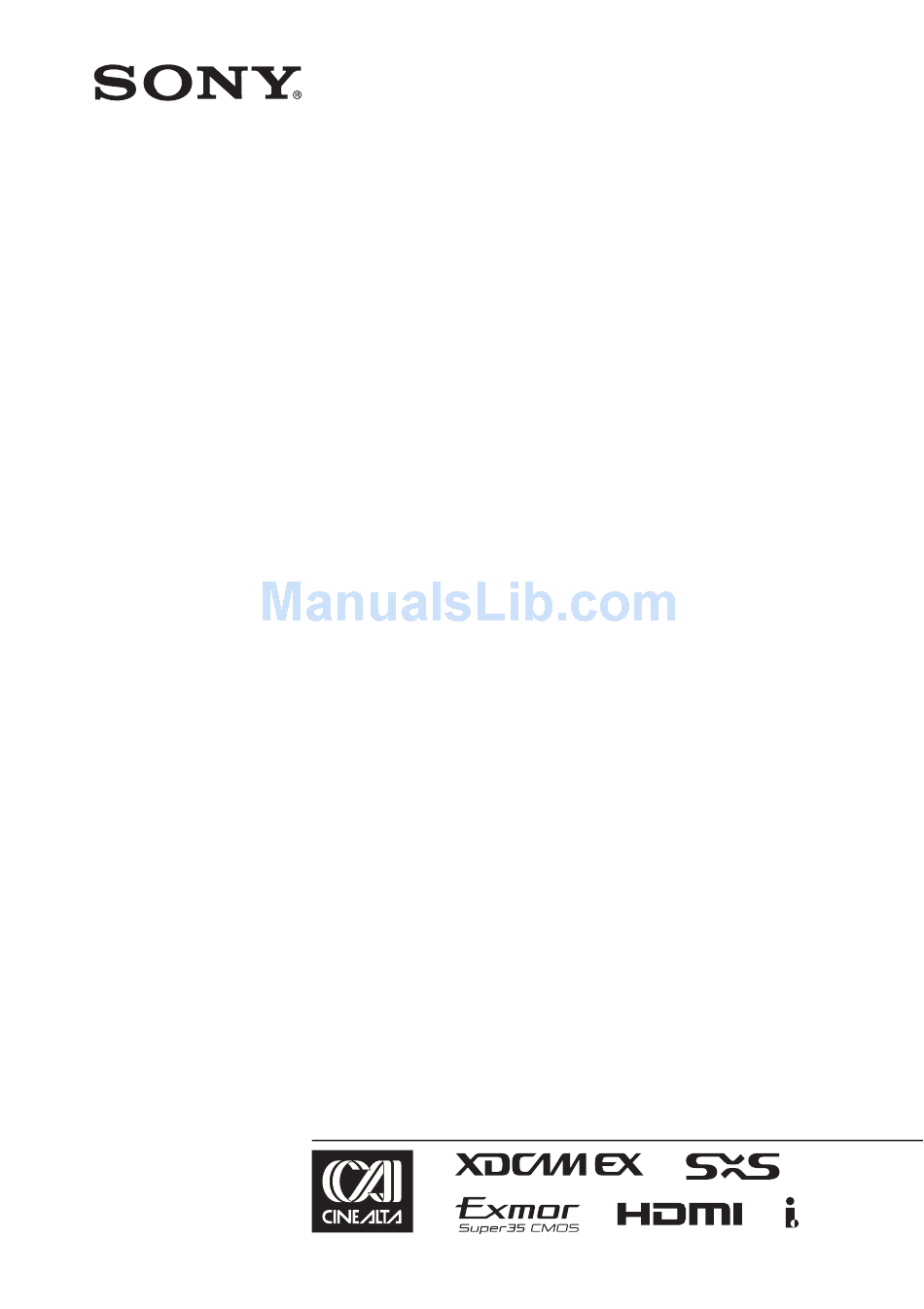

  • Page 1 4-276-624-11(1) Solid-State Memory Camcorder PMW-F3K PMW-F3L Supplement © 2011 Sony Corporation...

  • Page 2: Table Of Contents

    Table of Contents Foreword ..................3 Using an External Hard Disk ........... 3 Attaching the PHU-60K/120K/120R ......3 Formatting the PHU-60K/120K/120R ......4 Checking the Remaining Time Available for Recording ..............4 Restoring the PHU-60K/120K/120R ......4 Using a Media Adaptor ............5 Formatting ..............

  • Page 3: Foreword

    Foreword Using an External Hard Disk This supplement contains the following You can use an optional PHU-60K, PHU-120K, supplementary information about the PMW-F3K/ or PHU-120R Professional Hard Disk Unit with F3L. this camcorder. • Using an External Hard Disk Notes •...

  • Page 4: Formatting The Phu-60K/120K/120R

    Subsequently, the access lamp of the Checking the Remaining Time camcorder lights in red then changes to green Available for Recording once the unit is ready for use. Notes In E-E Display/Recording mode, the remaining • The cover of the card slot block cannot be capacity (in minutes) of the PHU-60K/120K/ closed with the PHU-60K/120K/120R 120R connected via a card slot is displayed on the...

  • Page 5: Using A Media Adaptor

    For a “Memory Stick” or an SDHC card that was formatted with another system unsupported by • “Memory Stick” and this camcorder, the message “Unsupported File trademarks of Sony Corporation. System” is displayed on the LCD monitor/ • “Memory Stick PRO-HG Duo” and viewfinder screen.

  • Page 6: Operating Via The Remote Connector

    —BARS/CAM button —AUTO WHT BAL button Operating via the The ECS frequency value displayed on the REMOTE Connector Remote Control Unit may slightly differ from that on the camcorder. When the optional RM-B750 / RM-B150 Remote Releasing Remote Control mode Control Unit is connected, various settings of the Turn off the camcorder and disconnect the remote camcorder can be performed from the remote...
  • Page 7 Operating the menu from the RM-B750 Set the camcorder to E-E Display mode then proceed as follows. Press and light the MONITOR button then press the VF MENU button. The menu of the camcorder appears on the RM-B750 display and the monitor screen connected via the MONITOR connector of the RM-B750.

  • Page 8: Functions Operable Via The Remote Connector

    Functions Operable via the REMOTE Connector When the camcorder is set to E-E Display mode, B750) on the remote control device, in addition to the following functions can be made using the menu operations. controls, the switches, or the touch panel (RM- Function Operation on the camcorder Operation on...
  • Page 9 Adjustments of the Picture Profiles The Picture Profile menu of the camcorder can be Notes operated from the remote control device in the • The following menu and knob/switch same manner as on the camcorder. In addition, operations on the remote control device are some items of the Picture Profile menu can also enabled when the menu of the camcorder is not be adjusted by using the menus or controls of the...

  • Page 10: Formats And Limitations Of Outputs

    Formats and Limitations of Outputs Video Formats and Output Formats Output formats of the SDI OUT connector The format of serial digital signals fed from the No signal is fed out from the SDI OUT connector SDI OUT connector depends on the related Setup when “SDI/HDMI/i.LINK I/O Select”...
  • Page 11 “Country” setting of the OTHERS menu’s “System”: PAL Area SDI OUT output format OTHERS menu “System”: VIDEO SET menu “SDI/HDMI/i.LINK I/O Select” setting “Format” setting HD SDI SD SDI × × HQ 1920/50i 1920 1080/50i 576/50i × × HQ 1920/25P 1920 1080/25PsF 576/25PsF...
  • Page 12 “Country” setting of the OTHERS menu’s “System”: PAL Area SDI OUT output format OTHERS menu “System”: VIDEO SET menu “SDI/HDMI/i.LINK I/O Select” setting “Format” setting HD SDI SD SDI × × HQ 1920/50i 1920 1080/50i 576/50i × HQ 1920/25P 576/25PsF ×...
  • Page 13 “Country” setting of the OTHERS menu’s “System”: PAL Area SDI OUT output format Video format of playback VIDEO SET menu “SDI/HDMI/i.LINK I/O Select” setting clip HD SDI SD SDI × × HQ 1920/50i 1920 1080/50i 576/50i × × HQ 1920/25P 1920 1080/25PsF 576/25PsF...
  • Page 14 Output formats of the HDMI OUT connector The format of serial digital signals fed from the No signal is fed out from the HDMI OUT HDMI OUT connector depends on the related connector when “SDI/HDMI/i.LINK I/O Select” Setup menu settings or the format of the clip to be of the VIDEO SET menu is set to “HD SDI”...
  • Page 15 “Country” setting of the OTHERS menu’s “System”: PAL Area HDMI OUT output format OTHERS menu VIDEO SET menu “SDI/HDMI/i.LINK I/O Select” setting “System”: HD HDMI SD HDMI i SD HDMI P “Format” setting HD HDMI & HDV SD HDMI i & HDV SD HDMI P &...
  • Page 16 “Country” setting of the OTHERS menu’s “System”: PAL Area HDMI OUT output format OTHERS menu VIDEO SET menu “SDI/HDMI/i.LINK I/O Select” setting “System”: HD HDMI SD HDMI i SD HDMI P “Format” setting HD HDMI & HDV SD HDMI i & HDV SD HDMI P &...
  • Page 17 “Country” setting of the OTHERS menu’s “System”: PAL Area HDMI OUT output format VIDEO SET menu “SDI/HDMI/i.LINK I/O Select” setting Video format of HD HDMI SD HDMI i SD HDMI P playback clip HD HDMI & HDV SD HDMI i & HDV SD HDMI P &...
  • Page 18 When playing a clip recorded with NTSC system when “Country” of the OTHERS menu’s “System” is “PAL Area” Some frame may be deleted when the frame rate is converted. Video format of playback VIDEO OUT output format clip HD-Y Analog composite ×...
  • Page 19 “Country” setting the OTHERS menu’s “System”: PAL Area i.LINK output format OTHERS menu VIDEO SET menu “SDI/HDMI/i.LINK I/O Select” setting “System”: HD HDMI & HDV, SD HDMI i & HDV SD HDMI i & DVCAM “Format” setting HD HDMI P & HDV HQ 1920/50i No signal 720 ×...
  • Page 20 In Clip Playback mode “Country” setting the OTHERS menu’s “System”: NTSC Area/NTSC(J) Area i.LINK output format Video format of playback VIDEO SET menu “SDI/HDMI/i.LINK I/O Select” setting clip HD HDMI & HDV, SD HDMI i & HDV SD HDMI i & DVCAM HD HDMI P &...

  • Page 21: Limitations Of Outputs

    Limitations of Outputs The outputs from the camcorder are limited by the menu settings as follows: blank: no signal Menu setting Output Input System SDI/HDMI/ SDI OUT HDMI VIDEO i.LINK i.LINK i.LINK I/O HD/SD Format Select HD SDI HD-Y SD SDI Composite HD HDMI HD-Y...
