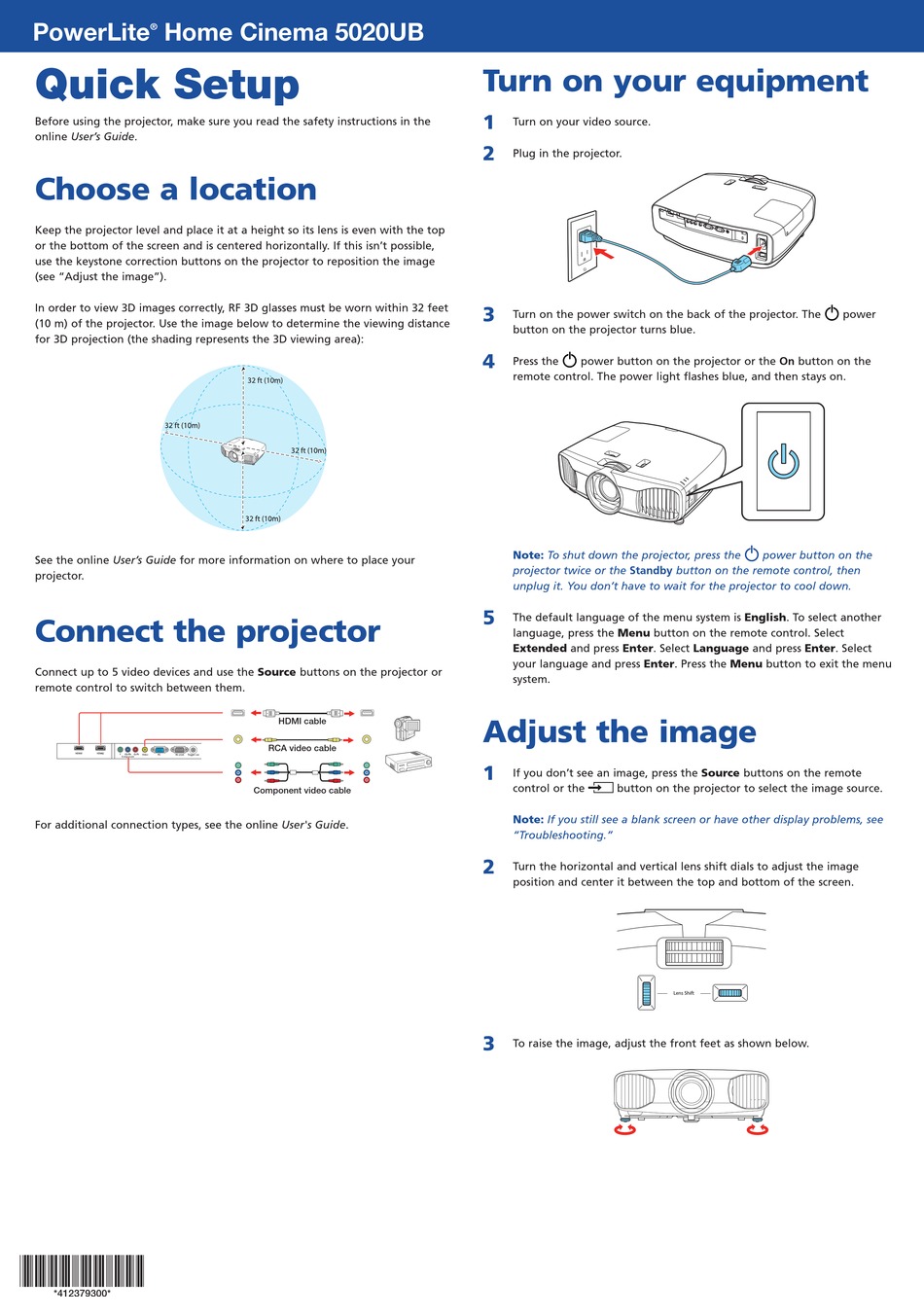

Epson PowerLite Home Cinema 5020UB Quick Setup Manual

PowerLite Home Cinema 5020UB
®

Quick Setup

Before using the projector, make sure you read the safety instructions in the
online User's Guide.

Choose a location

Keep the projector level and place it at a height so its lens is even with the top
or the bottom of the screen and is centered horizontally. If this isn't possible,
use the keystone correction buttons on the projector to reposition the image
(see "Adjust the image").
In order to view 3D images correctly, RF 3D glasses must be worn within 32 feet
(10 m) of the projector. Use the image below to determine the viewing distance
for 3D projection (the shading represents the 3D viewing area):
See the online User's Guide for more information on where to place your
projector.
Connect the projector
Connect up to 5 video devices and use the Source buttons on the projector or
remote control to switch between them.
For additional connection types, see the online User's Guide.
*412379300*
*412379300*
HDMI cable
RCA video cable
Component video cable
Turn on your equipment
1
Turn on your video source.
2
Plug in the projector.
3
Turn on the power switch on the back of the projector. The
button on the projector turns blue.
4
Press the power button on the projector or the On button on the
remote control. The power light flashes blue, and then stays on.
Note: To shut down the projector, press the
projector twice or the Standby button on the remote control, then
unplug it. You don't have to wait for the projector to cool down.
5
The default language of the menu system is English. To select another
language, press the Menu button on the remote control. Select
Extended and press Enter. Select Language and press Enter. Select
your language and press Enter. Press the Menu button to exit the menu
system.
Adjust the image
1
If you don't see an image, press the Source buttons on the remote
control or the button on the projector to select the image source.
Note: If you still see a blank screen or have other display problems, see
"Troubleshooting."
2
Turn the horizontal and vertical lens shift dials to adjust the image
position and center it between the top and bottom of the screen.
3
To raise the image, adjust the front feet as shown below.
power
power button on the
