Epson PowerLite Home Cinema 5020UBe Quick Setup

Epson powerlite home cinema 5020ube
Hide thumbs Also See for PowerLite Home Cinema 5020UBe:

Advertisement

Quick Links

PowerLite
Home Cinema 5020UBe
®
Quick Setup
Before using the projector, make sure you read the safety instructions in the
online User's Guide.

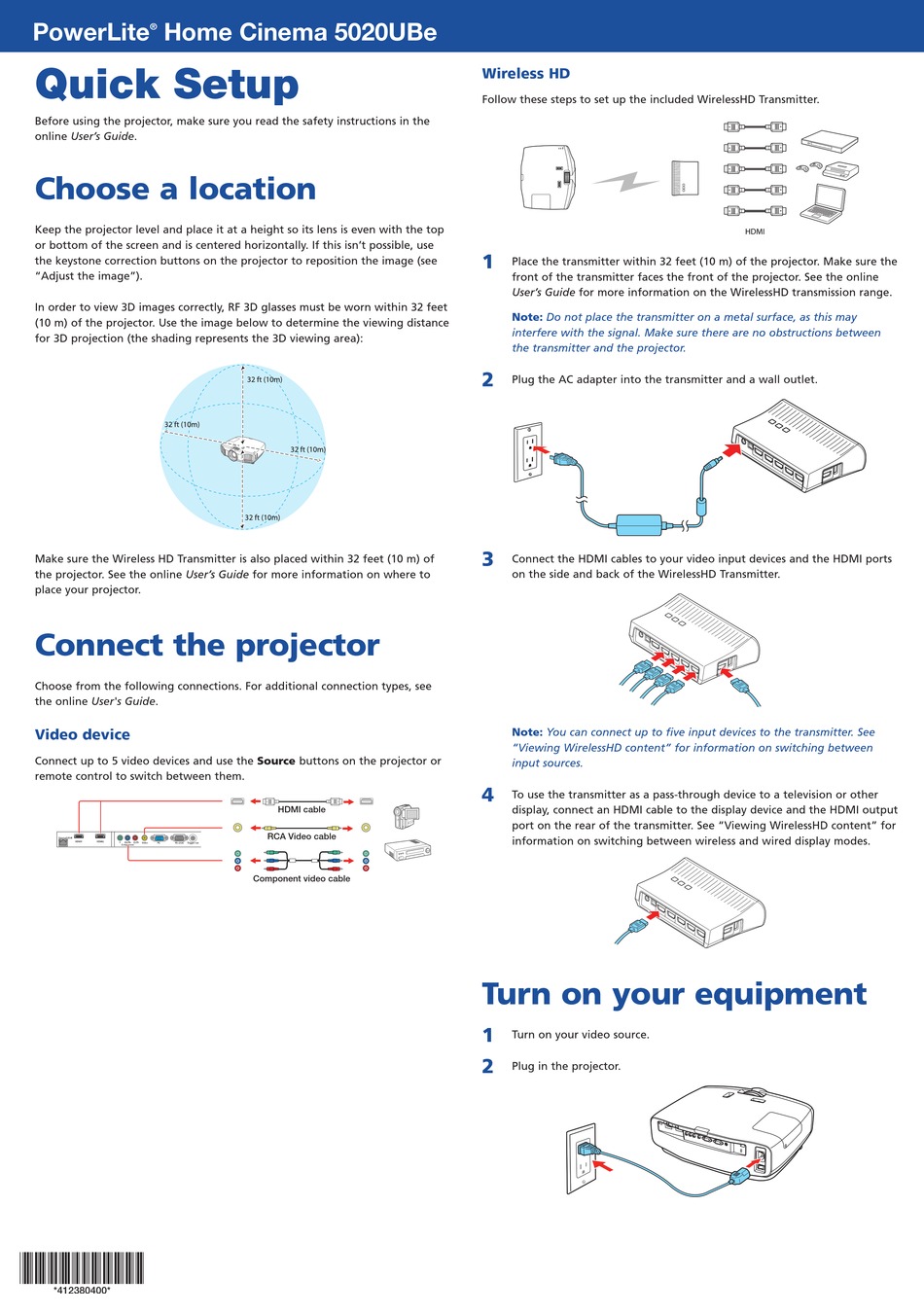

Choose a location

Keep the projector level and place it at a height so its lens is even with the top
or bottom of the screen and is centered horizontally. If this isn't possible, use
the keystone correction buttons on the projector to reposition the image (see
"Adjust the image").
In order to view 3D images correctly, RF 3D glasses must be worn within 32 feet
(10 m) of the projector. Use the image below to determine the viewing distance
for 3D projection (the shading represents the 3D viewing area):
Make sure the Wireless HD Transmitter is also placed within 32 feet (10 m) of
the projector. See the online User's Guide for more information on where to
place your projector.
Connect the projector
Choose from the following connections. For additional connection types, see
the online User's Guide.
Video device
Connect up to 5 video devices and use the Source buttons on the projector or
remote control to switch between them.
*412380400*
*412380400*
HDMI cable
RCA Video cable
Component video cable
Wireless HD
Follow these steps to set up the included WirelessHD Transmitter.
1
Place the transmitter within 32 feet (10 m) of the projector. Make sure the
front of the transmitter faces the front of the projector. See the online
User's Guide for more information on the WirelessHD transmission range.
Note: Do not place the transmitter on a metal surface, as this may
interfere with the signal. Make sure there are no obstructions between
the transmitter and the projector.
2
Plug the AC adapter into the transmitter and a wall outlet.
3
Connect the HDMI cables to your video input devices and the HDMI ports
on the side and back of the WirelessHD Transmitter.
Note: You can connect up to five input devices to the transmitter. See
"Viewing WirelessHD content" for information on switching between
input sources.
4
To use the transmitter as a pass-through device to a television or other
display, connect an HDMI cable to the display device and the HDMI output
port on the rear of the transmitter. See "Viewing WirelessHD content" for
information on switching between wireless and wired display modes.
Turn on your equipment
1
Turn on your video source.
2
Plug in the projector.
