Craftsman 536.884681 Owner's Manual

5 horsepower 21 inch single stage auger propelled snow thrower electric start
Hide thumbs

Advertisement

Available languages

Available languages

Quick Links

Download this manual

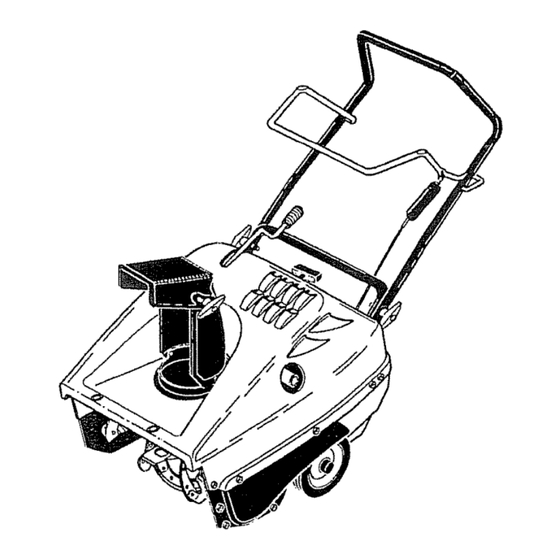

CRRFrSMRN
5 Horsepower
21 inch Single Stage
Auger Propelled
SNOWTHROWER
Electric Start
MODEL NO.
536.884681
Caution:
Read and follow all Safety
Rules and Operating
Instructions before first use
of this product.
SEARS, ROEBUCK AND CO., Hoffman Estates 60179 U.S.A.
340854 08/23/96

Advertisement

loading

Related Manuals for Craftsman 536.884681

Summary of Contents for Craftsman 536.884681

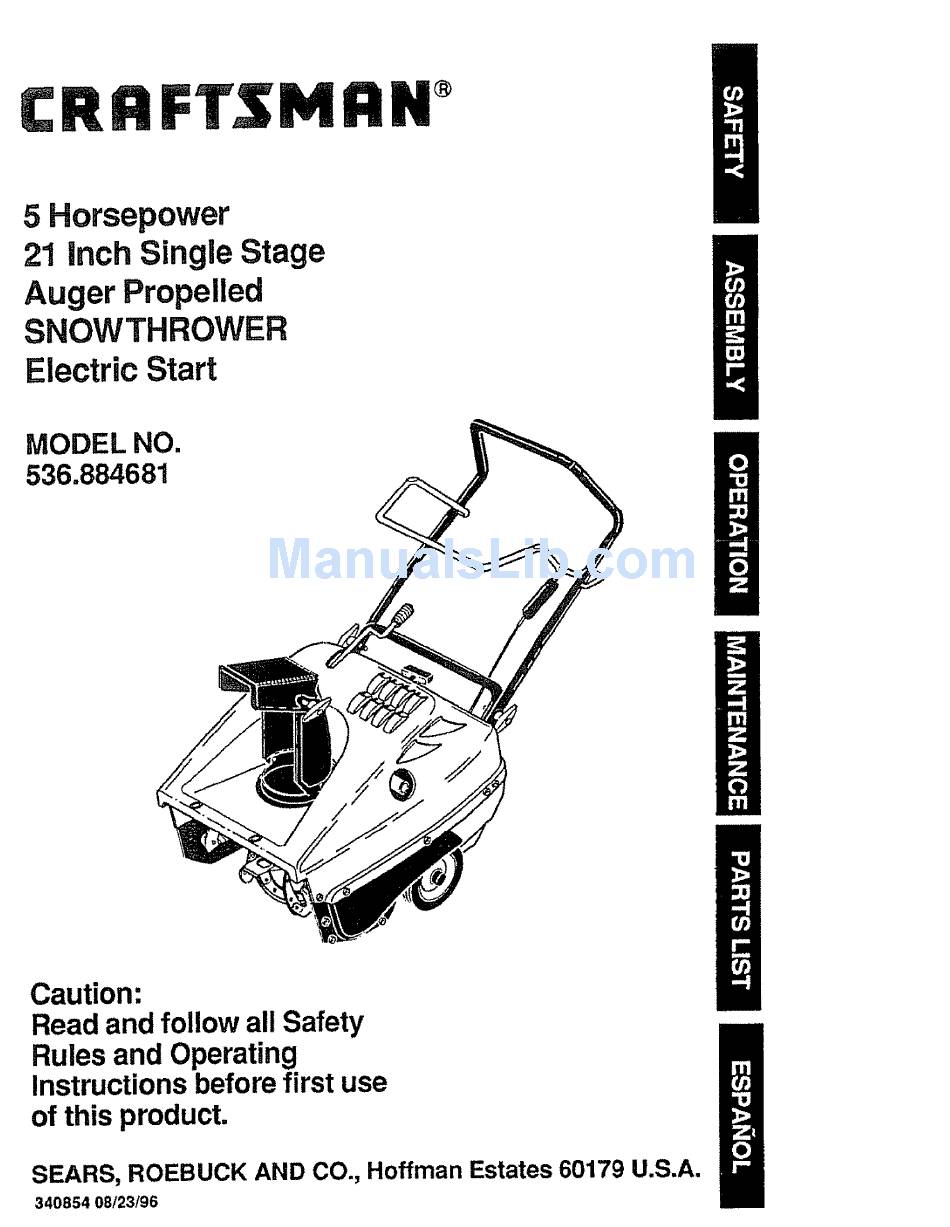

  • Page 1 CRRFrSMRN 5 Horsepower 21 inch Single Stage Auger Propelled SNOWTHROWER Electric Start MODEL NO. 536.884681 Caution: Read and follow all Safety Rules and Operating Instructions before first use of this product. SEARS, ROEBUCK AND CO., Hoffman Estates 60179 U.S.A. 340854 08/23/96...
