PCI slot location in PRIMERGY rack servers
The PCI slots of the supported PRIMERGY rack servers are located as fol-
lows.
RX200 S7

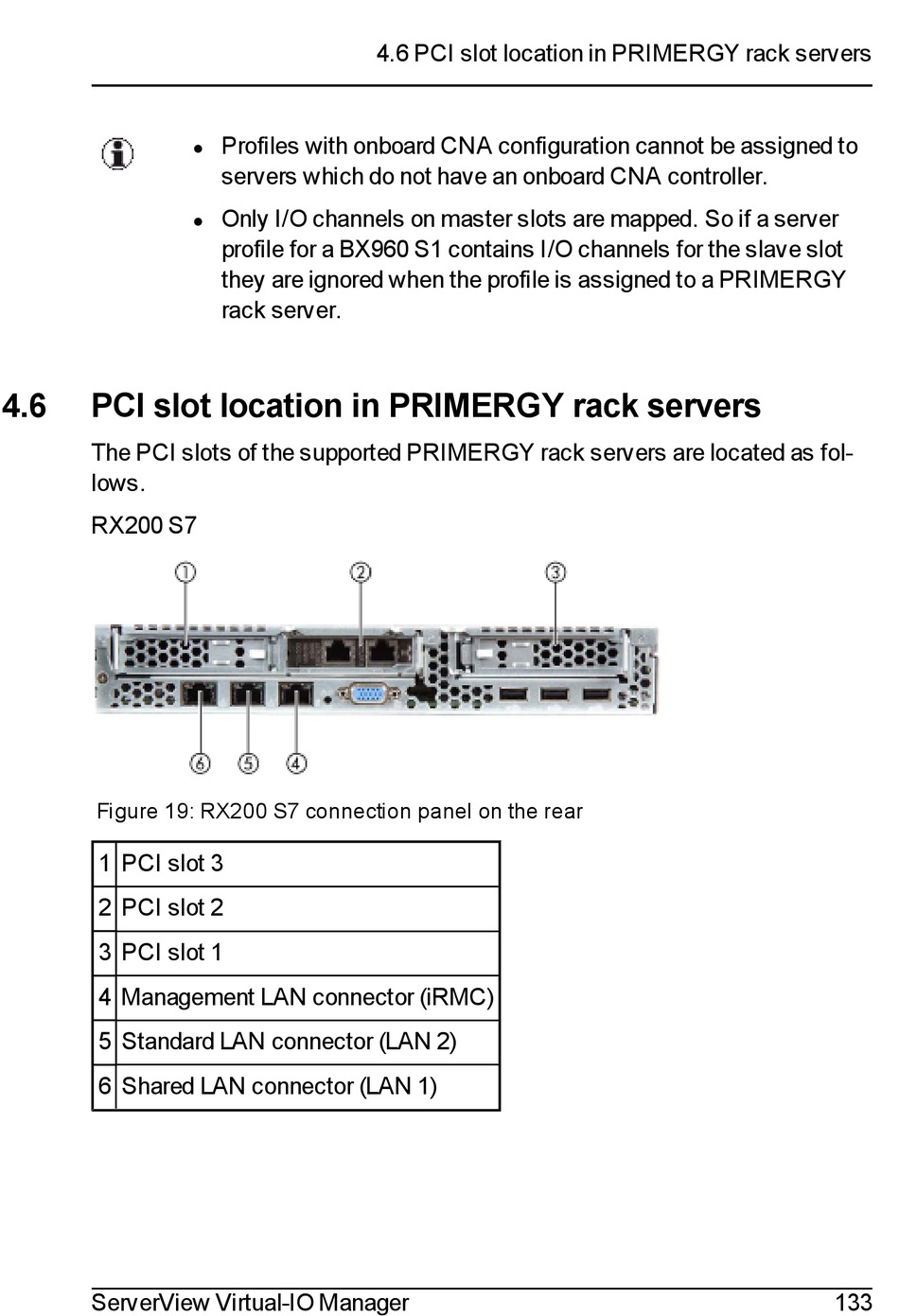

Figure 19: RX200 S7 connection panel on the rear
1 PCI slot 3
2 PCI slot 2
3 PCI slot 1
4 Management LAN connector (iRMC)
5 Standard LAN connector (LAN 2)
6 Shared LAN connector (LAN 1)
ServerView Virtual-IO Manager
Profiles with onboard CNA configuration cannot be assigned to
l
servers which do not have an onboard CNA controller.
Only I/O channels on master slots are mapped. So if a server
l
profile for a BX960 S1 contains I/O channels for the slave slot
they are ignored when the profile is assigned to a PRIMERGY
rack server.
4.6 PCI slot location in PRIMERGY rack servers
133
