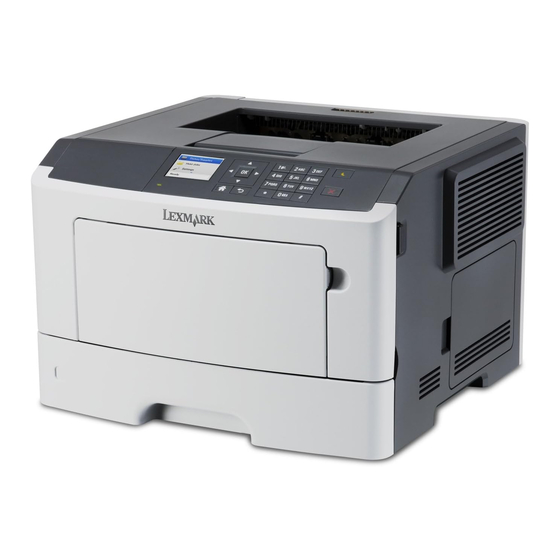

Lexmark MS510 Quick Reference

Quick Reference

Using the 2.4-inch display printer
model
Learning about the printer

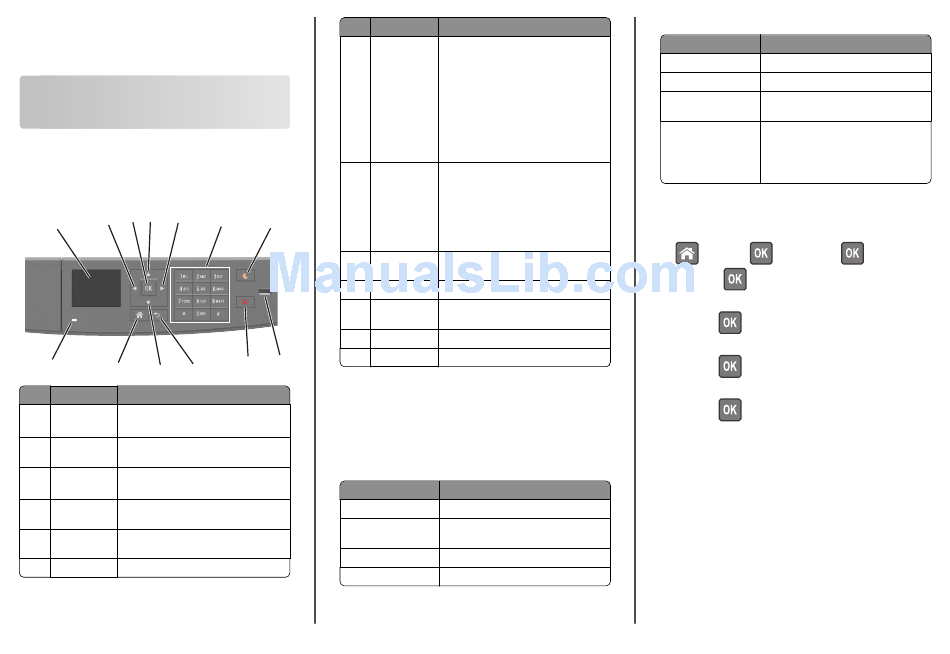

Using the printer control panel
3 4
5
2
1
13
12
10
11
Use the To
1 Display View the printer status and messages.
Set up and operate the printer.
2 Left arrow Scroll to the left.
button
3 Select button Select menu options.
Save settings.
4 Up arrow Scroll up.
button
5 Right arrow Scroll to the right.
button
6 Keypad Enter numbers, letters, or symbols.
Use the
7 Sleep button
8 USB port
6
7
9 Stop or cancel
button
10 Back button
11 Down arrow
button
12 Home button
8 13 Indicator light
9
Understanding the colors of the Sleep button
and indicator lights
The colors of the Sleep button and indicator lights on the printer control
panel signify a certain printer status or condition.
Indicator light color and its corresponding printer status
Indicator light
Off
Blinking green
Solid green
Blinking red
To
Enable Sleep mode or Hibernate mode.
The following actions wake the printer from
Sleep mode:
•
Pressing any hard button
• Opening a tray or the front door
• Sending a print job from the computer
• Performing a power‑on reset using the
main power switch
•
Attaching a device in the USB port
Connect a flash drive to the printer.
Notes:
•
Only the front USB port supports flash
drives.
•
This feature is available only in select
printer models.
Stop all printer activities.
Return to the previous screen.
Scroll down.
Go to the home screen.
Check the status of the printer.
Printer status
The printer is off or in Hibernate mode.
The printer is warming up, processing data,
or printing.
The printer is on, but idle.
The printer requires user intervention.
1
Sleep button light color and its corresponding printer status
Sleep button light Printer status
Off The printer is off, idle or in Ready state.
Solid amber The printer is in Sleep mode.
Blinking amber The printer is entering or waking from
Hibernate mode.
Blinking amber for 0.1 The printer is in Hibernate mode.
second, then goes
completely off for 1.9
seconds in a slow, pulsing
pattern
Setting the paper size and type
1 From the printer control panel, navigate to:
> Settings > > Paper Menu >
Size/Type >
2
Press the up or down arrow button to select the tray or feeder, and
then press .
3 Press the up or down arrow button to select the paper size, and
then press .
4
Press the up or down arrow button to select the paper type, and
then press to change the settings.
Configuring Universal paper settings
The Universal paper size is a user‑defined setting that lets you print on
paper sizes that are not preset in the printer menus.
Notes:
• The smallest Universal paper size is 6 x 127 mm (3 x 5 inches),
and is supported only from the multipurpose feeder.
• The largest Universal paper size is 216 x 355.6 mm (8.5
x 14 inches), and is supported from all paper sources.
1
From the printer control panel, navigate to:
> Paper
