Display and Controls

The Display and Controls are explained below and in the Setup and Configuration section.
See Figure 3.
Number Item
A
B
C
D
E
Primary
Display
F
Icon area
G
Stability
Display
H
Arrow
Buttons
I
J
6
5
1 2
Push to power the Product on and off. Hold the button down at power-up to
check the display to see that all display segments are shown.
Push to toggle the main display value between min, max, and trend modes.
Push to change the various set-up parameters of the Product.
Push to enter data in set-up modes. When the Product is displaying
temperature, push to activate the backlight.
Shows the temperature values in C or F. Also used in set-up mode.
Used in regular and setup modes.
Shows the trend and stability of data.
Secondary functions of
Backlight symbol.
Flashes when the batteries need to be changed.

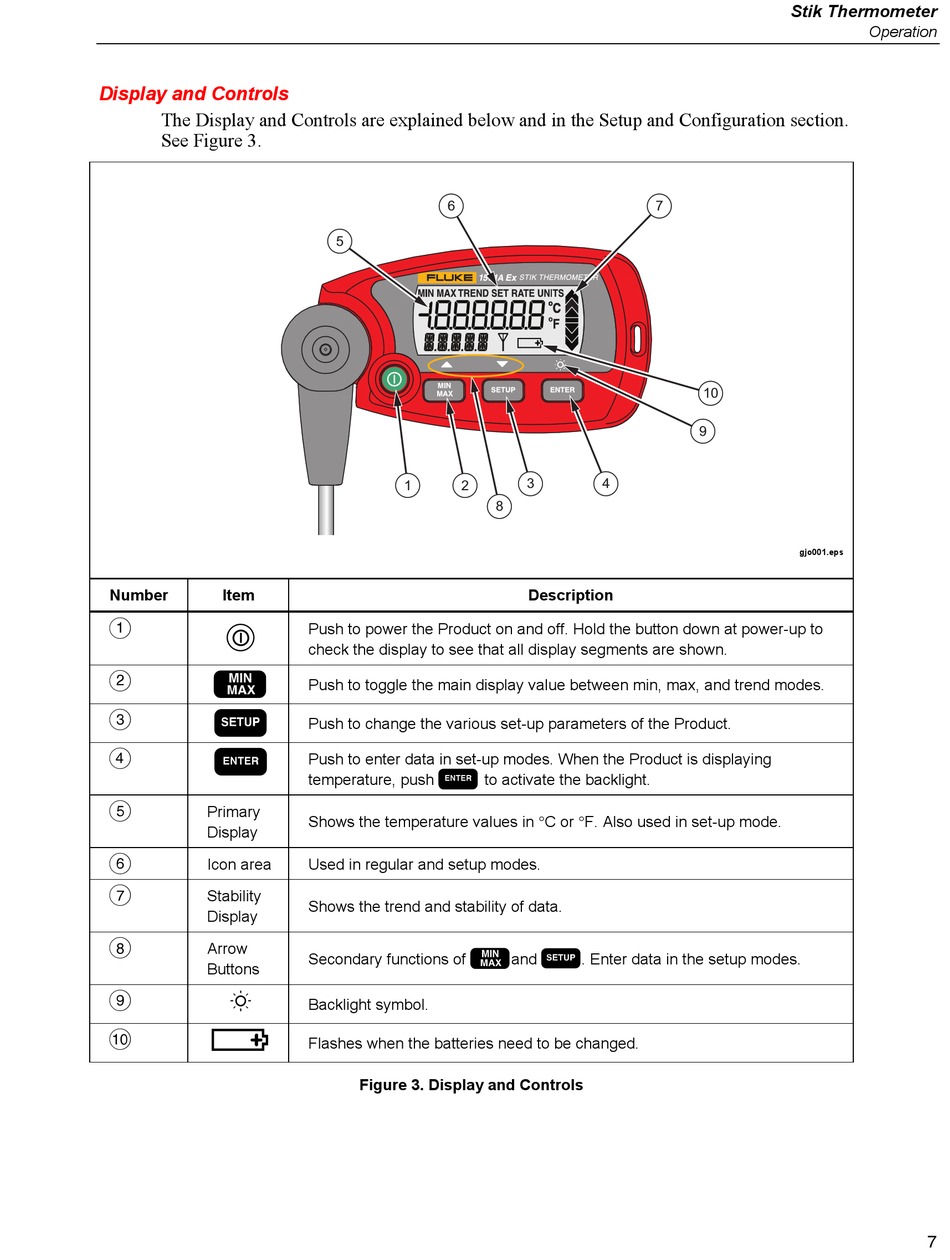

Figure 3. Display and Controls
7
3 4
8
Description
and . Enter data in the setup modes.
Stik Thermometer
Operation
10
9
gjo001.eps
7
