EverFocus EPHD08 HD DVR Quick Reference Manual

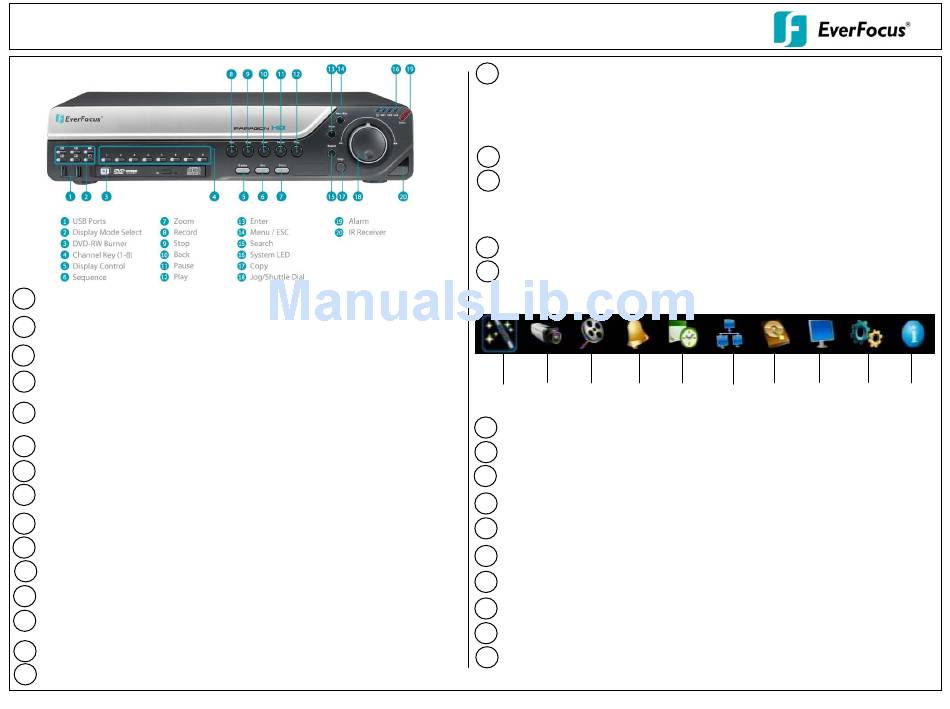

Operating elements
1 2 x USB-2.0 port for USB mouse, USB-Flash-Drive
Multiview Keys: 4x, 6x, 7x, 8x, 9x and PiP. The LED will show the selected
2
screen layout
3
DVD+RW Burner: DVD+RW drive for video data export
Channel keys 1~8 for full screen display of selected channel. The LED will show
4
the active channel
DISPLAY: The DISPLAY key switches titles and status messages on the Screen in
5
4 steps.
6 SEQ: Sequence key for automatic switching of a defined camera sequence
ZOOM: 4x electronical zoom
7
Record: RECORD key for manual start of recording / recording standby (event
8
recording). LED will be ON if DVR is recording or in record standby.
9 STOP: STOP key for Playback and Record
10 BACK: Reverse Playback key
11 PAUSE: Image freeze in playback mode
PLAY: Playback key
12
ENTER: Enter Key for menu operation and alarm acknowledge Turn camera
13
audio ON/OFF when viewing full screen camera.
14
MENU/ESC: Used to bring up Main Menu or exit from sub-Menus.
15
SEARCH: The SEARCH key opens the SEARCH menu
EPHD08 HD DVR Quick Reference Guide
System LED
16
POWER: LED indicating power on.
HDD1/2:LED indicating HDD1 / HDD2 active
HDD1: Internal HDDs in DVR
HDD2: External HDDs connected by eSATA port
LAN: LED for network traffic
17 COPY: The COPY key opens the menu for video data export
JOG/SHUTTLE: Shuttle (outer wheel): In playback mode, use the SHUTTLE for fast
18
forward / fast reverse playback.
JOG (inner wheel): In PAUSE mode, use the jog to move frame by frame. Within
menu functions, use the jog to adjust the values / parameters. Use Jog to highlight
individual cameras. Use either Shuttle or Jog to switch between MENU parameters.
19
ALARM: LED for alarm status
20 IR Receiver: Receiver for IR remote control
Description of on-screen main menu (control bar)
4
1 2 3
1 Express menu (manual chapter 4.2)
Camera menu (manual chapter 4.3)
2
3 Record & Play menu (manual chapter 4.4)
4
Alarm & event menu (manual chapter 4.5)
5 Schedule menu (manual chapter 4.6)
6 Network menu (manual chapter 4.7)
Disk menu (manual chapter 4.8)
7
8 Display menu (manual chapter 4.9)
9 System menu (manual chapter 4.10)
10 Information menu (manual chapter 4.11)
6 7 8
5
P/N: 4605XEHR08002AR_Ver.A
9 10
