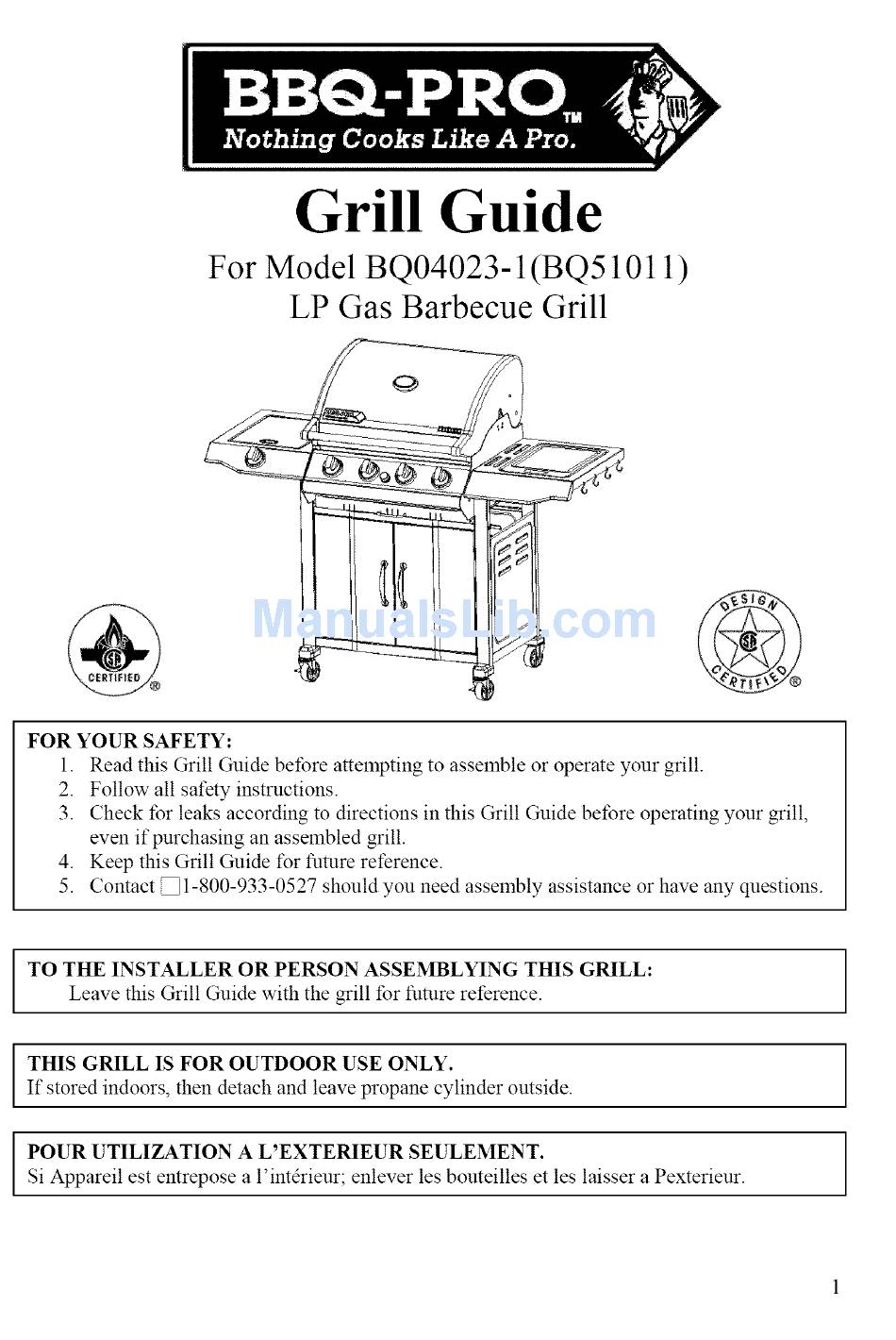

Grill Guide
For Model BQ04023-1 (BQ51011)
LP Gas Barbecue Grill
FOR
YOUR
SAFETY:
1. Read this Grill Guide
before attempting
to assemble
or operate
your grill.
2.
Follow
all safety
instructions.
3.
Check
for leaks according
to directions
in this Grill Guide
before operating
your grill,
even if purchasing
an assembled
grill.
4.
Keep this Grill Guide for future reference.
5.
Contact
_ 1-800-933-0527
should
you need assembly
assistance
or have any questions.
TO THE INSTALLER
OR PERSON
ASSEMBLYING
THIS GRILL:
Leave this Grill Guide with the grill for furore reference.
THIS
GRILL
IS FOR
OUTDOOR
USE ONLY.
If stored indoors,
then detach
and leave propane
cylinder
outside.
POUR
UTILIZATION
A L EXTERIEUR
SEULEMENT.
Si Appareil
est entrepose
a l'intdrieur;
enlever
les bouteilles
et les laisser a Pexterieur.
Advertisement
Related Manuals for BBQ BQ04023-1 (BQ51011) Guide
Summary of Contents for BBQ BQ04023-1 (BQ51011) Guide
- Page 1 Grill Guide For Model BQ04023-1 (BQ51011) LP Gas Barbecue Grill YOUR SAFETY: 1. Read this Grill Guide before attempting to assemble or operate your grill. Follow all safety instructions. Check for leaks according to directions in this Grill Guide before operating your grill, even if purchasing an assembled...
-
Page 2: Safety Precautions
Safety Precautions Always read and follow all DANGER, WARNING, YOUR SAFETY notices in this Grill Guide. Failure to do lFlay result in serious bodily iniury or death, or in a fire or an explosion causing damage to property. 1. Grill installation must conform with local codes, or in their absence,... -
Page 3: Table Of Contents
Table of Contents Safety Precautions ..................Table of Contents ..................Warranty ....................Customer Support Center ................Assembly Instructions ................5-15 General Information and Operation ............16-25 Trouble Shooting Guide ................26-27 Write down here and keep for future reference Date of Purchase: Kmart Corporation Hoffman... -
Page 4: Warranty
Limited Warranty manuthcturer warrants original This limited warranty does not cover the cost of consumer-purchaser that this product shall inconvenience or property damage free from detects in workmanship and materials failure of the product and does not cover damage under normal reasonable when... -
Page 5: Assembly Instructions
Assembly Instructions This page will give you an overview of information to assemble your grill. The fbllowing pages will show in step-by-step detail how to do so. We offer the following suggestions to make your grill assembly as easy possible. 1.) Read through the entire Assembly Instructions... - Page 6 BQ04023-1(BQ51011) Detail Parts List 1 Thermometer 36 Side Burner Shelf Frame Thermometer Seat 37 Side Burner Inside Frame Stainless Steel Lid - Outer 38 Side Burner Cover Support 39 Side Burner Electrode Logo Plate Name Plate 40 Side Burner 41 Side Burner Rear Bracket Hood Side Panel - Right...
- Page 8 Assembly Parts List Cabinet a ndFireboxAssembly Side Burner Assembly... Side Shelf Assembly... Lockina Casters...2PCS Standard Casters...2PCS Cutting Board... 1PC Heat Diffusers...4PCS Cooking Grates...2PCS Warming Rack... ] PC Warming Rack Bracket(right) Caster Caps...4PCS Warming Rack Bracket(left) !WARNING! DO NOT DISPOSE OF BATTERIES IN FIRE.
- Page 9 STEP1 Insert 4 Caster Caps into the legs of the Cabinet and Firebox Assembly. Ensure the arrows on the top of the Caster Caps point out and away t_om the cabinet. Insert 2 Locking Casters into 2 Caster Caps in the t_ont legs of Cabinet and Firebox Assembly.
- Page 10 STEP3 Insert 1 Attach the Side Burner Assembly to the Cabinet and Firebox Assembly using 2 Phillips Head Bolts (A) and 2 Lock Washers (D) going t_om the inside of the firebox into the Side Burner Assembly as shown Insert 1.
- Page 11 STEP 5 Insert the side burner valve into the side burner. valve should be centered in the stein robe of the side burner. STEP 6 Insert the valve stein up through the hole in the side burner front panel from the back side. Secure to the side burner...
- Page 12 STEP 7 Slide the side burner ignition wire over the side burner igniter connector. STEP 8 Place the Heat Diffusers inside the firebox. Ensure the long extensions on the front of the Heat Diffusers go imo the appropriate holes at the *}ont of the firebox.
- Page 13 STEP 9 Insert the Cooking Grates into the firebox. The bottoms of the Cooking Grates have a support on each corner that should sit on the firebox lip. STEP 10 Attach the Left and Right Warming Rack Support Brackets to the inner left and right sides of the firebox walls using 4 Phillips Head Bolts (B) and 4 Lock...
- Page 14 STEP 11 Place the Cutting Board into the Side Shelf Assembly. Insert the smaller ends of "S" Hooks (E) into the side of the Side Shelf Assembly. STEPP Unscrew the electronic igniter top. Place the "AA" Battery (I) into the electronic igniter with the Positive (+) end facing up.
- Page 15 STEP 13 Pull the cylinder support ring up to the top of the cabinet. Place the LP cylinder down into the tank support hole in the bottom panel. Ensure the valve faces toward the left panel of the cabinet. Unhook the LP Cylinder Support...
-
Page 16: General Information And Operation
General Information and Instructions Your new BBQ Pro Grill has been designed and manufactured to high quality standards. It will provide with many years of enjoyment with a minimal amount of maintenance. Please keep in mind the following YOUR SAFETY. OPERATION Your gas grill requires reasonable... - Page 17 ! WARNING 1. Do not attemptto usea cylinderwith anyothertypeof connection device. 2. Do not attemptto useacylinderwith a largercapacity LP CYLINDER FILLING AND EXCHANGE Someareas only allowyou to exchange your emptycylindertbr areplacement thatis alreadyfull. Otherareas allowyou to refll yourcylinder. If you arein anareawhereyou canrefill your cylinder: 1.
- Page 18 Bubbles indicate a leak. In that case, call your LP dealer or fire department immediately. DANGER TRANSPORTATION STORAGE 1. Always use the Safety Cap when transporting or storing your cylinder. Do not store in a building, garage, or other enclosed area.
- Page 19 Theregulatormustenterthe cylindervalvein a straight line. Center this nipple of the regulator into the cylinder valve. _.C.C.1 T ype 1 Connector ! WARNING 1. Do not connect this grill to any unregulated sources of propane. Protect the regulator fitting from damage when disconnected.
- Page 20 Grill Placement ! AVERTISSEMENT ! FOR YOUR SAFETY 1. Ddgagement minimal a respecter entre 1. Minimum clearance required froln sides les cotes et l'arribre de l'appareil et uns and back of unit to adjacent combustible construction combustible ac[iacente construction is 24 inches (61 cm).
- Page 21 LIGHTING THE MAIN BURNERSUSING ELECTRONIC IGNITION 1. ()penthe lid. 2. Ensureall burnercontrolknobsarein the"OFF' p osition. Turn on the LP gas by slowly turning the hand wheel on the cylinder valve. Turn one main burner control knob to "High". Depress the electronic ignition button and hold down.
- Page 22 TURNING OFF YOUR GRILL 1. Turn all burnercomrolknobsto the"Off' position. 2. Turn offthe gassupplyat theLP tank by mining thevalveclockwise. Cleaning Your Grill ! WARNING 1. Do not clean any part of your barbecue grill in a self-cleaning oven. Do not use oven cleaners, abrasive kitchen cleaners,...
- Page 23 CLEANING THE BURNERS 1. EnsuretheLP gasis turnedoff attheLP cylinder. 2. Remove thecookinggrates, h eatdiffusers,andgrease tray. 3. Remove thePhillipsHeadscrews locatedatthebackendof eachburner. 4. Lift eachburnerup andout. 5. Cleantheinsideof the burner usinga stiffwire. A straightened c oathangeris onesuggested t ool. An alternative wayto cleanthe insideof the burneris usingcompressed air. Alwaysweareyeprotectionif usingthis method.Neverenlargethe burner ports during cleaning.
- Page 24 DIRECT - used for preheating and searing Use Direct cooking to sear meats. This helps to keep tbod moist by locking in juices. Some food, such as steak, is first seared using Direct cooking, and then finished cooking using the Indirect method.
-
Page 25: Trouble Shooting Guide
2. Thethennolneter m easures t hetemperature a tthetop of thelid. Thetemperature d ownby thecooking grates is generallySOlnewhat warmer. 3. Alwayscookwith thelid down. Thisprovidesmoreevencirculationof heat,andthe foodcooksfaster. Relnember t hatheatis lost eachtime thehoodis raised. 4. MotherNaturecanimpactyourgrilling times. Allow morecookingtime for cold,wind, andhigher altitudes.Werecommend y ou placethe grill in anareaprotected frommuchwind. - Page 26 IRREGULAR FLAME OR YELLOW FLAME 1.) New burner may have residual oil, which will burn off. 2.) Tubes in burners are blocked. Relnove and clean. 3.) Burners have a high grease or dirt build-up. Remove and clean. 4.) Burners are not aligned properly with the valves.
- Page 27 gasline in eachgrill arealsoindividuallytested wheneachgrill comesoffthe assembly linejust prior to packaging.Eachburneris ignitedtk_r t his test. What is the humming noiseI sometimes herecomingfrom my regulator? Thehulrnningsound you canhearisjust gasflowingthroughtheregulator.Thereis no needto be concerned w ith a low volumeof noise. My grill hasa low flame on someburners,or someburners will not light at all. What can cause this? Thiscanbecaused by theregulator'sflow limiting device,which is generated b y a sudden change in pressure.Opening thetankvalvetoo quickly cancause this.
- Page 28 Customer Support PHONE: 1-800-933-0527 Hours 8:30am to 5:00 pm Central time FAX: 1-847-252-1001 WEBSITE: http://www.omaha_rills.com MAIL: Customer Support - Barbecues 1375 Mitchell Blvd. Schaumburg, IL 60193...
- Page 29 Product Registration Card Thank you for purchasing a BBQ Pro . Please complete and return the Registration Card or visit us online to register your grill. 1. First Name: Middle Initial: I II Last Name: I II 2. Address: (number and street) Apt: I II I II...
- Page 30 WA_A_TY _' _'_'_A _" _ _...
