PACKAGING

The packaging of this appliance is design to withstand the
transportation from the factory to the point where it will be
installed in the recreational vehicle.
Before starting to install the appliance, please, make sure all
parts of the packaging have been removed, so there will not
be anything left that may come into contact with heat parts of
the appliance or obstruct the combustion exhaust gases or the
air movement around the cooling unit.

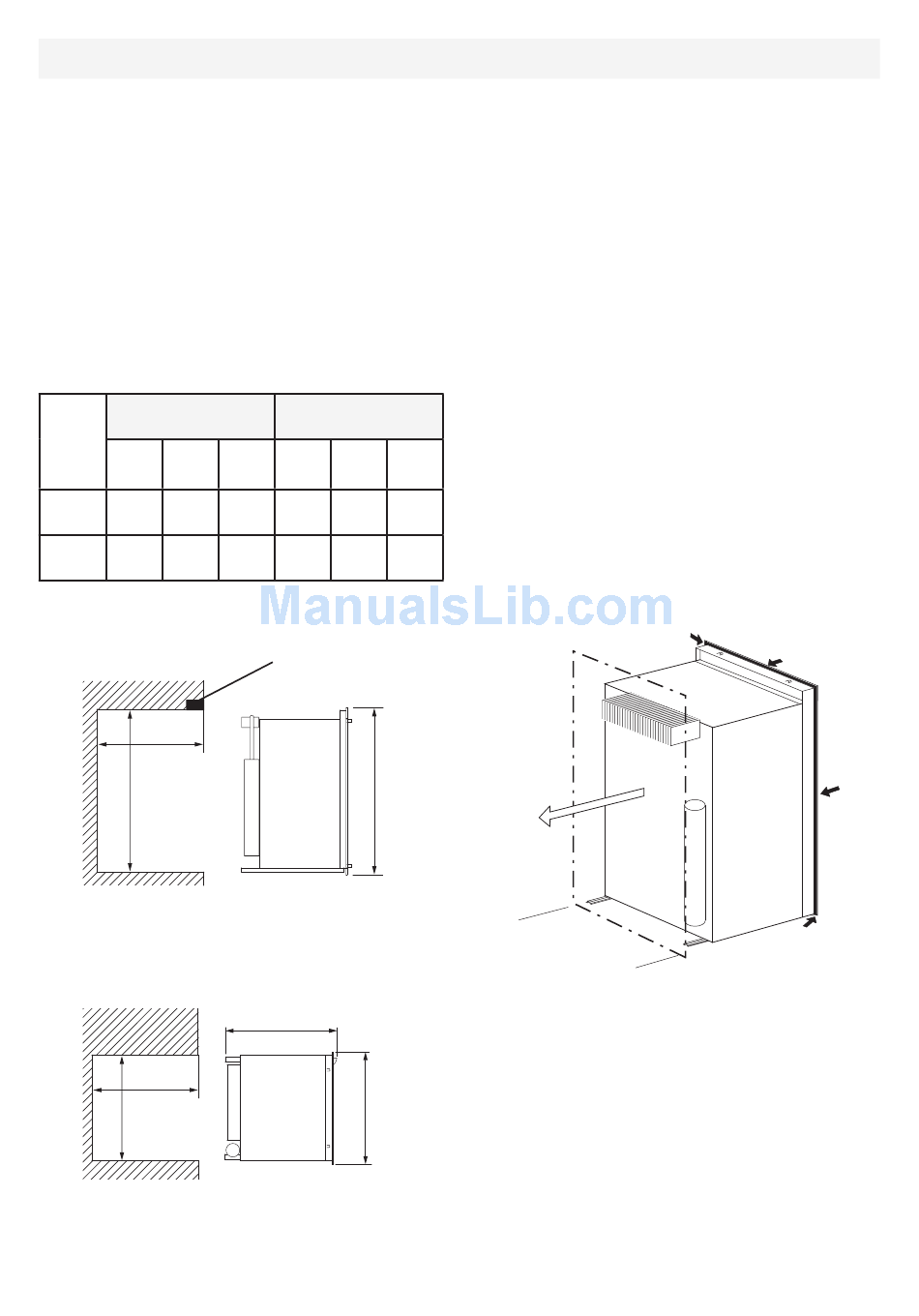

DIMENSIONS

The following dimensions (in mm) offer adequate space for
service and proper installation.
OvERALL DIMENSIONS
Height Width
A B
RM2453 948 632
RM2553 1104 632
SiDE viEw
D
H
viEw FROM AbOvE
D
W
INSTALLATION INSTRUCTIONS
RECESS DIMENSIONS
Depth Height Width Depth
C H W
627 928 602
627 1083 602
Wood strip
must be in place
A
C
B

INSTALLING ThE REFRIGERATOR

• The refrigerator must be level, installed on a solid floor
and in a substantial enclosure. With the vehicle carefully
leveled, the refrigrigerator should level both ways in the
freezer compartment.
• Note! Do not install the appliance directly on carpeting.
Carpeting must be removed or protected by a metal or
wood panel beneath the appliance, which extends at least
full width and depth of the appliance.
• A wood strip must be in place across the upper opening
of the enclosure. The top frame of the refrigerator will be
anchored to the wood strip with screws.
• When installing the refrigerator in the enclosure, all areas
within the recess in which the refrigerator is installed must
be sealed. Make sure that there is a complete seal between
the front frame of the refrigerator and the top, sides and
bottom of the enclosure. A length of sealing strip is ap-
D
plied to the rear surface of the front frame for this purpose.
The sealing should provide a complete isolation of the
610
appliance's combustion system from the vehicle interior.
Note! Be careful not to damage the sealing strip when the
610
refrigerator is put in place.
