Installation
Instructions
Kit Contents:
Ref. Part No.
Qty.
Description
1
1716697
3
BLADES, Mower
2
1726578
1
PLATE, Mounting
3
1732349A
1
BAFFLE ASSEMBLY
4
2171600
1
STRAP, Rubber
5
1933988
8
NUT, Push, 5/16
6
1960096
1
WASHER
7
1960393
1
SCREW, Phillips, #10-24 x 1
8
1933896
1
NUT, Hex, Nylock, #10-24
9
1927557
10
NUT, Hex, Flange Lock, 5/16-18
10
1931332
10
CARRIAGE BOLT, 5/16-18 x 5/8
11
1716150A
1
BAFFLE & DEFLECTOR, LH
12
1726913A
1
BAFFLE & DEFLECTOR, RH

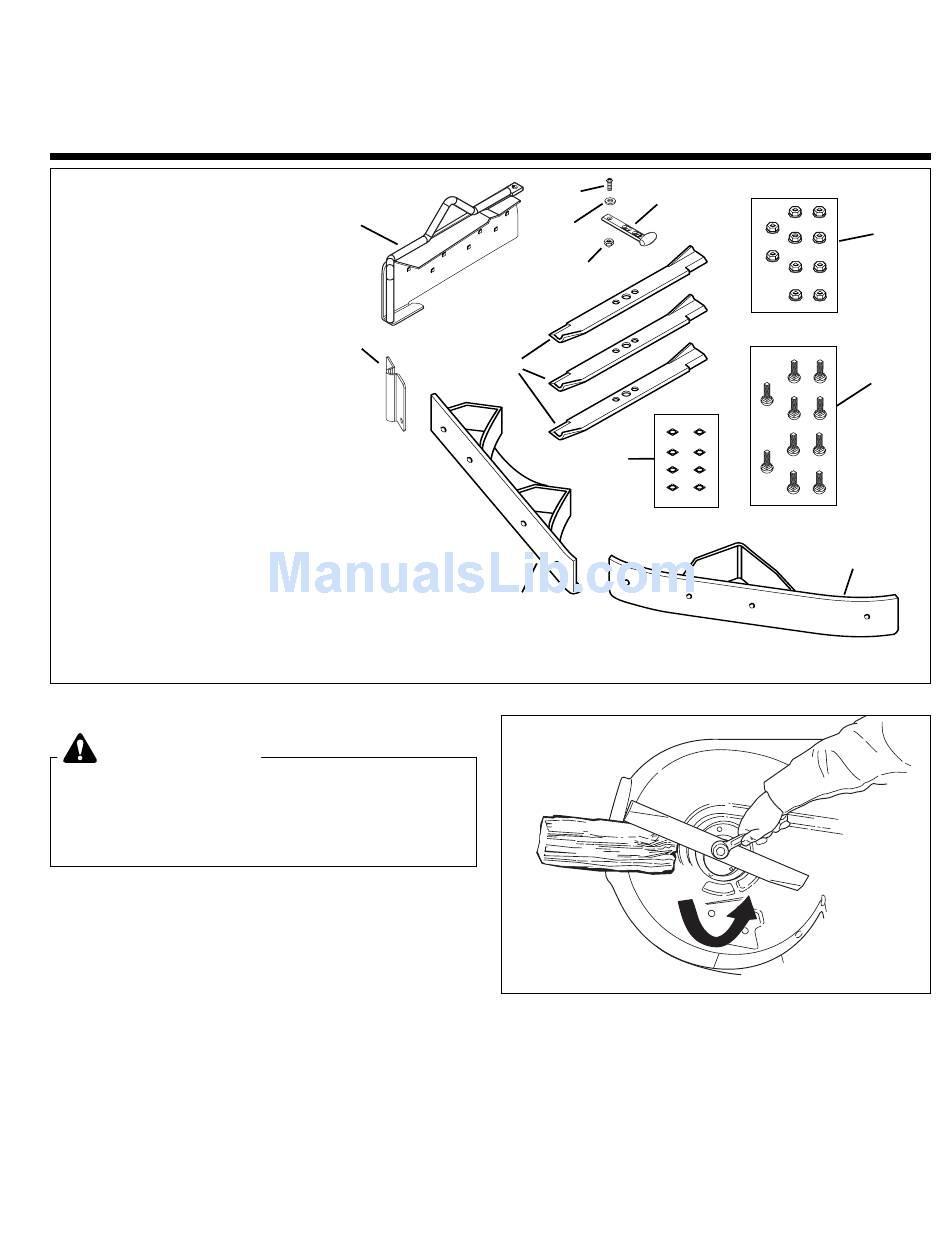

Figure 1. Contents
WARNING
Before beginning any service work turn off the
PTO, set the parking brake, turn off the ignition,
remove the key, and disconnect the spark plug
wire(s).
INSTALLATION
1. Remove the mower deck. Refer to Operator's
Manual (see Mower Deck Removal & Installation).
2. See Figure 2. Remove the blades. Use a block of
wood to prevent blade rotation while loosening the
capscrew by turning it counterclockwise.
For Regent II / 500 / 2500 / LT-200 Series Lawn Tractors
3
2
1
12
Figure 2. Blade Removal
1
50" Mulch Kit
Mfg. No. 1694958
7
4
6
8
5
9
10
11
LOOSEN
Advertisement
Related Manuals for Simplicity 50” Mulch Kit
Summary of Contents for Simplicity 50” Mulch Kit
- Page 1 Installation 50” Mulch Kit Mfg. No. 1694958 Instructions For Regent II / 500 / 2500 / LT-200 Series Lawn Tractors Kit Contents: Ref. Part No. Qty. Description 1716697 BLADES, Mower 1726578 PLATE, Mounting 1732349A BAFFLE ASSEMBLY 2171600 STRAP, Rubber 1933988 NUT, Push, 5/16 1960096 WASHER...
-
Page 2: Mulch Kit
Installation Instructions Mulch Kit 3. Remove the capscrew (D, Figure 3), spring washer (C), hex washer (B), and blade (E). 4. Reinstall the new blade with the lift wings (E, Figure 3) pointing up toward the mower deck as shown. 5. - Page 3 Installation Instructions Mulch Kit A. Mounting Plate B. Carriage Bolts & Push Nuts C. Nut, Flange Lock, 5/16-18 D. Baffle, RH E. Baffle, LH F. Carriage Bolts, 5/16-18 x 5/8 Figure 5. Baffle Installation 7. Install RH baffle (D) and secure with carriage bolts & push nuts (B) and nuts (C).
- Page 4 M A N U F A C T U R I N G , I N C . Form No. 1732615-03 Rev. 4/2006 500 N Spring Street / PO Box 997 © 2006 Simplicity Manufacturing, Inc. All Rights Reserved Port Washington, WI 53074-0997 USA TP 200-4262-03-AT-SMAN...
