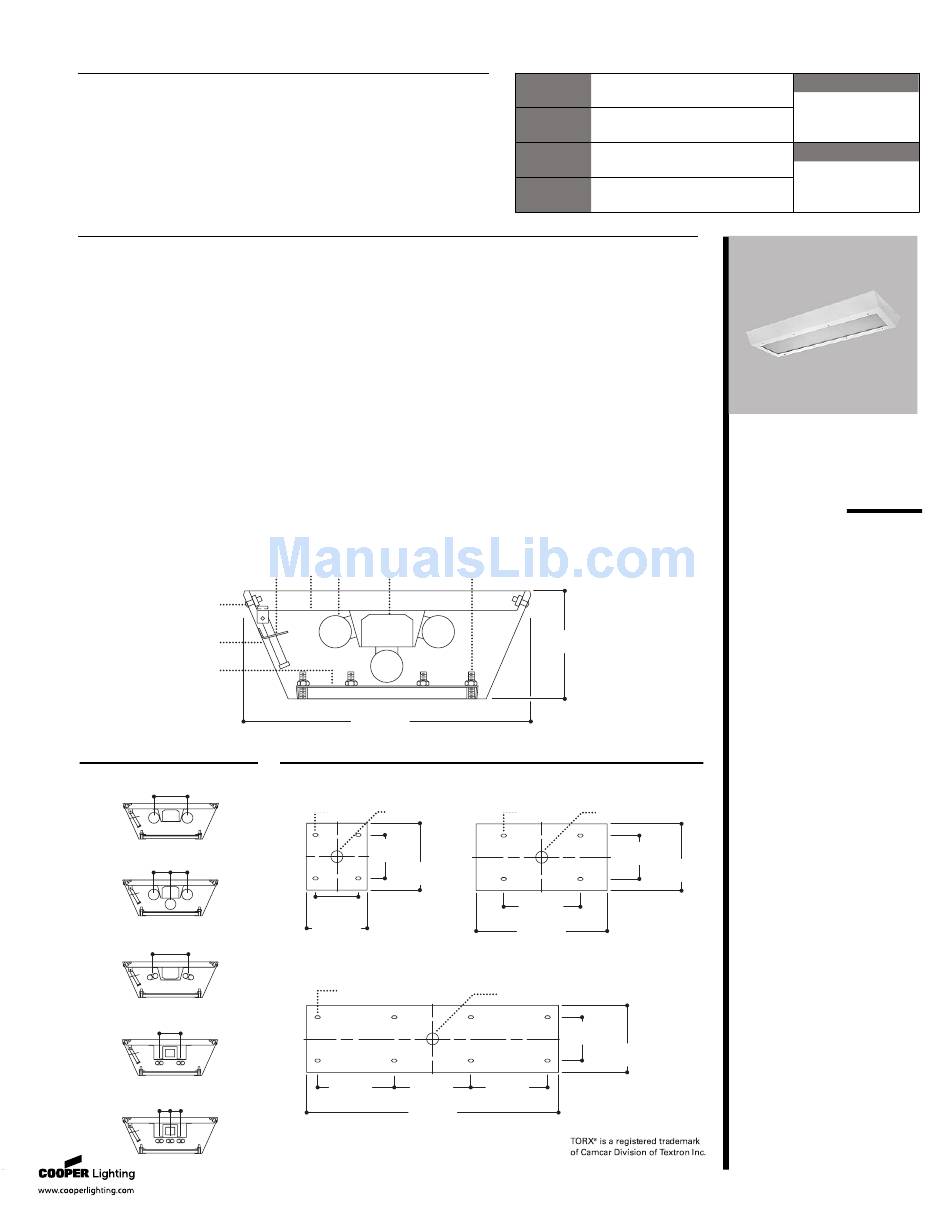

Cooper Lighting FAIL-SAFE FUS12 Specification

DESCRIPTION

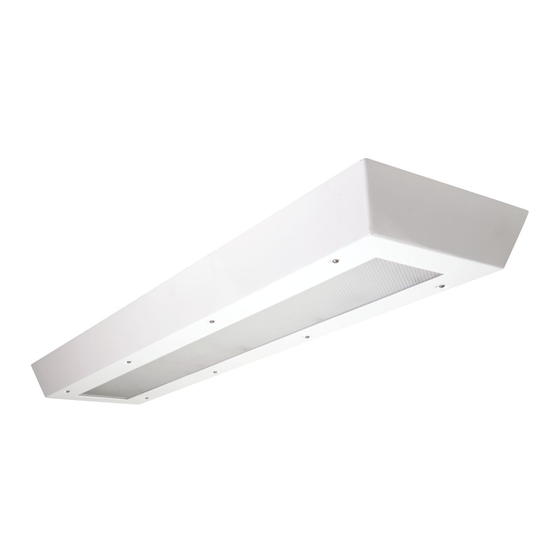

The Fail-Safe FUS Series combines maximum security construction features
with energy saving technology. This surface mounted luminaire utilizes a
one piece clamshell housing, security lensing and tamper resistant fasteners
to maximize impact resistance and prevent contraband concealment and
unauthorized fixture penetration. U.L. listed and C.S.A. certified for damp
locations.
The FUS Series is ideal for confinement/security applications. Suitable for
use in inmate cells, psychiatric wards, secure corridors and general
population areas.
SPECIFICATION FEATURES
A ... Lens
(To be specified.) Choice of
prismatic acrylic, prismatic
polycarbonate or prismatic
tempered glass on fixture side,
clear polycarbonate or clear
tempered glass on environmental
side. See Lens Options.
B ... Fasteners
Stainless steel tamper-resistant
TORX® screws with center pin
reject are standard. Allen-head
screws with center pin reject
optional.
C ... Housing
Clamshell design combines
die-formed 12 ga., 14 ga. or 16 ga.
CRS body with continuous welded
and ground ends to form a
one-piece,
B
C
A
LAMP CONFIGURATIONS
4 11/16"
[119mm]
2 3/8" 2 3/8"
[60mm] [60mm]
5"
[127mm]
3"
[76mm]
1 1/2" 1 1/2"
[38mm] [38mm]
Specifications and Dimensions subject to change without notice.
Housing Cont.
seamless, doorless housing which
maximizes impact resistance and
prevents contraband concealment
and unauthorized fixture
penetration. Standard white high
reflectance polyester powder coat
finish. Gloss: 85%; Reflectance:
93%; Hardness: 2H; Salt Spray: 500
Hours.
D ... Lamps
(By Others)
E ... Lens Retention
Lens secured by thru-studs and
vertically adjustable internal CRS
hold-downs.
F G D H
1 3 9/1 6"
[344mm]
MOUNTING DIMENSIONS
(4) 9/1 6" x 1"
[1 4mm x 25mm]
2 1/4" [57mm]
Mtg. Holes
Dia. Access Hole
8"
[203mm]
1 3 9/1 6"
[344mm]
8"
[203mm]
1 2 1/4"
[31 1mm]
(4) 9/1 6" x 1"
[1 4mm x 25mm] Mtg. Holes
1 5 3/1 6"
1 5 3/1 6"
[386mm] [386mm]
50 1/8"
[1273mm]
Consult your representative for additional options and finishes.
Catalog #
Project
Comments
Prepared by
F ... Hinge
Internal Security Hinge leaves no
exposed parts for weapon
fabrication and facilitates
maintenance.
G ... Backplate
Die-formed CRS backplate forms
an irretrievable blade trap to
prevent contraband concealment
(gauge to match housing.)
H ... Ballast
Standard Class P, CBM/ETL ballast.
Labels
U.L. listed, C.S.A. certified,
standard damp label, optional wet
label.
E
5"
[1 27mm]
(4) 9/1 6" x 1"
[1 4mm x 25mm]
2 1/4" [57mm] Dia.
Mtg. Holes
Access Hole
8"
[203mm]
1 5 3/1 6"
[386mm]
26 5/1 6 "
[668mm]
2 1/4" [57mm] Dia.
Access Hole
8"
[203mm]
1 3 9/1 6"
[344mm]
1 5 3/1 6"
[386mm]
FAIL-SAFE
Type
13W - 120W
ULTIMAX SURFACE
E N E R G Y D ATA
Input Watts:
STD Ballasts & STD Lamps
(1) 13W Twin Tube: 17W
(2) 13W Twin Tube: 34W
(3) 13W Twin Tube: 51W
1 3 9/1 6" (1) 20W T12 Fluorescent: 32W
[344mm]
(2) 20W T12 Fluorescents: 53W
(3) 20W T12 Fluorescents: 85W
(1) 40W Biaxial Fluorescent: 45W
(2) 40W Biaxial Fluorescents: 82W
ES Ballasts & STD Lamps
(1) 17W T8 Fluorescent: 23W
(2) 17W T8 Fluorescents: 45W
(3) 17W T8 Fluorescents: 68W
(1) 32W T8 Fluorescent: 37W
(2) 32W T8 Fluorescents: 71W
(3) 32W T8 Fluorescents: 108W
(1) 40W T12 Fluorescent: 50W
(2) 40W T12 Fluorescents: 86W
(3) 40W T12 Fluorescents: 136W
ES Ballasts & ES Lamps
(1) 40W T12 Fluorescent: 44W
(2) 40W T12 Fluorescents: 76W
(3) 40W T12 Fluorescents: 120W
Electronic Ballast Data
Consult Factory
ADC041624
03/29/2007 8:40:27 AM
®
Date
FUS12
Fluorescent
LUMINAIRE
