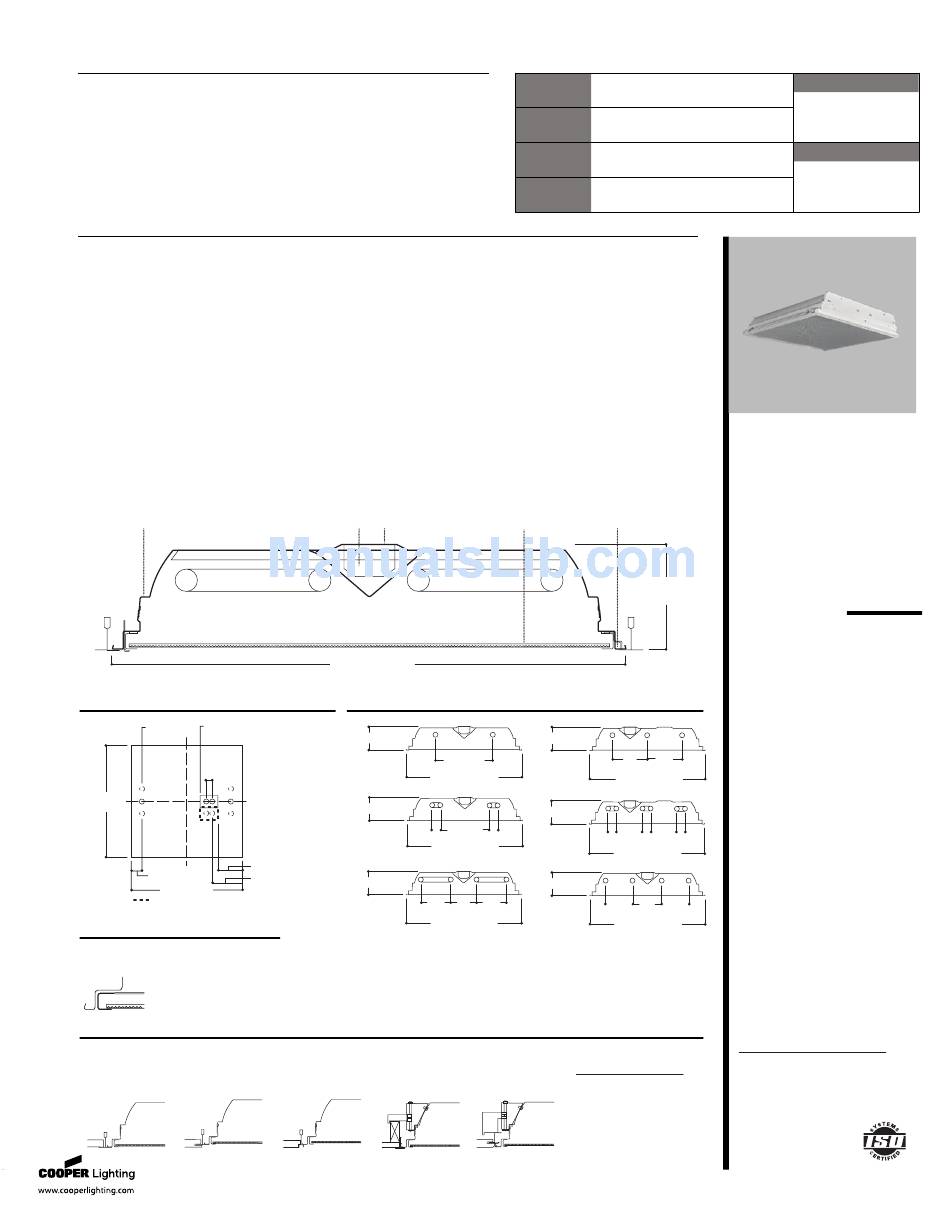

Cooper Lighting Indoor Furnishings Specification Sheet

DESCRIPTION
The VRGC Series features a nominal 4-1/2" deep para-contoured fixture
housing, high reflectivity and optimum lamp to lens spacing. The series
produces total uniformity of light in the luminous area and is compatible
with all of today's popular ceiling systems and is available with a number of
options and accessories for application versatility.
The specification luminaire is designed to offer maximum efficiency and
performance for today's unique interior specifications. The VRGC is perfect
for use in office spaces, schools, hospitals, industrial facilities and
commercial areas with high traffic volume.
SPECIFICATION FEATURES
A ... Construction
Nominal 4-1/2" deep,
para-contoured housing, die
formed code gauge, prime cold
rolled steel. Die embossed housing
has full length die formed
stiffeners for added strength. Deep
"V" ballast/wireway cover easily
removed without tools. Die formed
captive lampholder bracket fully
encloses lampholder wiring
permitting easy lampholder
replacement. Heavy endplates are
securely attached with interlocking
tabs and screws. Four auxiliary
fixture end suspension points
provided. KOs for continuous row
wiring.
A
MOUNTING DATA
Access Plate
7/8" [22mm]
7/8" [22mm] K.O. (2)
K.O. (2)
1-1/2"
[38mm]
23-3/4"
[603mm]
5-1/4" [133mm]
3-3/4" [95mm]
6-1/4" [159mm]
24" [610mm]
Indicates a 3 Lamp Channel Diagram
DOOR FRAME
VRGC
Flat, White
Steel
CEILING COMPATIBILITY
G G
Grid/Lay-in Concealed T
Standard
Specifications and Dimensions subject to change without notice.
Endplates have integral Grid-Lock
feature for safety and convenience.
B ... Electrical*
Ballasts are CBM/ETL Class "P" and
are positively secured by mounting
bolts. Pressure lock lampholders.
UL/CUL listed. Suitable for damp
locations.**
C ... Finish
Multistage, iron phosphate
pretreatment ensures maximum
bonding and rust inhibitor.
Lighting grade, baked white
enamel finish.
B C
23-3/4" [603mm]
LAMP CONFIGURATIONS
4-5/8" [117mm]
10-3/4"
[273mm]
23-3/4" [603mm]
4-5/8" [117mm]
8-7/8"
X
X=1-5/8" [225mm]
[41mm]
23-3/4" [603mm]
4-5/8" [117mm]
6"
X
[152mm]
X=4-5/8"
[117mm]
23-3/4" [603mm]
G F
Slot Grid Flange Trim
With Supporting
Swing Gates
Consult your representative for additional options and finishes.
Catalog #
Project
Comments
Prepared by
D ... Hinging/Latching
Positive cam action spring loaded
steel latches with baked white
enamel finish. Safety-lock T-hinges
allow hinging and latching either
side.
E ... Frame/Shielding
Die formed, heavy gauge, flat steel
door with reinforced mitered
corners and baked white enamel
finish. Positive light seals. Frame
and lens are secured to housing
with 4 or 6 stainless steel TORX
screws.
E
D
4-5/8"
[117mm]
4-5/8" [117mm]
7"
[178mm] [178mm]
23-3/4" [603mm]
4-5/8" [117mm]
X
X=1-5/8" X 5-3/8" X 5-3/8"
[41mm] [178mm] [178mm]
23-3/4" [603mm]
4-5/8" [117mm]
6"
4-3/4"
X
[152mm]
X=5-3/4" [121mm]
[146mm]
23-3/4" [603mm]
MZ Ceiling Trim
Modular Trim
Type Type
**
With Supporting
Exposed Grid G
Swing Gates
Concealed T G
Slot Grid G
Flange F
Concealed Spline MZ
Metal Pan MZ
FAIL-SAFE
220, 217, 2U15/8
2U3, 2U6, 2U6T8
2BX40, 320, 317
3U15/8, 3BX40
2' X 2' TROFFER
2, 3 OR 4 LAMPS
Vandal Resistant Luminaire
E N E R G Y D A TA
Input Watts:
EB Ballast & STD Lamps
7"
217 (36), 2U1-5/8 (61), 2U3 (72)
2U6 (72), 2U6T8 (61), 317 (52)
3U1-5/8 (91), 417 (63)
ES Ballast & STD Lamps
217 (45), 220 (58)
X
2U1-5/8 (71), 2U3 (86)
2U6 (86), 2U6T8 (71), 317 (68)
3U1-5/8 (108), 417 (90), 420 (116)
Luminaire Efficacy Rating
4-3/4"
LER = FL-57
[121mm]
Catalog Number: 2VRGC-2U6T8ACTF140
Yearly Cost of 1000 lumens,
3000 hrs at .08 KWH = $4.21
Luminaire Efficacy Rating
LER = FL-63
Catalog Number: 2VRGC-2U15/8ACTF140
Yearly Cost of 1000 lumens,
3000 hrs at .08 KWH = $3.81
* Reference the lamp/ballast data in the
Technical Section for spcific lamp/ballast
requirements.
** Consult Pre Sales Technical Support.
ADC041495
04/17/2007 4:29:32 PM
®
Type
Date
2VRGC
420, 417
