Cooper Lighting Fail-Safe FUS16 Specification Sheet

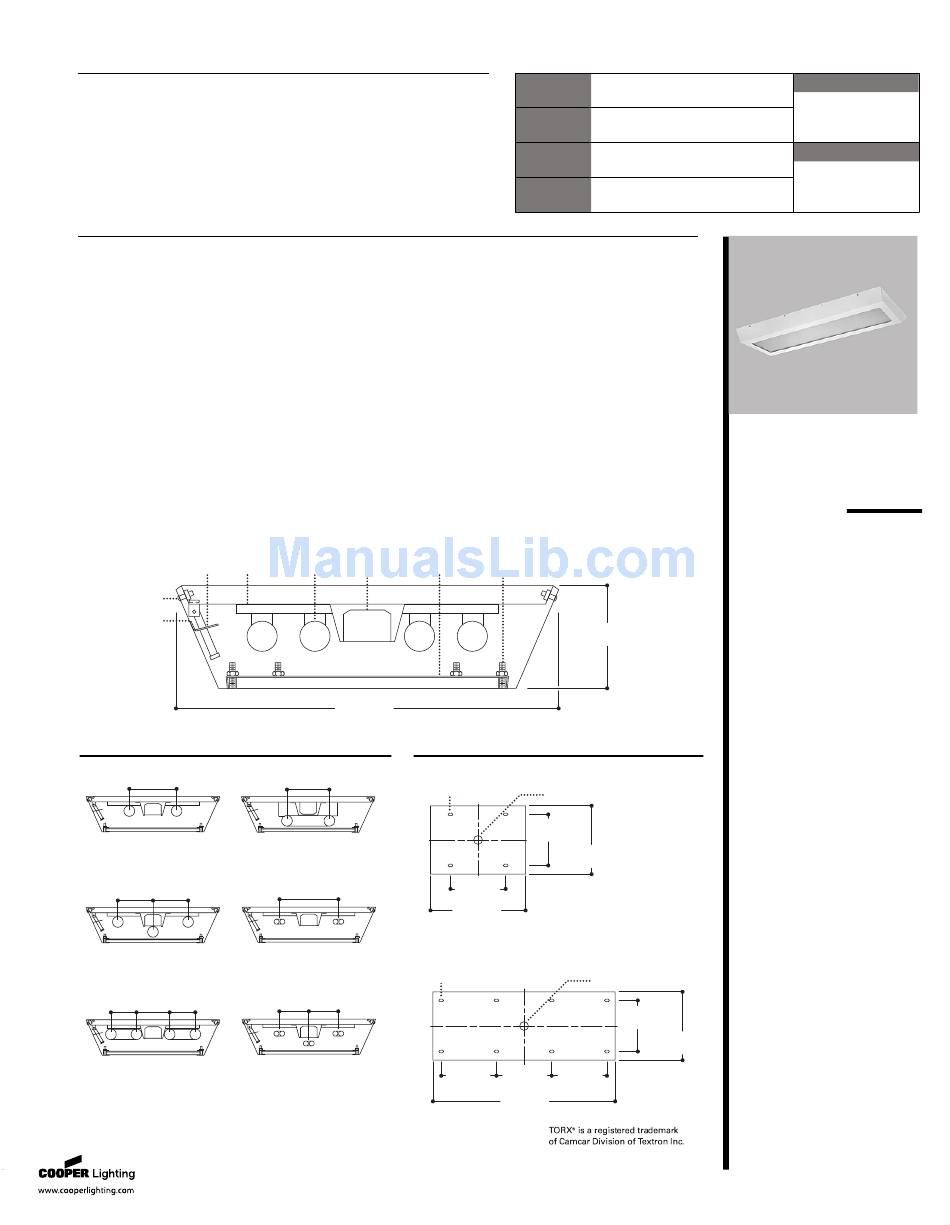

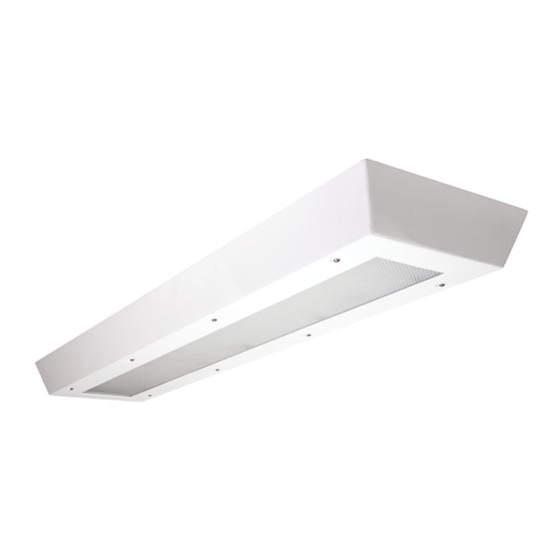

DESCRIPTION
The Fail-Safe FUS Series combines maximum security construction features
with energy saving technology. This surface mounted luminaire utilizes a
one piece clamshell housing, security lensing and tamper resistant fasteners
to maximize impact resistance and prevent contraband concealment and
unauthorized fixture penetration. For ceiling mount. U.L. listed and C.S.A.
certified for damp locations.
The FUS Series is ideal for confinement/security applications. Suitable for
use in inmate cells, psychiatric wards, secure corridors and general
population areas.
SPECIFICATION FEATURES
A ... Lens
(To be specified.) Choice of
prismatic acrylic, prismatic
polycarbonate or prismatic
tempered glass on fixture side,
clear polycarbonate or clear
tempered glass on environmental
side. See Lens Options.
B ... Fasteners
Stainless steel tamper-resistant
TORX® screws with center pin
reject are standard. Allen-head
screws with center pin reject
optional.
C ... Housing
Clamshell design combines
die-formed 12 ga., 14 ga. or 16 ga.
CRS body with continuous welded
and ground ends to form a
F G
B
C
LAMP CONFIGURATIONS
6 11/16"
[170mm]
5" 5"
[127mm] [127mm]
3 5/8" 4 11/16" 3 5/8"
[92mm] [119mm] [92mm]
Specifications and Dimensions subject to change without notice.
Housing Cont.
one-piece, seamless, doorless
housing which maximizes impact
resistance and prevents
contraband concealment and
unauthorized fixture penetration.
Standard white high reflectance
polyester powder coat finish.
Gloss: 85%; Reflectance: 93%;
Hardness: 2H; Salt Spray: 500
Hours.
D ... Lamps
(By Others)
E ... Lens Retention
Lens secured by thru-studs and
vertically adjustable internal CRS
hold-downs.
D H A
19 1/16"
[484mm]
MOUNTING DIMENSIONS
6" (6) 9/16" x 1"
[152mm] [14mm x 25mm]
Mtg. Holes
8 5/16"
[211mm]
(8) 9/16" x 1"
[14mm x 25mm] Mtg. Holes
4 3/16" 4 3/16"
[106mm] [106mm]
Consult your representative for additional options and finishes.
Catalog #
Project
Comments
Prepared by
F ... Hinge
Internal Security Hinge leaves no
exposed parts for weapon
fabrication and facilitates
maintenance.
G ... Backplate
Die-formed CRS backplate forms
an irretrievable blade trap to
prevent contraband concealment
(gauge to match housing.)
H ... Ballast
Standard Class P, CBM/ETL ballast.
Labels
U.L. listed, C.S.A. certified,
standard damp label, optional wet
label.
E
5"
[127mm]
2 1/4" [57mm]
Dia. Access Hole
14"
[356mm]
19 1/16"
[484mm]
15 3/16"
[386mm]
26 5/16"
[668mm]
2 1/4" [57mm]
Dia. Access Hole
[356mm]
15 3/16" 15 3/16" 15 3/16"
[386mm] [386mm] [386mm]
50 1/8"
[1273mm]
FAIL-SAFE
E N E R G Y D ATA
Input Watts:
STD Ballasts & STD Lamps
(2) 20W T12 Fluorescents: 53W
(3) 20W T12 Fluorescents: 85W
(4) 20W T12 Fluorescents: 106W
(2) 40W Biaxial Fluorescents: 82W
(3) 40W Biaxial Fluorescents: 127W
ES Ballasts & STD Lamps
(2) 17W T8 Fluorescents: 45W
(3) 17W T8 Fluorescents: 68W
(4) 17W T8 Fluorescents: 90W
(2) 32W T8 Fluorescents: 71W
(3) 32W T8 Fluorescents: 108W
(4) 32W T8 Fluorescents: 142W
(2) 40W T12 Fluorescents: 86W
(3) 40W T12 Fluorescents: 136W
14"
(4) 40W T12 Fluorescents: 172W
(1) 40W U-Lamp: 50W
19 1/16" (2) 40W U-Lamps: 86W
[484mm]
ES Ballasts & ES Lamps
(2) 40W T12 Fluorescents: 76W
(3) 40W T12 Fluorescents: 120W
(4) 40W T12 Fluorescents: 152W
(1) 40W U-Lamp: 44W
(2) 40W U-Lamps: 76W
Electronic Ballast Data
Consult Factory
03/29/2007 8:58:01 AM
®
Type
Date
FUS16
34W - 160W
Fluorescent
ULTIMAX SURFACE
LUMINAIRE
ADC041625
