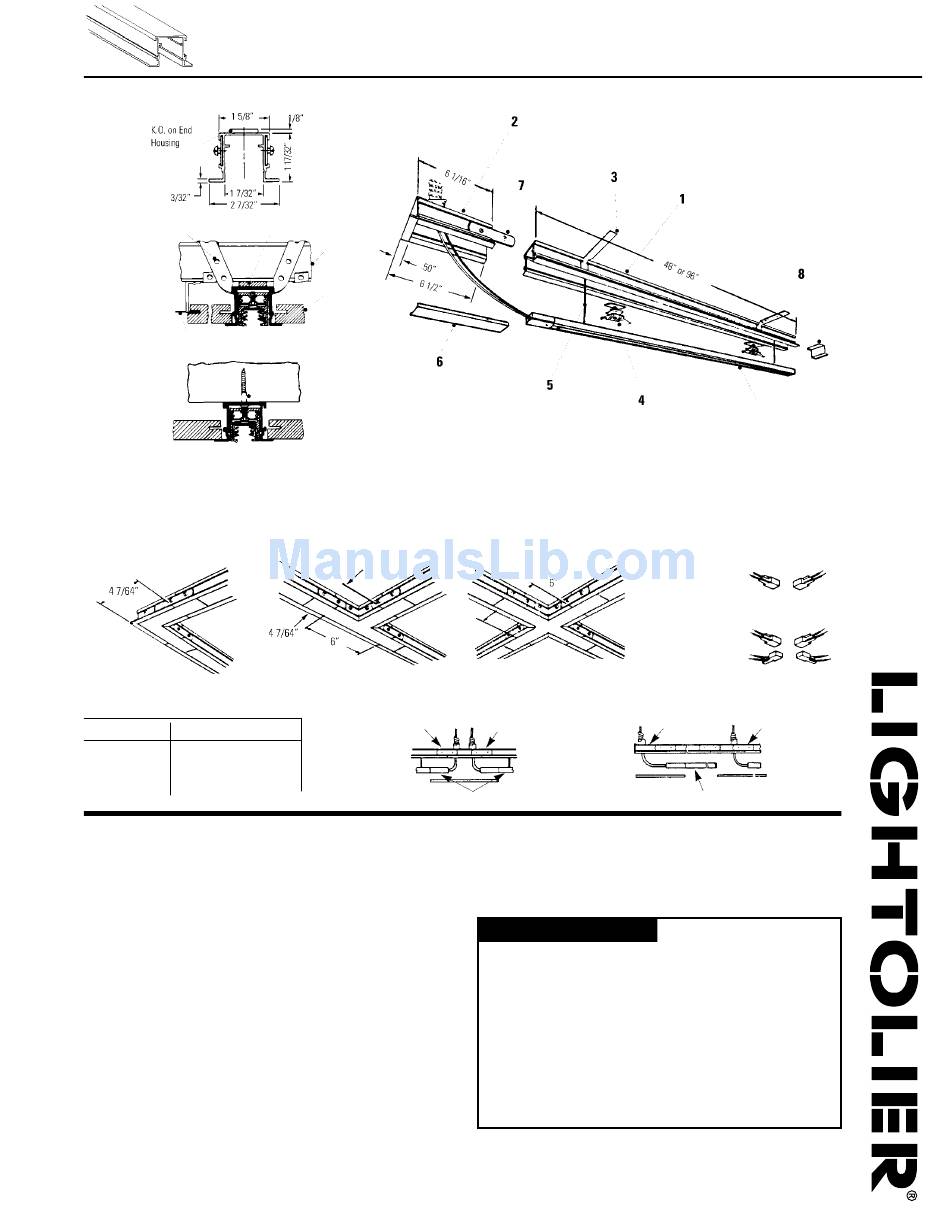

Lathing Tab
Shim as Required
Ceiling Runner
Suspended Tile
Tile or Plaster Board
Patterns with Recessed Track
"L", "T", and "X" Housing/Splice Boxes are used to form patterns with recessed track. 7/8" dia. K.O.'s are provided on top for attaching circuit wiring for power feed.
Auxiliary Electrical Connectors are required with "L", "T" and "X" Housing/Splice Boxes for power feed or power continuity through these Housing/Splice Boxes. Extra End
Caps are provided with Housing/Splice Boxes.
"L" Housing/Splice Box
7690
NOTE: "L", "T" and "X" Connectors (See Specification Sheet 6000) are not used with recessed track.
Catalog No. Description
7515
4' Housing
7516
8' Housing
7517
End Housing/Splice Box
Features
1. Housing: extruded aluminum .062" wall, matte white. Will resist alkali in
concrete for 48 hours while setting.
2. End Housing/Splice Box: extruded aluminum. 062" wall, matte white
(2)7/8" dia. K.O.'s provided for multiple feeds.
3. Lathing Tab: 20 ga. plated steel. Slides to desired position.
4. Mounting Clip: secures track to housing (includes allen wrench).
5. Hanger Chain
6. Splice Box Cover: 26 ga. steel, matte white. Snaps in without tools.
7. Spline
8. End Cap: (2) Supplied with End Housing/Splice Box.
Mechanical
Housings and Splice Boxes are locked securely together with metal
Splines and Screw Fasteners.
Mounting
Lathing Tabs and holes in Recessed Housings are provided for mounting in a
variety of ceilings. Recessed Housings may be installed in concrete.
Carrying
Channel
Kerfed Tile
Housing has Holes for
Mounting Screws.
"T" Housing/Splice Box
7691
End Housing/
Splice Box
Individual Track
Lytespan
®
Track Lighting System
For Basic or Advent Lytespan Track
"X" Housing/Splice Box
7692
Multiple Power Feeds
Housing
Finish
Baked Enamel Paint, Matte White.
Labels
UL; I.B.E.W.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte Thomas Company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902
7515
Recessed Housing
Individual Track Unit
(sold separately)
Auxiliary Electrical
Connector Kits
6464WH (Basic)
6467WH (Advent)
Set of 2 for "L"
Housing/Splice Box
6462WH (Basic)
6465WH (Advent)
Set of 4 for "T" or
"X" Housing/Splice Box
End Housing/
Splice Box
Housing
Individual Track
Type:
