Calculite
Page 1 of 1
3
Recessed Height:
See Reflector Trim
Specification Sheet For
Information
Self-Flanged
Complete Fixture consists of Reflector Trim & Frame-In Kit. Order each separately.
Frame-In Kits Compatible Reflector Trim Series
A400RM
A7053
A7058
A7701
B600RM
B7054
B7705
B7760
B7780
C700RM
C7055
C7709
G410RM
G7057
General Description
Innovative, simple to install non-ic remodeler kit used for installation in both
existing and inaccessible ceilings. A problem solver for old plaster ceilings,
irregular conditions, residential applications (Non-IC), and ceilings up to 2" thick.
Flanged mounting ring attaches to ceiling from below with 3 retaining clips.
Accepts various reflector trims listed above. Lighting characteristics and aper-
ture finishes are the same as the standard downlights (see Lightolier specifica-
tion sheets for trims listed above).
Features
1. Snap-on Die-Cast Aluminum Socket Cup
2. Die-Formed Steel Frame
3. Mounting Frame Retaining Spring Clips
4. Reflector Retaining Spring Clips
5. Nail Pins secure J-Box onto ceiling
6. Thermal Protector meets NEC and UL requirements. Insulation must be kept
3" away from fixture sides and wiring compartments and must not be
placed above fixture in a manner which will entrap heat.
7. Junction Box: Suitable for 90˚C supply wiring connections.
®
Incandescent Recessed Downlighting
2
1
4
"A" Dia.
"B" Dia.
Lamping
A19 100W max.
BR30 85W max. / PAR30 / ER30 75W max.
PAR16 / R20 75W max. / PAR20 50W max.
A19 100W max. / 150W A21 max.
BR30 85W max. / PAR30 75W max.
PAR38 150W / ER30 75W / BR30 85W / BR40/ER40 120 max.
PAR38 150W max.
A21 150W max. / A23 200W max. / PS25 300W max.
PAR38 250W max.
A19 100W max. (horizontal lamping)

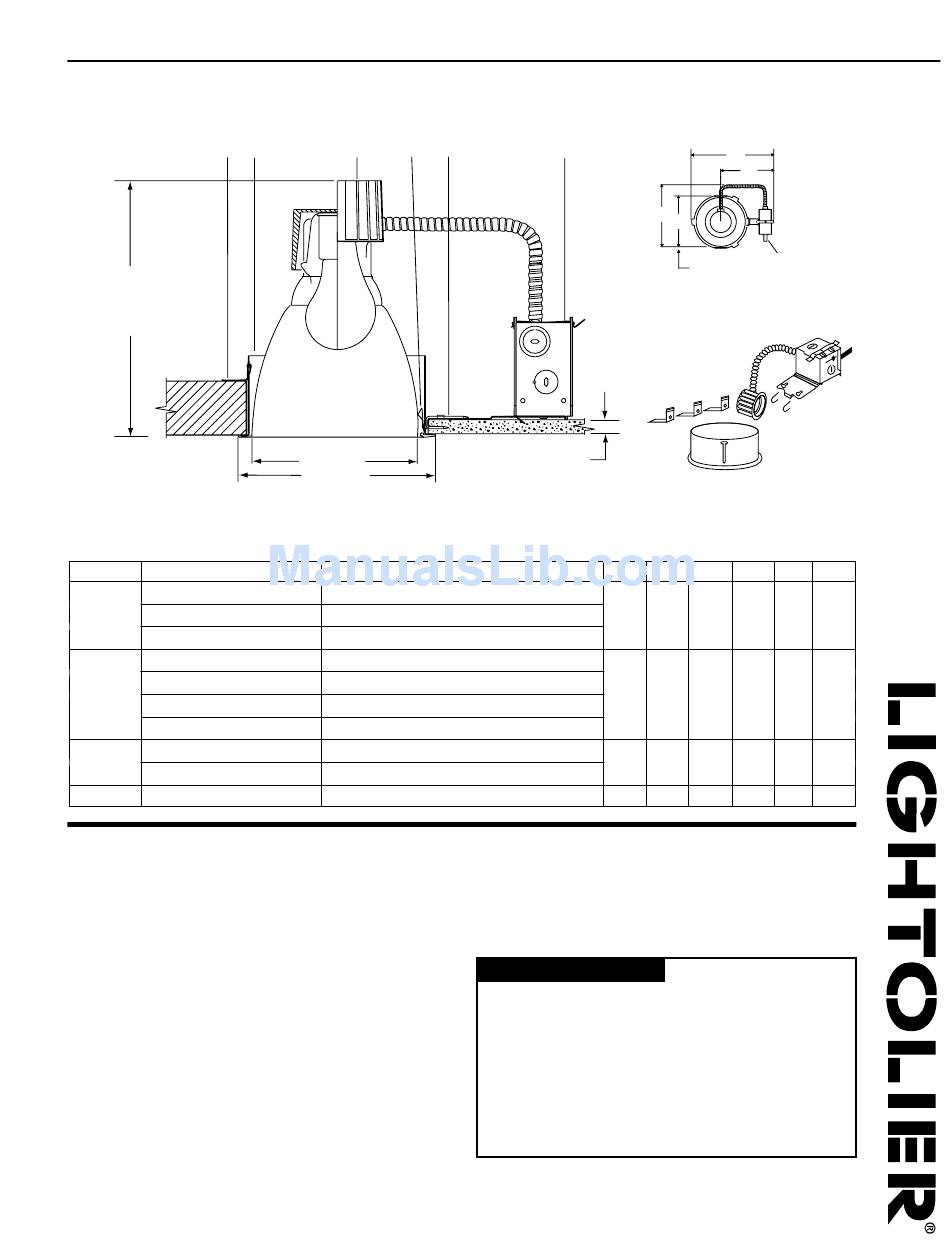

120V Incandescent Remodel Frame-In Kits
5
7
3/8" to 2" Max.
Ceiling Thickness
Molded Trim Ring
A
4 1/2"
6"
7 3/8"
4 1/2"
Labels
UL listed for damp locations, I.B.E.W.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte Thomas Company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2003 Genlyte Thomas Group LLC (Lightolier Division) • C0604
RM-INC
"C"
"D"
Top View
"E"
"F"
6
Ceiling Cutout
Remodel
Frame-In Kit
B
C
D
E
F
5 3/4"
11 7/8"
8 3/8"
7"
5"
7 1/4"
13 7/8" 10 5/8" 8 1/2" 6 1/2"
8 5/8"
16"
12"
10"
7 7/8"
5 3/4"
11 7/8"
8 3/8"
7"
5"
Type:
www.lightolier.com
