Lightolier CL-2 Specification

Page 1 of 2

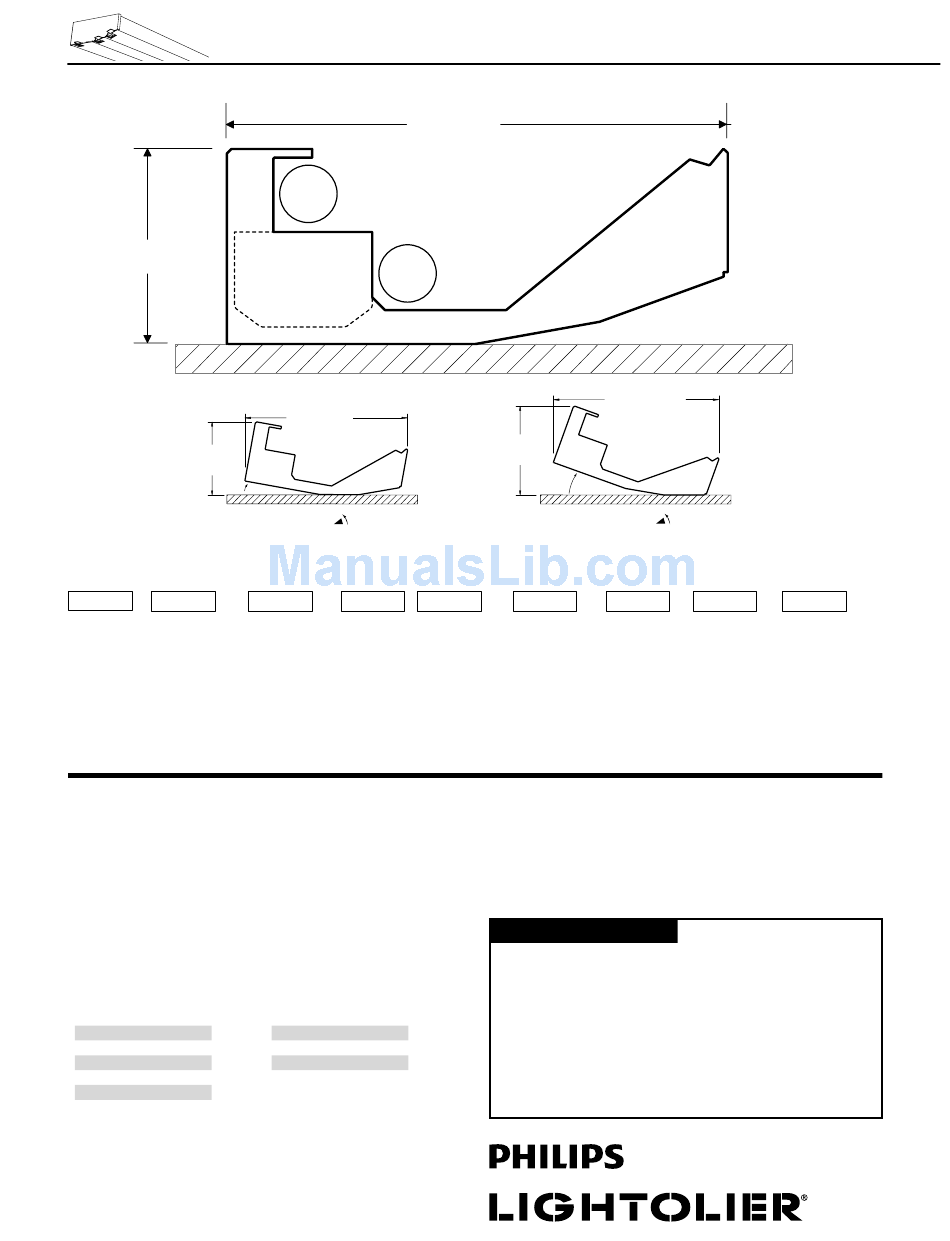

3 3/8"
(8.57cm)
4"
(10.2cm)
10°
Ordering Information
Style Lamps Lower Optics
CL08 T02
T02 = 2-Lamp T8 E = Solid Housing
Dust cover is available:
CL380L240 Dust cover for 2 lamp T8 2 foot luminaire
CL380L340 Dust cover for 2 lamp T8 3 foot luminaire
CL380L440 Dust cover for 2 lamp T8 4 foot luminaire
Features
Housing:
Die-formed 20 gauge cold-rolled steel painted white.
Weight :: 3.0 lb/ft.
Optical System: Constructed of highly specular Miro IV
reflective white 20 gauge steel to produce an asymmetric distribution.
Lamping: Two T8 fluorescent lamps in cross section. 18 watt 2 foot,
32 watt 4 and 8 foot, 25 watt 3 and 6 foot lengths.
Mounting: Fixtures can be screwed down in multiple positions and orientations
to enable precise coordination of optical distributions.
Additional Information
Modules Lengths
Module Nominal Length
2ft 2'0"
3ft 3'0"
4ft 4'0"
6ft 6'0"
8ft 8'0"
