Lightolier C7CW SERIES Installation

READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE
This fixture is intended for installation in accordance with the National Electrical Code and local regulations. To
assure full compliance with local codes and regulations, check with your local electrical inspector before
installation. To prevent electric shock, turn off electricity at fuse box before proceeding.
Retain these instructions for maintenance reference.

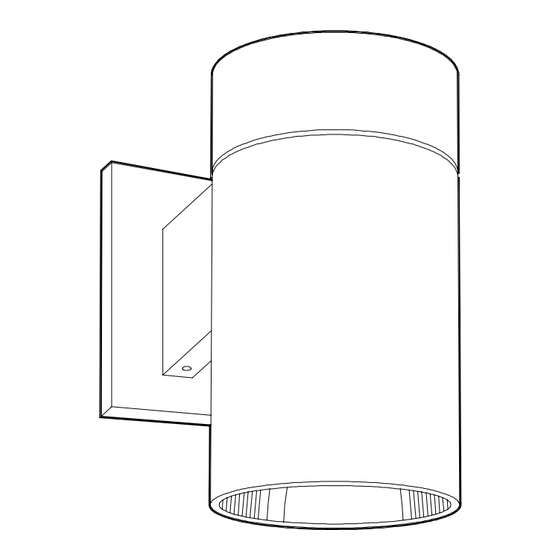

INSTALLATION PROCEDURE FOR: C7CW SERIES 7" DIA. H.I.D. WALL CYLINDER
USED WITH C7E17VM, C7E17OVM, C7P38MH, C7E17PL, C7E17FL SERIES FLANGLESS
WARNING:
USE ONLY REFLECTOR TRIMS PROVIDED BY LIGHTOLIER. USE OF OTHER MANUFACTURERS'
REFLECTOR TRIMS MAY VOID THE UNDERWRITERS LABORATORIES LISTING AND COULD CONSTITUTE A FIRE HAZARD.
CAUTION:
For wet locations, in accordance with Underwriters Laboratories
requirements, a line of caulking compound such as acrylic or silicone must be
placed around the perimeter of CANOPY to seal water away from the
outlet box and back openings. Use only compatible REFLECTOR TRIMS
rated for use in Wet Locations.
INSTALLATION OF WALL CYLINDER TO OUTLET BOX
(Fig. 1, 2, 3, & 4)
STEP 1:
Attach MOUNTING PLATE to outlet box with OUTLET BOX
SCREWS.
STEP 2:
Pass supply leads through opening in CANOPY and CLEAT.
STEP 3:
Attach CANOPY and CLEAT to MOUNTING PLATE with (2) ¼-20
BOLTS (provided).
STEP 4:
Make Connections. Bare Copper and/or green insulation wire(s)
must be connected to SUPPLY GROUND. Connect WHITE BALLAST LEAD
to NEUTRAL (WHITE) SUPPLY LEAD. Connect BLACK BALLAST LEAD to
HOT SUPPLY LEAD. Use wire nuts (local hardware items).
STEP 5:
Install SET SCREWS loosely. Push excess supply leads back into
outlet box. Place cylinder over CLEAT and tighten (2) SET SCREWS.
INSTALLATION OF WALL CYLINDER TO POST OR OTHER
VERTICAL SURFACE MOUNTING (Fig. 2, 3 & 4)
1. CLEAT can also be mounted directly to any flat surface such as
MULLION. In this case, use of CANOPY is optional. Bring supply
leads through CLEAT and install CLEAT to wall. For wet locations, in
accordance with Underwriters Laboratories requirements, a line of
caulking compound such as acrylic or silicone must be placed around
the perimeter of EXTRUDED ARM to seal water away from the
wireway and back openings.
2.
Proceed with Step 4 and 5 above.
INSTALLATION OF REFLECTOR TRIM TO CYLINDER (Fig. 4)
Follow installation instructions in Reflector Trim Instruction Sheet.
CAUTION:
DO NOT ENERGIZE THE LAMP UNTIL
REFLECTOR TRIM IS COMPLETELY INSTALLED.
REFLECTOR TRIM (ORDER SEPARATELY)
INSTRUCTION SHEET NO.
A0604
OUTLET BOX SCREWS
FIG. 1
FIG. 3
FIG. 4
A
631 Airport Road, Fall River, MA 02720
IS:C7CW
Page 1 of 2
MOUNTING PLATE
CANOPY
GASKET
1/4-20 BOLTS
CLEAT
MULLION
CLEAT
FIG. 2
COMPANY
